C-8 Barcode Reader
C.2 2-D Barcode Reader (Take DS6707 as
an example)

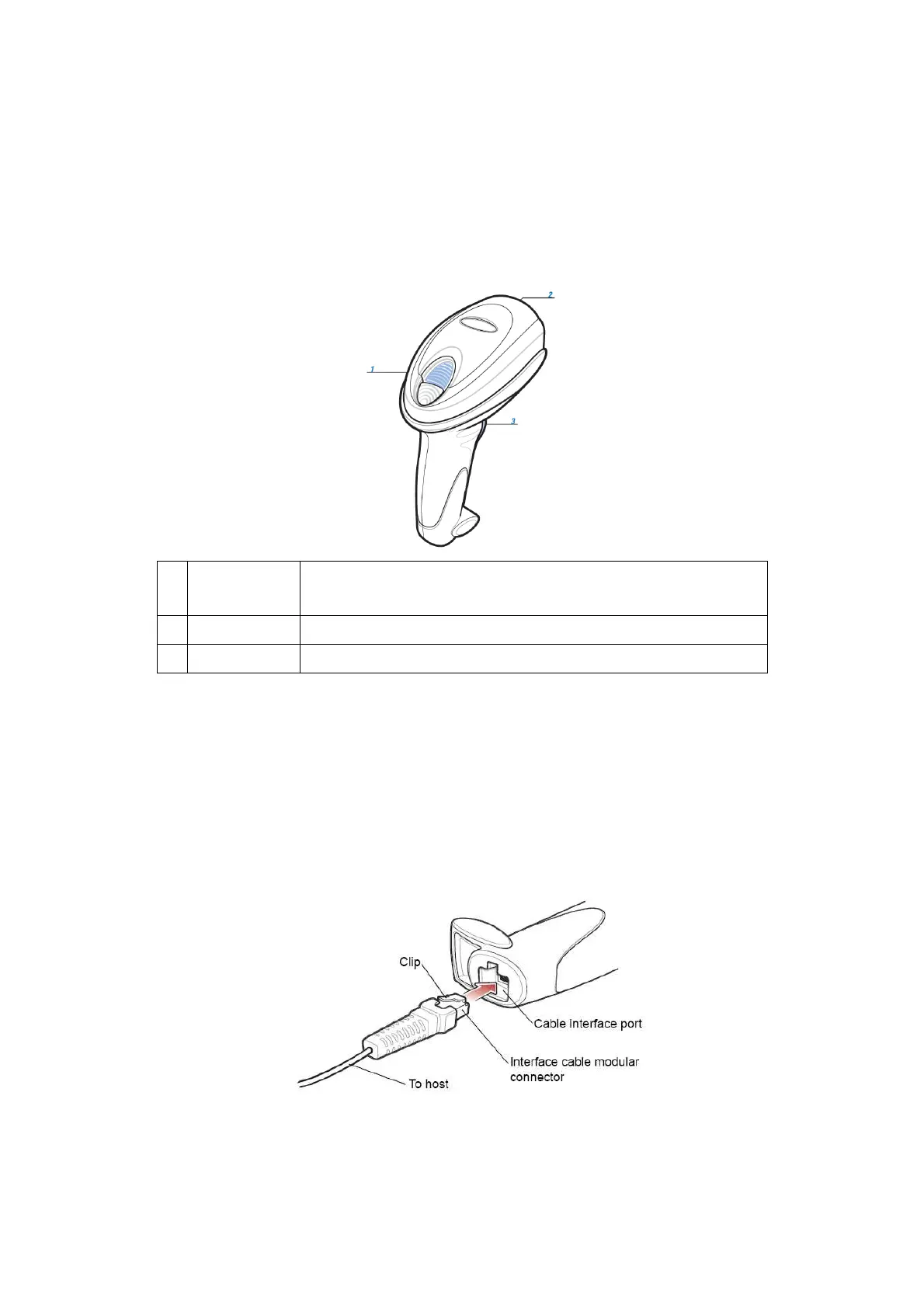

C.2.1 Overview
1.
LED Green: A barcode was successfully decoded.
Red: A data transmission error or reader malfunction occurred.
2.
Scan window
Scan the barcode.
3.
Trigger Press to decode
C.2.2 Setting Up the Digital Imager Reader
C.2.2.1 Installing the Interface Cable
1. Plug the interface cable modular connector into the cable interface port on the bottom
of the reader handle and ensure the connector is properly secure.
2. Connect the other end of the interface cable to the host
To Next Page
