PROTOCOL-SPECIFIC INFORMATION
132
7) The task summary will list the interface card as the device to register. Click “Next”.
8) “You have successfully completed the EDS Wizard”. Click “Finish”.
9) The interface card is now available as a module.
10) Right click on the 1756-ENBT/A node under the “I/O Configuration” in the controller organizer view
and choose “New Module…”
11) Find the interface card in the “Select Module” dialog box as shown in Figure 34.

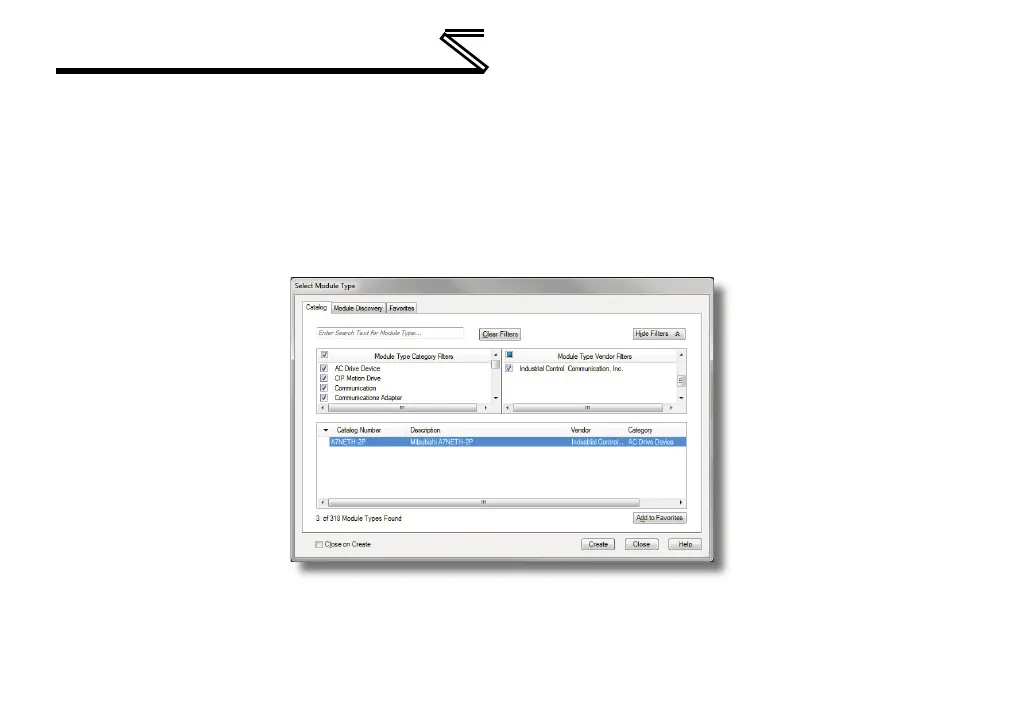

Figure 34: Adding a New Interface Card Module

Mitsubishi 700 Series Specifications

General

Control Method	Vector Control
Overload Capacity	150% of rated current for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication Options	RS-485, Profibus, Ethernet
Output Power Range	0.4 kW to 630 kW
Cooling Method	Forced air cooling (fan) (Varies by model)
Operating Temperature	-10 to +50°C (Varies by model, may be derated at higher temperatures)
Storage Temperature	-20 to +65°C
Humidity	95% RH or less (non-condensing)
Altitude	Up to 1000 m above sea level (Derating may be required above 1000 m)
Enclosure Rating	IP20
Model	FR-A700, FR-F700, FR-E700, FR-D700, FR-S700
