15.3.3.3.

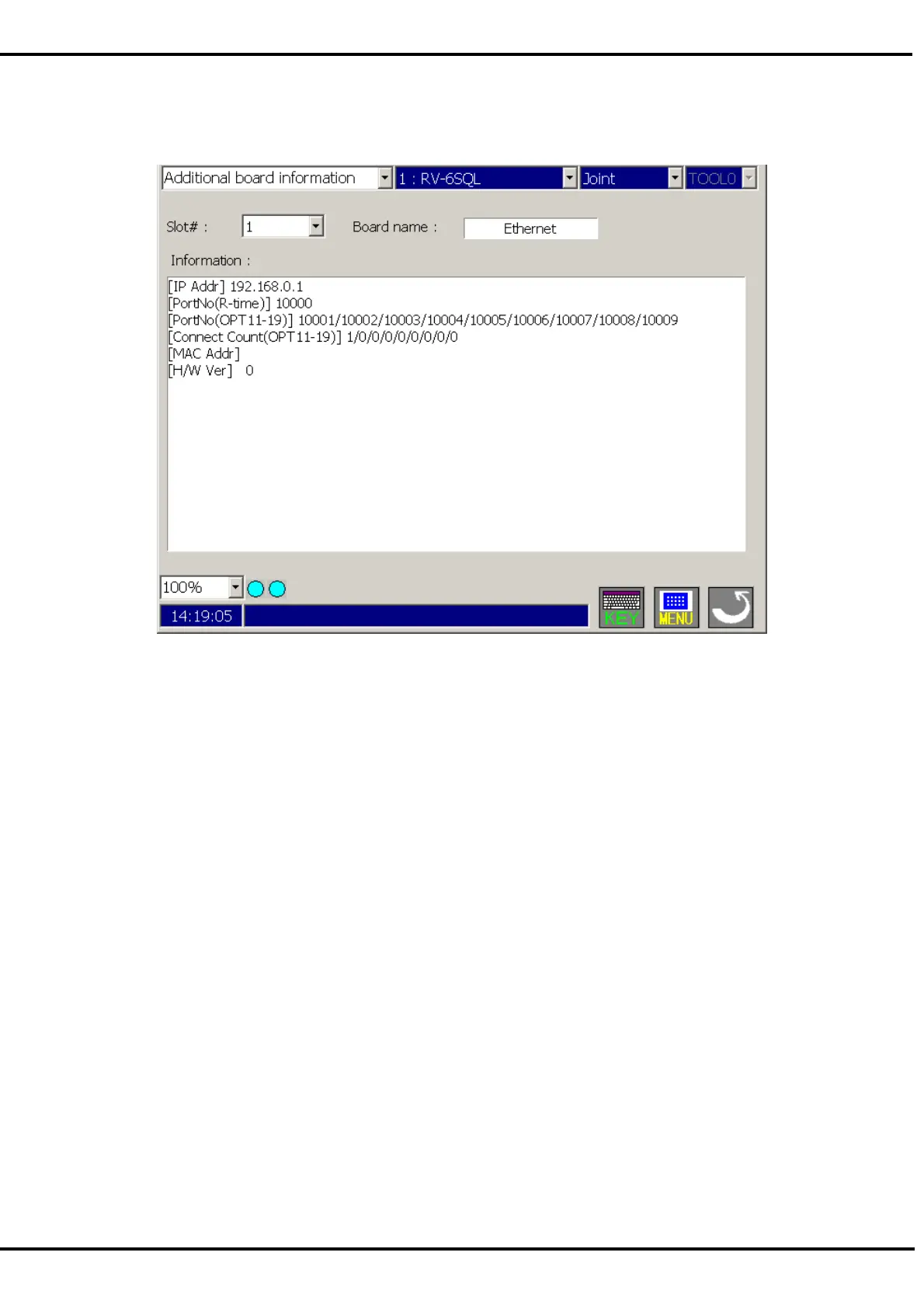

Additional board information
Information on the option card mounted on
the robot controller can
be confirmed.
