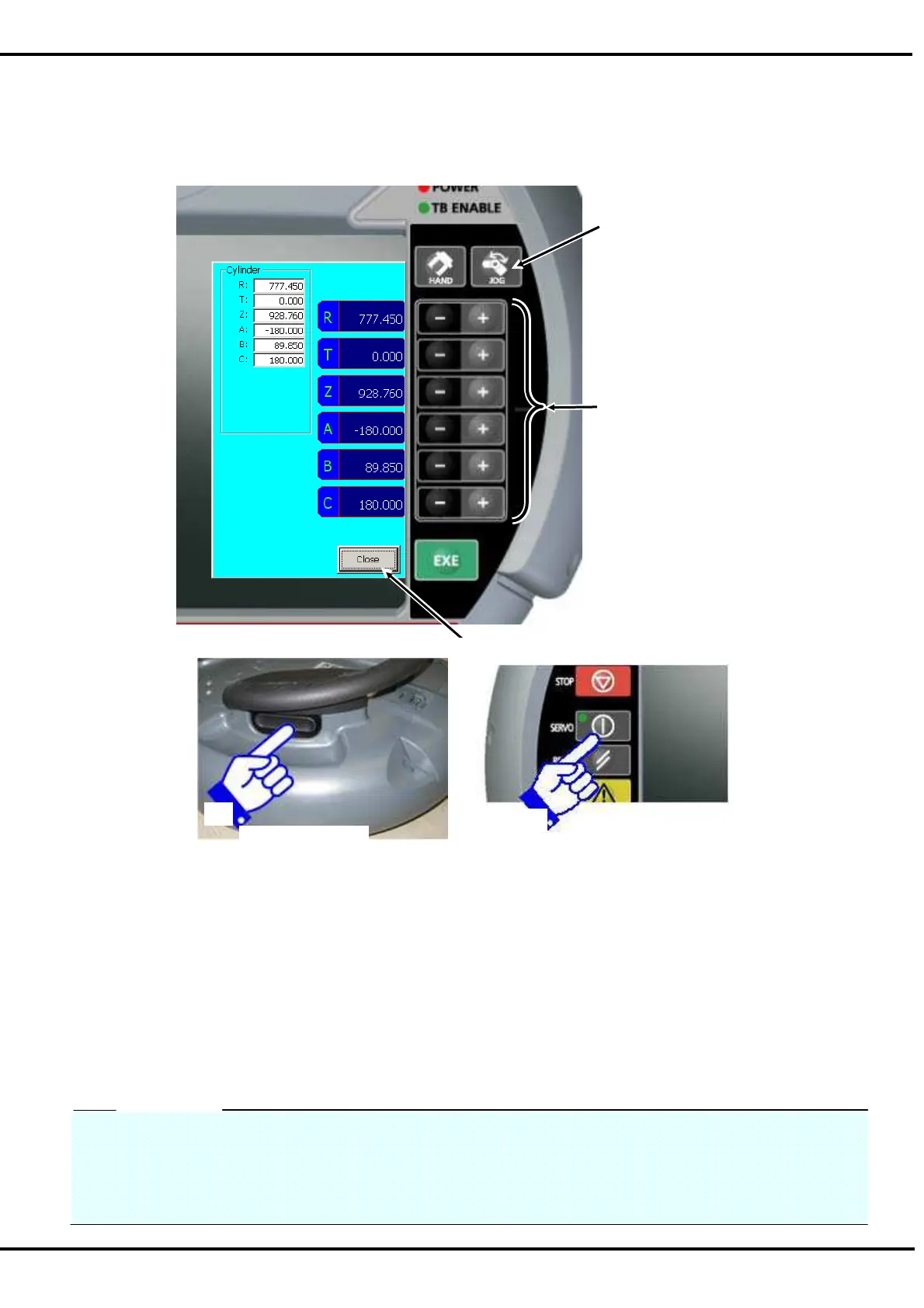

9.9. Cylinder jog operation
Push the [TEACH] switch and enable the T/B. The LED (white) lights up.
Push the [JOG] button (<a>) of T/B and display the JOG operation screen.
Select jog mode (Cylinder).
Jogging movement is in the servo power supply ON state, and execute jog feeding by pushing the button of
each axis (<b>), continuing pushing the enable switch of T/B. (<c>)
By pushing in the enable switch still more strongly during jog feeding, or detaching, the servo power supply can
be turned off and can stop the robot.
The servo will turn ON when the [SERVO] button (<d>) pushed, in the condition that the enable switch is
pushed. When the servo turns on, LED (green) of the [SERVO] button lights up.
If the button corresponding to the axis to move is pushed, only while pushing, the robot will move.
If it finishes, tap the [Close] button (<e>) of the T/B screen and close the JOG operation screen.
<d>
<c>
<a>
<b>
<e>
The enable switch is in two right and left on the back of T/B.
The servo-on state will be maintained if keeping pushing one of the enable switches.
Advice
