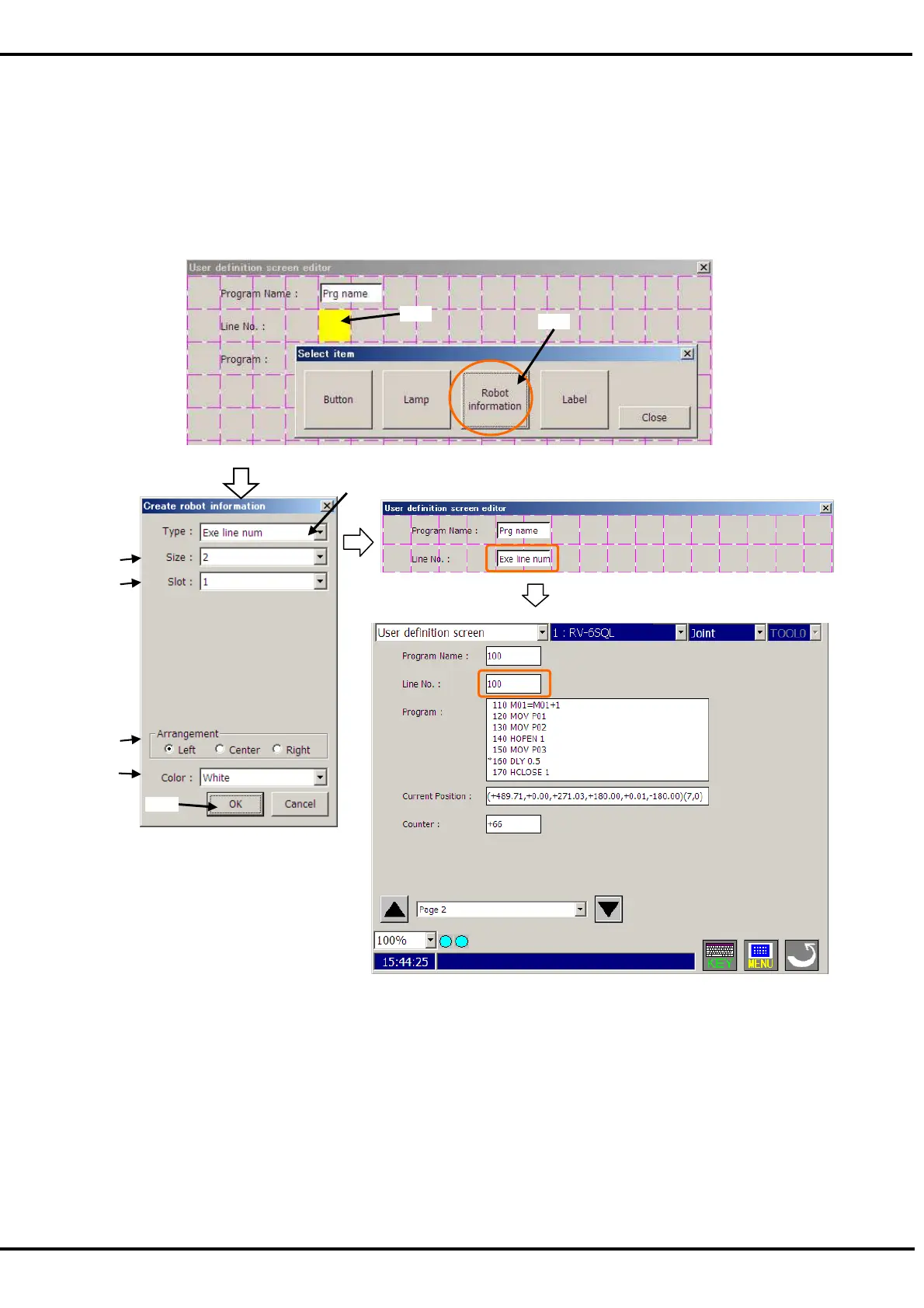

19.1.5.6. Execution line number of program
The line number of program being executed is displayed.
(1) Tap the position (block) in which execution line number is displayed (<a>). Left side of the box is arranged in
this position.
(2) After "Select item" window is displayed, tap [Robot information] button (<b>).
(3) Select "Exe line num" (<c>) as the type on “Create robot information” window.
(4) After setting the information of execution line number, tap [OK] button (<d>).
<1> Size : Set the width of box in which execution line number is displayed. The value
from 1 to 16 can be set.
<2> Slot : Select task slot number for which the program is executed.
The range of slot number that can be set is different according to the system
that uses it.
<3> Arrangement : Select the position in which execution line number is arranged.
<4> Color : Select the background color of the area where execution line number is
displayed.
<a>
<b>
<c>
<d>
<1>
<2>
<4>
<3>
When User definition screen is shown
