11.3.2. Edit of position data for SQ Direct Function
The procedure of direct input of the numerical value is shown.

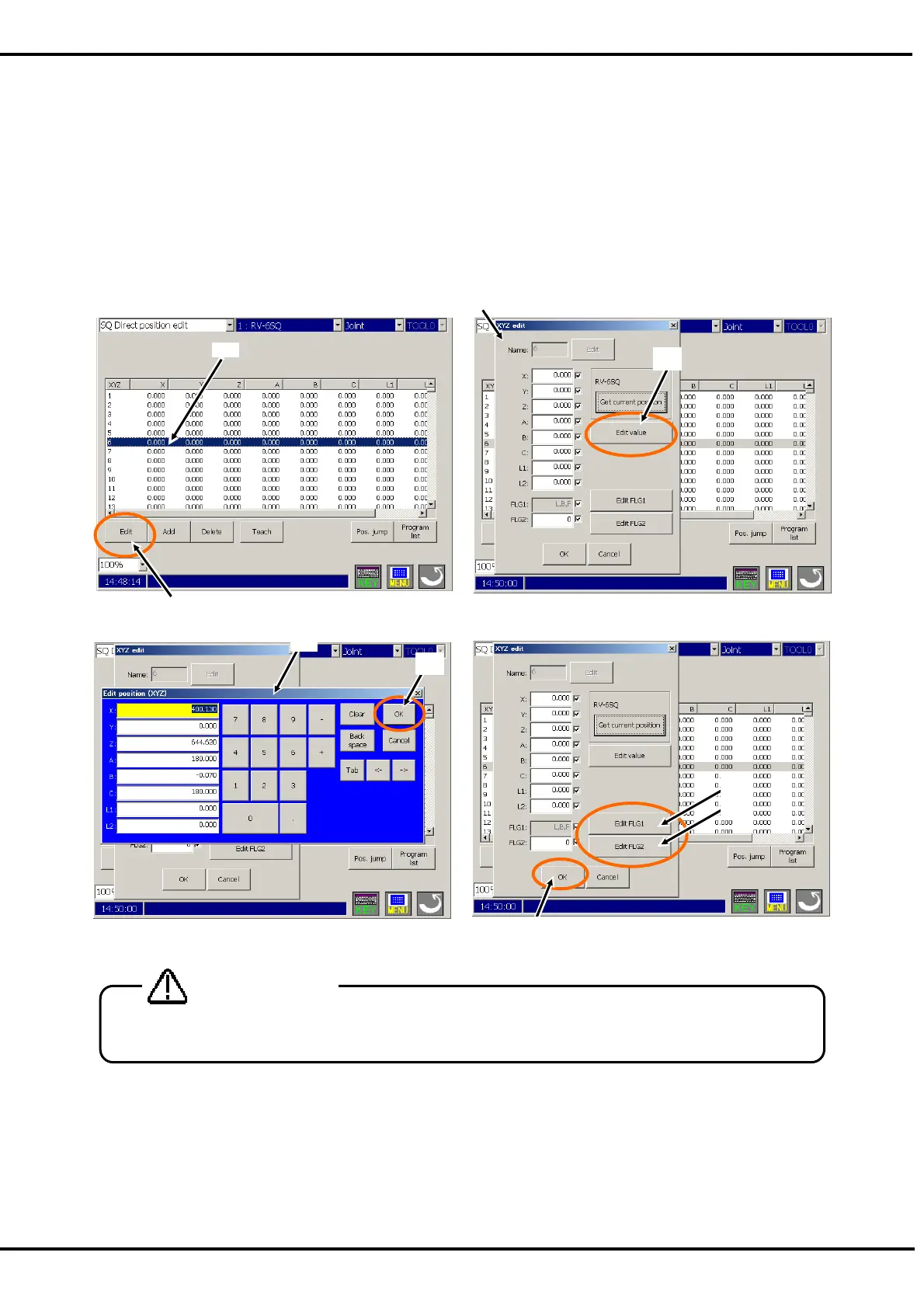

1) Select the position data to edit (<a>) and tap the [Edit] button (<b>). The data edit screen is displayed. (<c>)
2) Tap the [Edit value] button (<d>). The data input screen is displayed. (<e>)
3) The data is inputted into each coordinate value, tap the [OK] key (<f>), and finish the data input.
4) The structure flag can be edited by the [Edit FLG1] button (<g>). The multi-rotation flag can be edited by the
[Edit FLG2] button (<h>).
5) Tap the [OK] button (<i>) if edit of all the data is completed. The selected position data is registered to the
controller.
When the [OK] button of the data edit screen is tapped, the selected position data is written to the
controller.
