127
16.4.1.

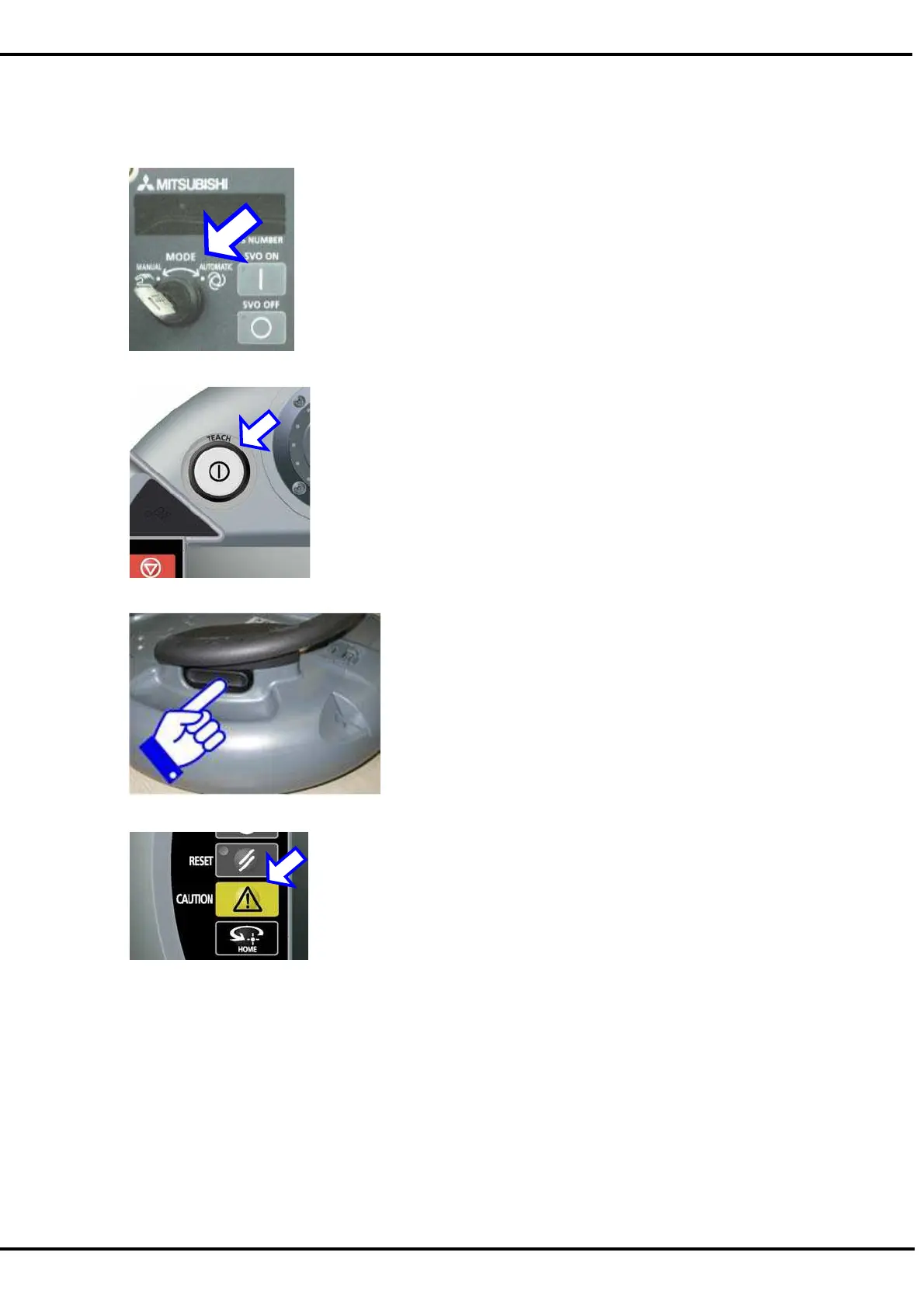

Preparation for releasing the brakes
Before releasing the brakes, it is nece
ssary to do the following operation.
1.
The MODE switch is set to MANUAL.
2.
[TEACH] button is set to ON.
3.
Push the enable switch.
4.
Press the CAUTION button. Another pe
rson
supports the Robot arm which rele
ases brake.
138
