159
17.4.9.

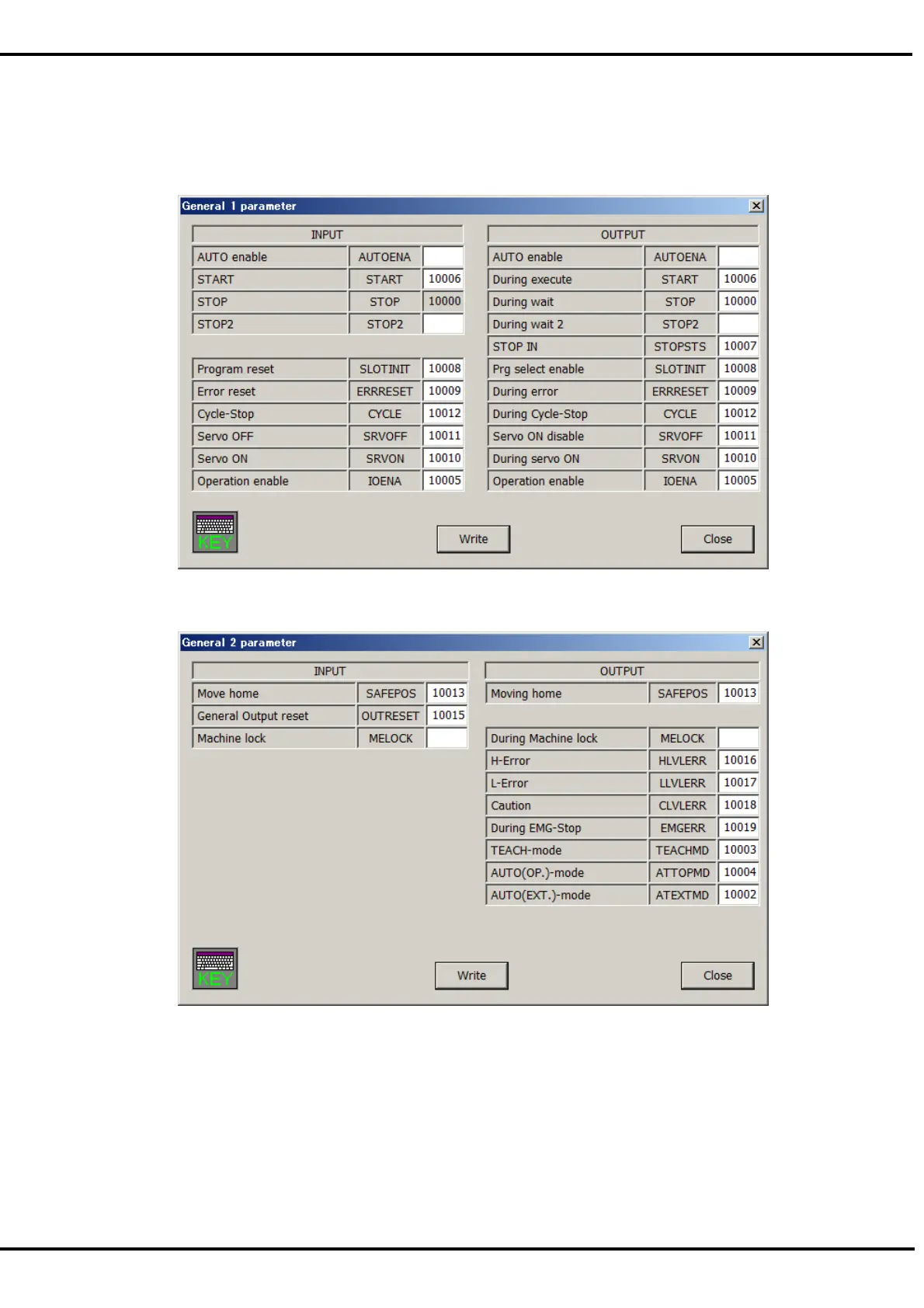

Dedicated input / output signals assignment
Assign signal numbers to
functions in order to
per
form the remote ope
rations to execute and stop
robot
programs, and display/ope
rate the execution progress
information and servo power sup
ply status, etc.
17.4.9.1.
General 1
17.4.9.2.
General 2
170
172
