157
17.4.7.
Slot table

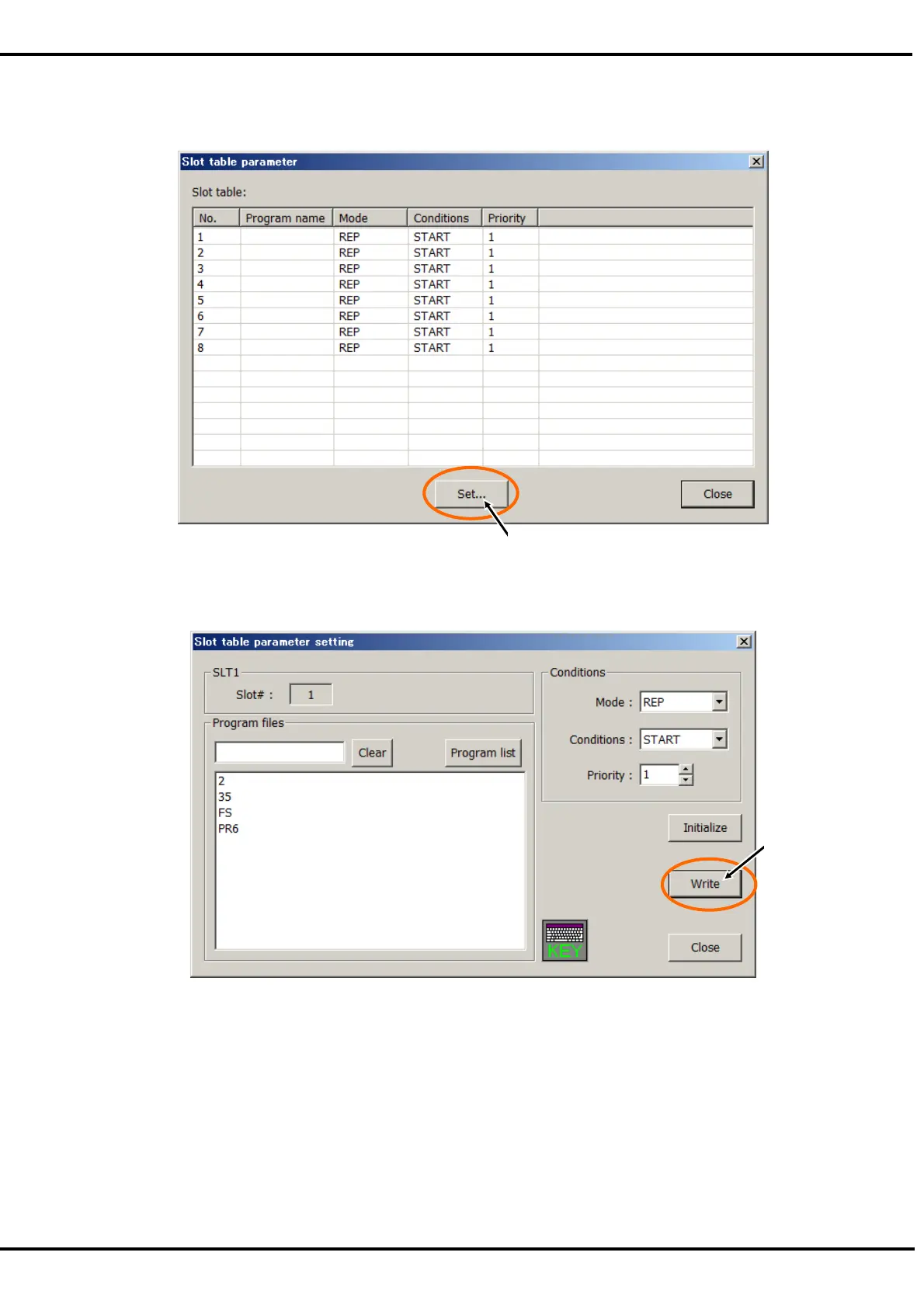

Set the operating conditions of each task slot during
multi-task operation.
Select the task slot number you are ch
anging and tap the [Set...] button. (<a>)
When the modification wi
ndow appears, set the pro
gra
m name, operating conditions, startup conditions and
task priority, and then tap [Write] button. (<b
>)
<a>
<b>
168
170
