63

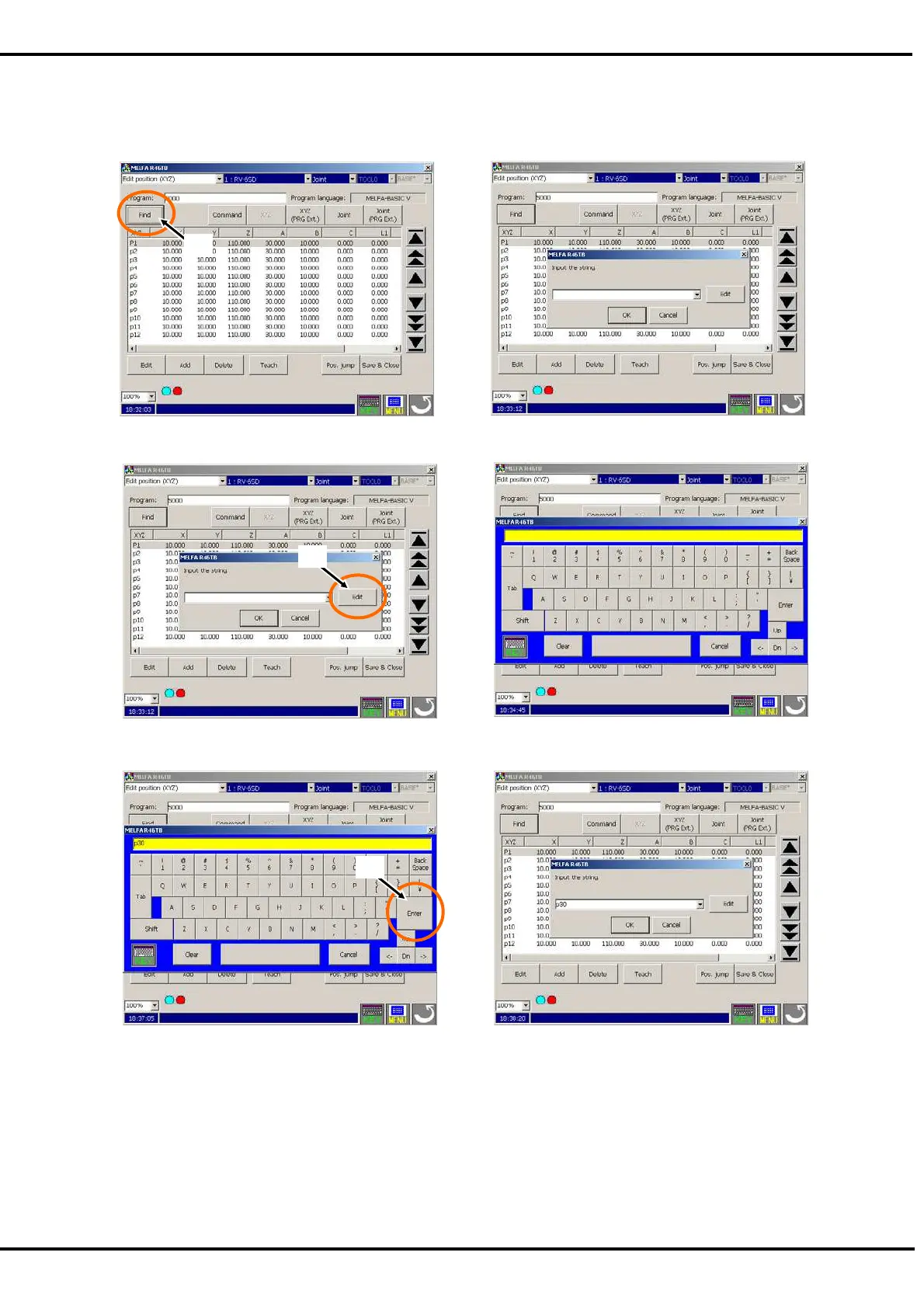

11.2.6.
Find
The procedure of finding t
he position dat
a is shown.
1)
T
ap the [Find] button. (<a>) The variabl
e name input screen is displ
ayed.
2)
T
ap the [Edit] button. (<b>) The
string inp
ut screen is displayed.
3)
The variable name to find is inputted, tap the [Enter] button (<c>), and finish the string input.
<b>
<a>
<c>
74
76
