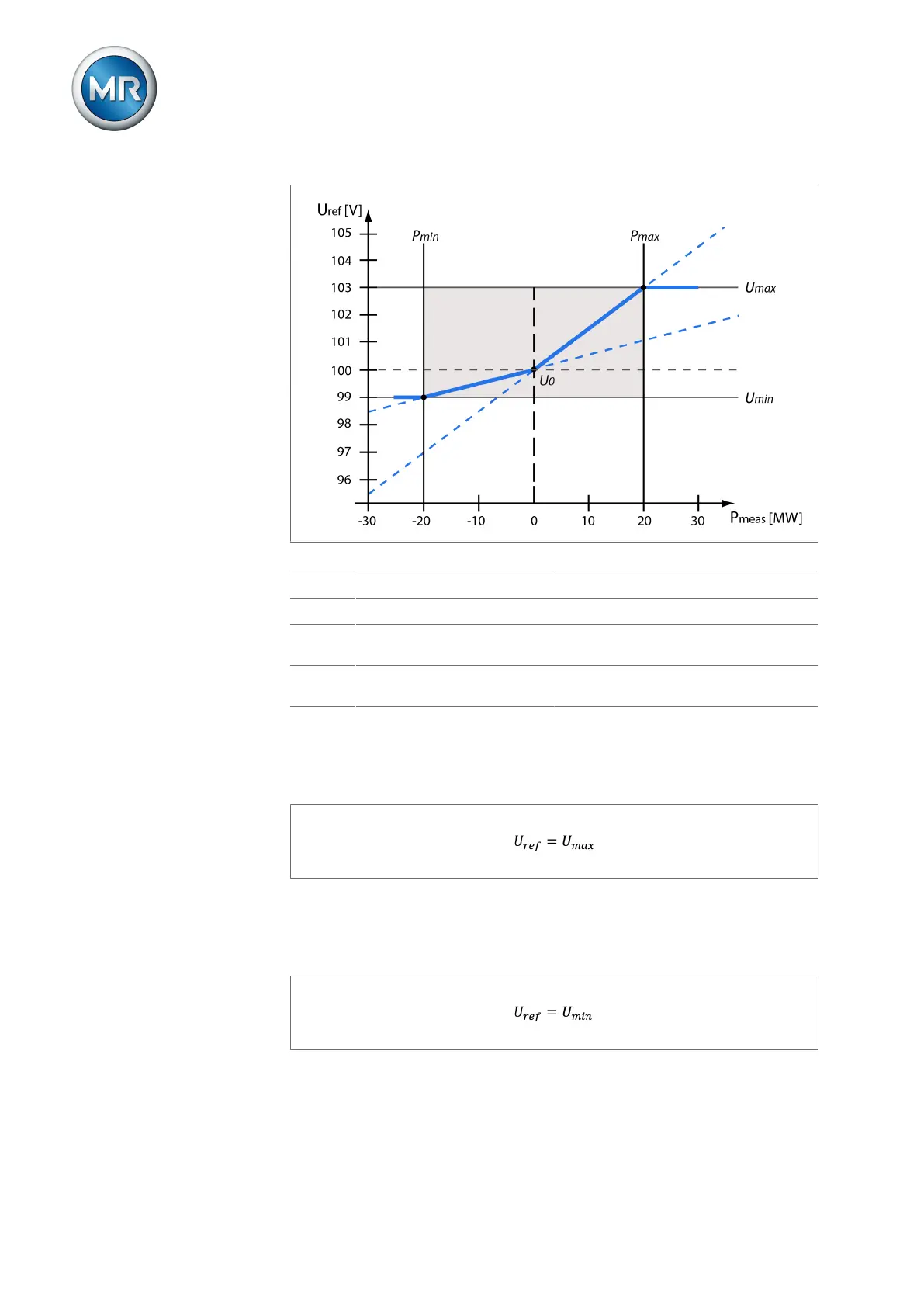

Figure89: Active power-dependent adjustment of desired voltage value
U
ref
Desired value U
min
Minimum desired value
P
meas
Measured active power U
max
Maximum desired value
P
min
Active power at minimum de-
sired value
U
0
Set desired value when mea-
sured active power = 0
P
max
Active power at maximum de-
sired value
Response to active power P
max
being exceeded
If the measured active power P
meas
exceeds the set parameter P
max
, the value
U
max
is adopted as the desired value.
Response to value falling below active power P
min
If the measured active power P
meas
falls below the set parameter P
min
, the
value U
min
is adopted as the desired value.
