5.6.2 Information about connecting serial interfaces RS232 and RS485
NOTICE
Damage to the device!
Using the wrong data cable may damage the device.
► Only use data cables which comply with the description below.
RS232 (D-SUB 9-pole)
For connecting the device via the RS232 interface (COM2), use a data cable
with the following structure:

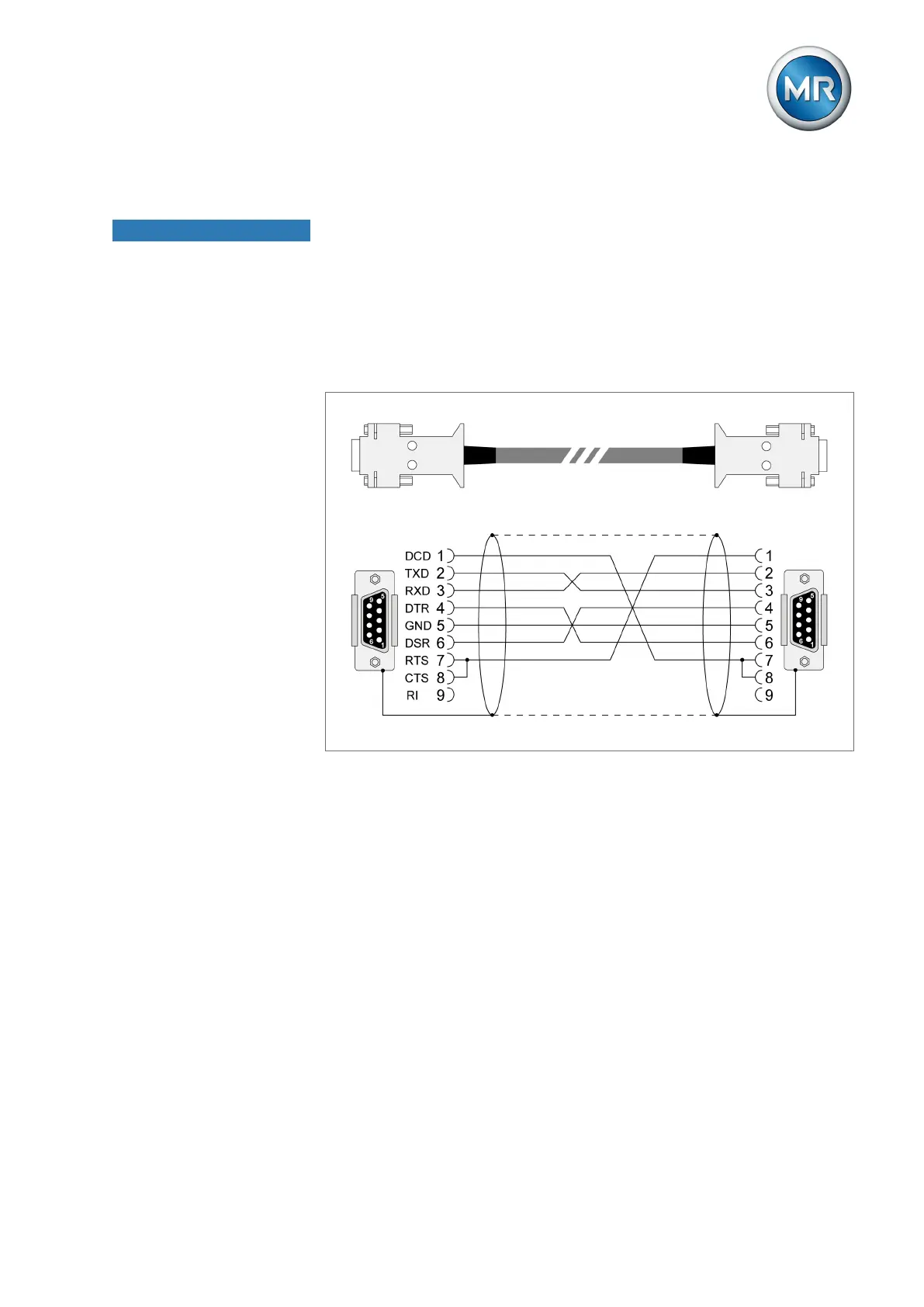

Figure41: RS232 data cable (9-pole)
