If a value is identified as being "invalid", this value is displayed in red. If you
have assigned a function to the sensor, the function value is also displayed.

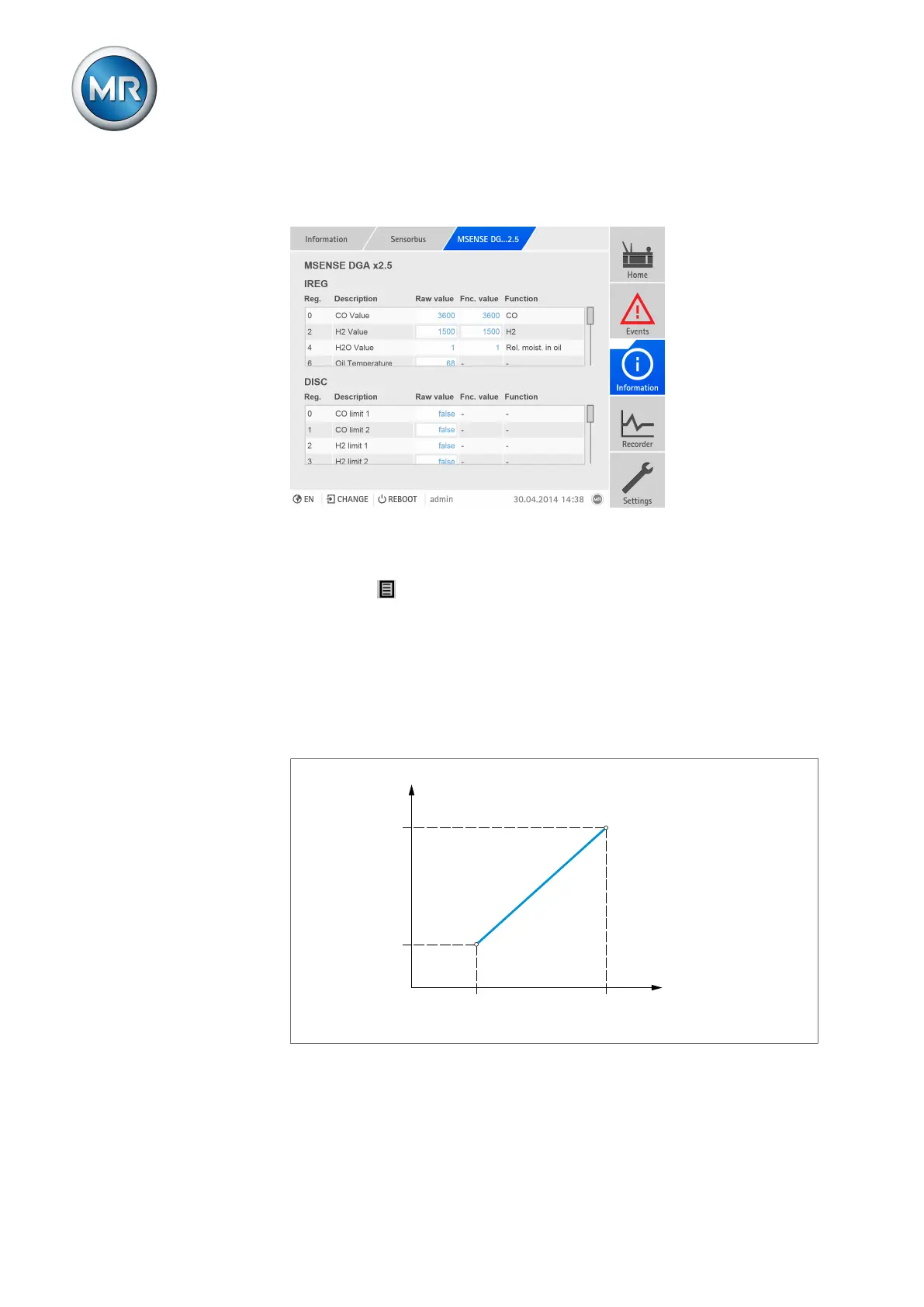

Figure175: Detailed information
To display the detailed information, proceed as follows:
► Press the button.
7.17 Configuring analog inputs and outputs (optional)
You can flexibly configure the device's analog inputs and outputs and assign
device functions.
The device supports analog sensors with linear characteristic curves and
only outputs analog signals with linear characteristic curves.
Max.
Min.
Measured variable
Max.Min. Analog signal
Figure176: Example: analog signal with linear characteristic curve
