MR ETOS IM - Device Design

4 Product description
Maschinenfabrik Reinhausen GmbH 2019 295163667/06 EN ETOS
®
IM
– Monitoring the change in capacitance C1
– Monitoring the change in the dissipation factor tanδ
– 3-phase reference system (e.g. voltage transformer)
– Compensation for temperature fluctuations
– Compensation for the effects of weather
– Compensation for voltage fluctuations
– Compensation for grid asymmetry
4.4 Design
Depending on the order, the device is either designed as a 19-inch plug-in
housing or supplied as individual components for assembly on a cap rail.
The individual device assemblies are described in the following section.

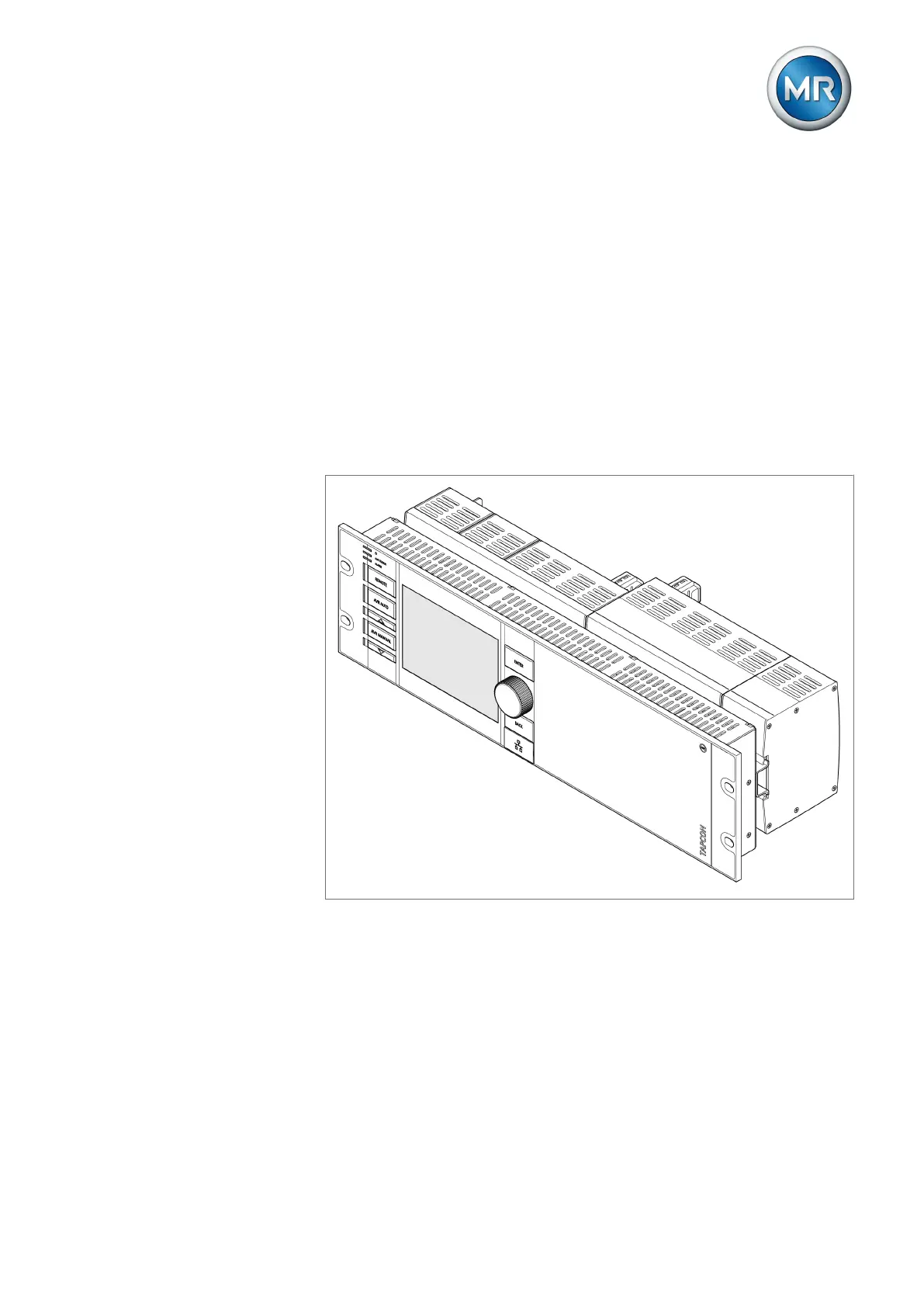

Figure5: 19-inch plug-in housing
