7.8.10 Monitoring the gas volume of the Buchholz relay (OLTC)
When you record the gas volume of the Buchholz relay of the on-load tap-
changer, you can set 2 limit values for the gas volume. If the on-load tap-
changer has multiple columns, you can set 2 limit values for each column. If
the measured gas volume is greater than the limit value > or >>, the device
triggers an event message.

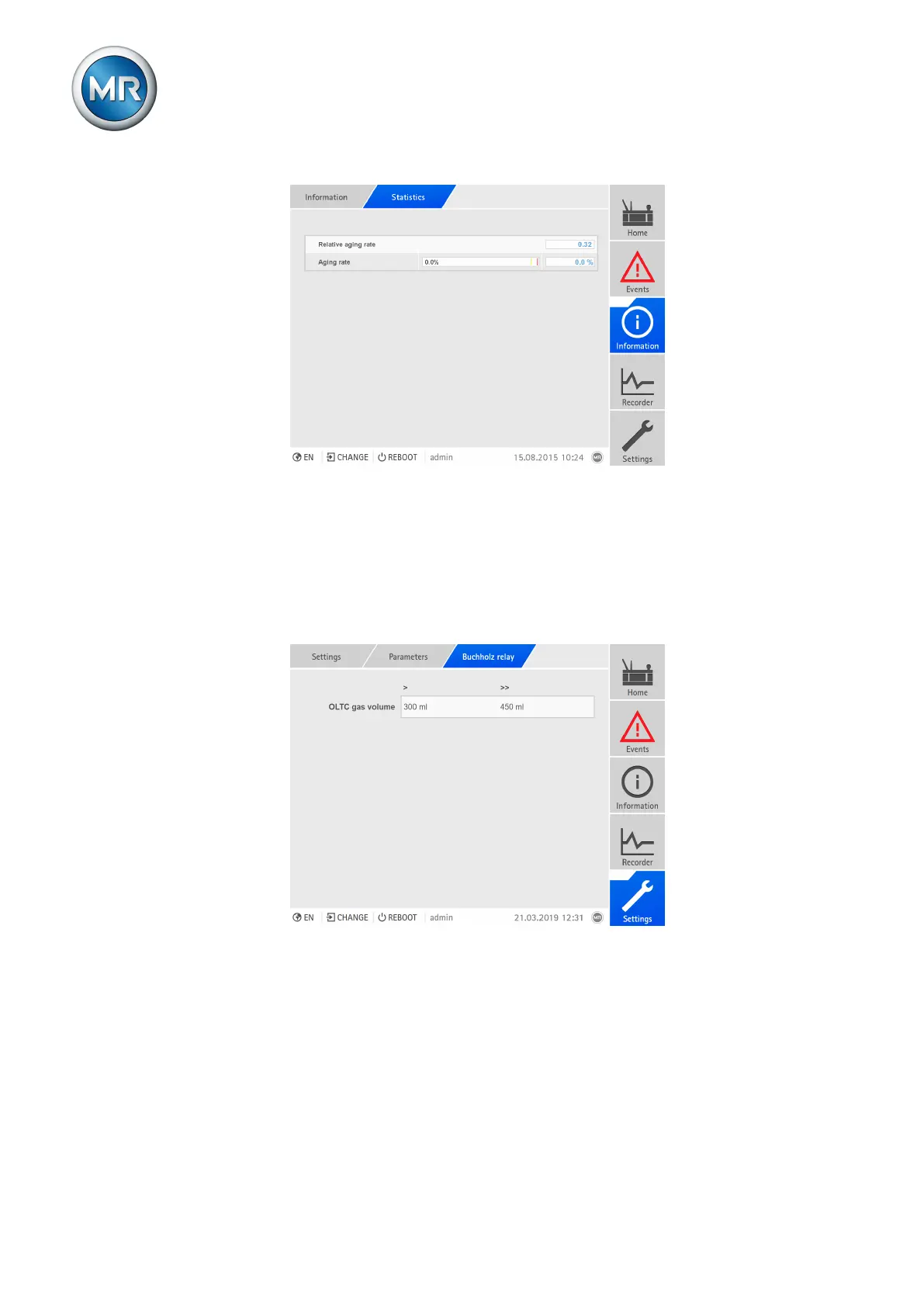

Figure114: Limit values for the gas volume of the Buchholz relay of the on-load tap-changer
To set the limit values, proceed as follows:
1. Go to Settings > Parameters > On-load tap-changer > Buchholz relay.
2. Select the desired parameter.
3. Set the desired parameter.
4. Press the Accept button to save the modified parameter.
