MR ETOS IM - Wiring the CPU Assembly

5 Mounting
Maschinenfabrik Reinhausen GmbH 2019 655163667/06 EN ETOS
®
IM
5.6.7 Wiring the CPU assembly
1. Connect the ETH2.1 or ETH2.2 (optional) interface to a PC in accor-
dance with the connection diagram to access the web-based visualization.

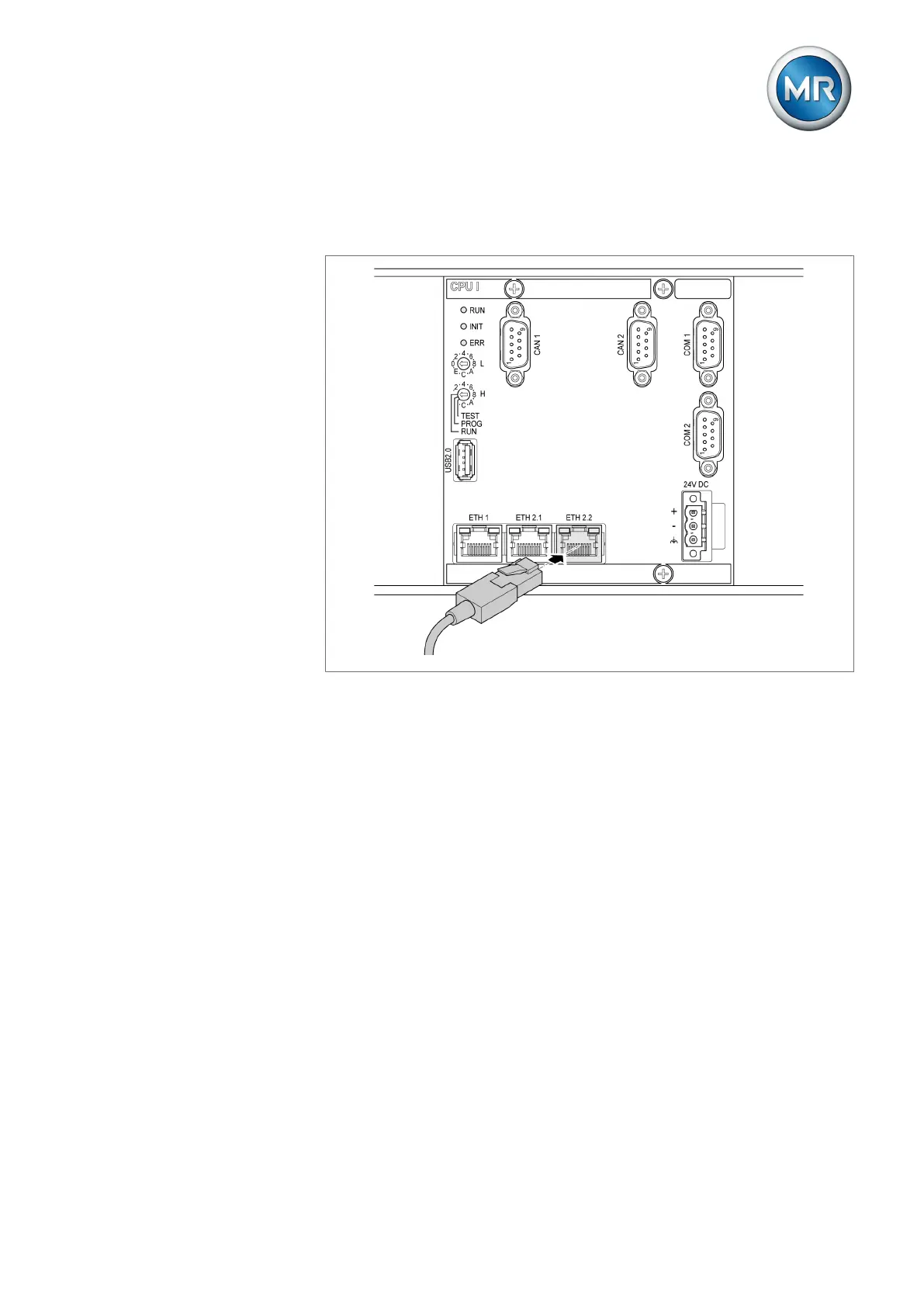

Figure48: Connection to a PC via Ethernet interface
