4.4.4 Voltage measurement and current measurement
The UI 1 assembly is used for measuring 1-phase voltage and current.

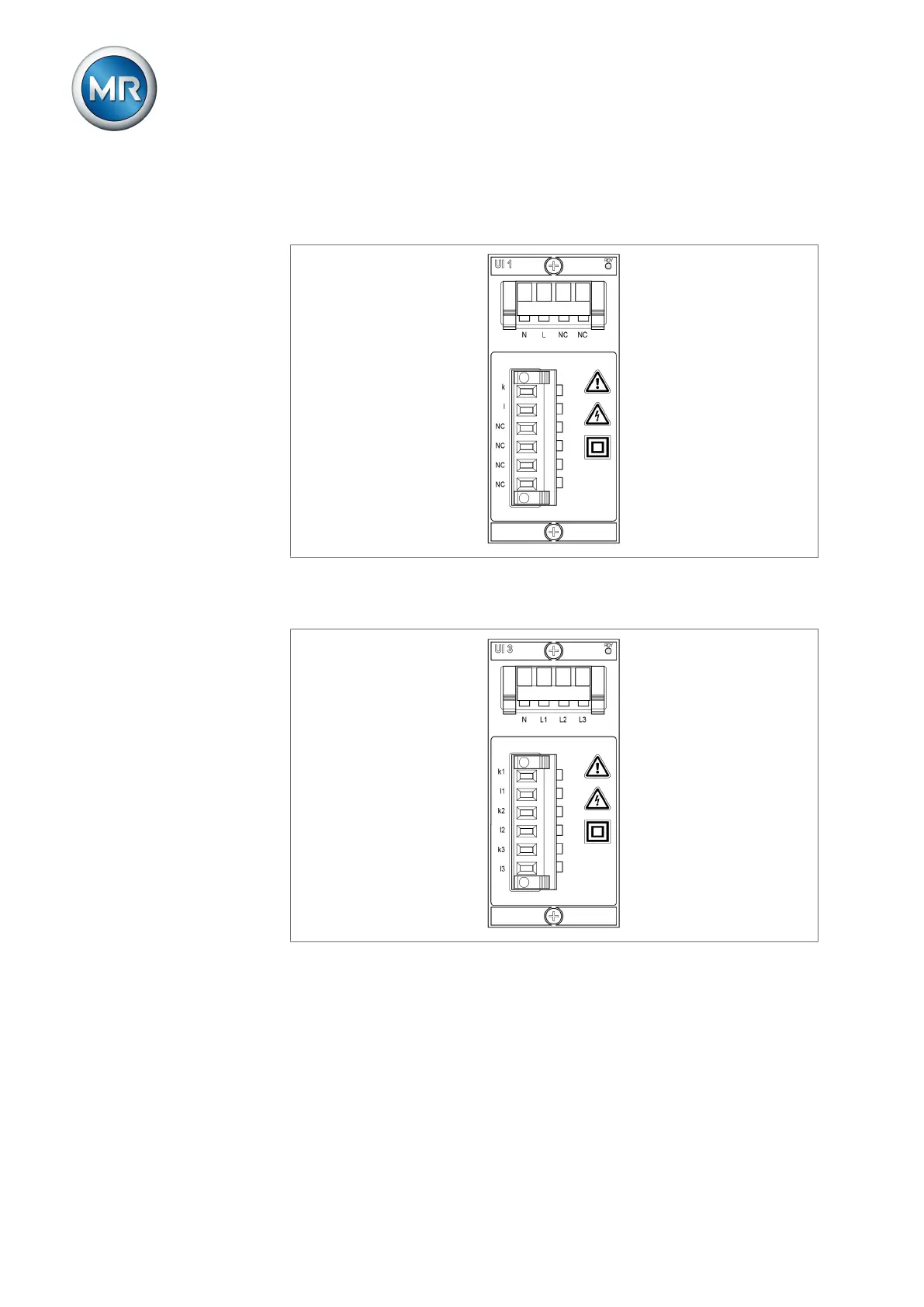

Figure9: UI 1 assembly
The UI 3 assembly is used for measuring 3-phase voltage and current.
Figure10: UI 3 assembly
