2. Insert and fasten the plug into the respective "24V DC" slot

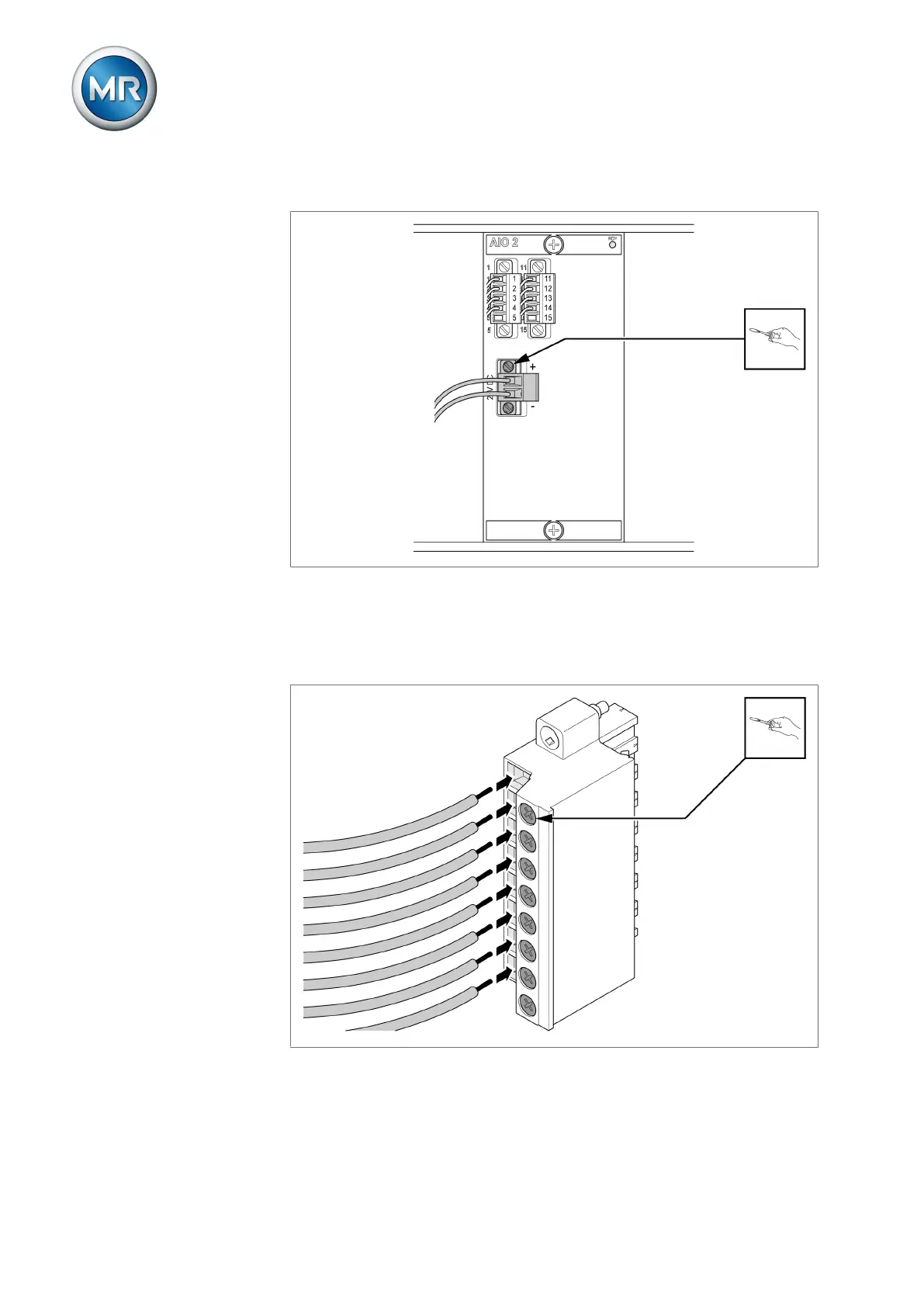

Figure63: Fastening the "24V DC" plug
5.6.10 Wiring the DIO assembly
1. Guide the leads into the plug terminal in accordance with the supplied
connection diagram and fasten them using a screwdriver.
Figure64: Inserting the leads
