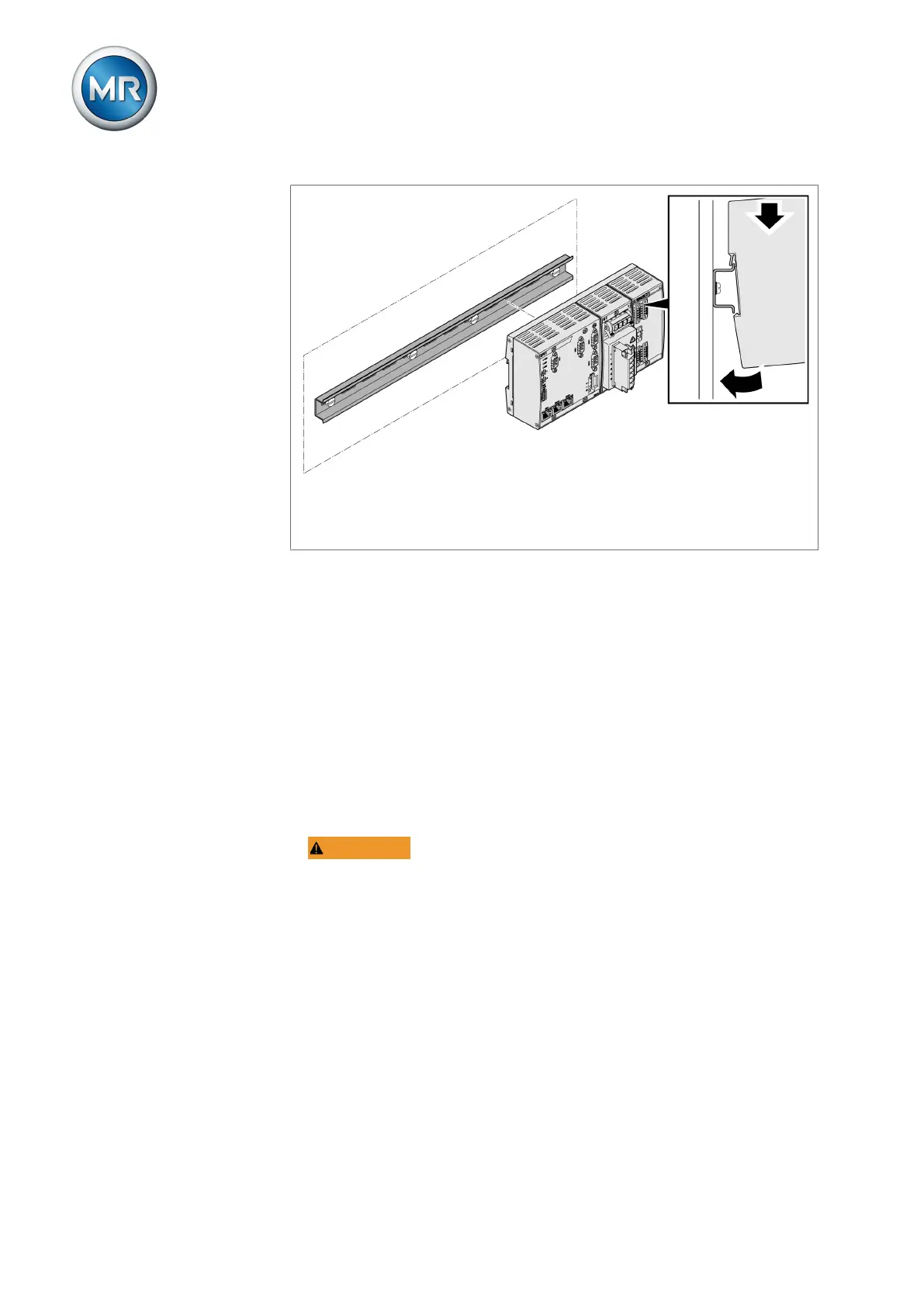

Figure39: Engaging the bus rails
5.5.3 Installing the assembly at a distance on the cap rail
As an option, the device can have the following assemblies that must be
mounted at a distance on the cap rail:
▪ DIO 28-15
▪ DIO 42-20
▪ MC 2-2
▪ SW 3-3
▪ G1 (PULS)
ü Cap rail fastened to the rear panel of the cabinet [►Section 5.5.1, Page
54].
► WARNING! A faulty connection to the protective ground can lead to
an electric shock in the event of faults. Hook the assembly onto the cap
rail at the specified location, ensuring that the assembly engages cor-
rectly.
