5 Mounting
Maschinenfabrik Reinhausen GmbH 201954 5163667/06 ENETOS
®
IM

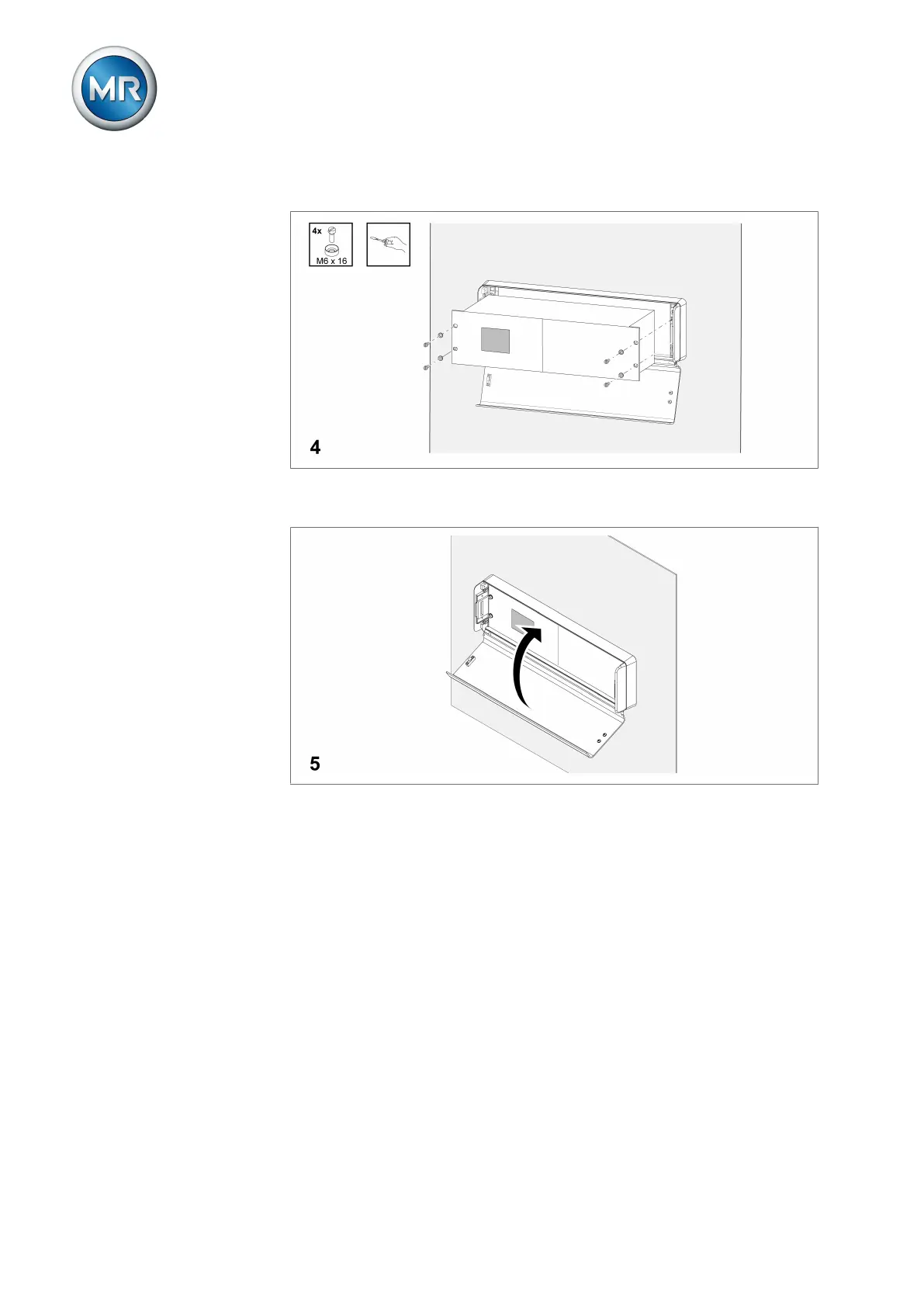

4. Slide device into flush control panel frame and secure.
Figure36: Securing device
5. Close cover of flush control panel frame.
Figure37: Closing cover
5.5 Installing the individual components on a cap rail
5.5.1 Fastening the cap rail
The cap rail is required to mount a bus bar or a device's remote assemblies
in a control cabinet. Only use the following types of cap rails in accordance
with EN 60715:
▪ TH 35-7.5
▪ TH 35-15
The cap rail may not be painted or lacquered.
