MR ETOS IM - Displaying the Measured Values of the Buchholz Relay (Optional)

7 Operation
Maschinenfabrik Reinhausen GmbH 2019176 5163667/06 ENETOS
®
IM

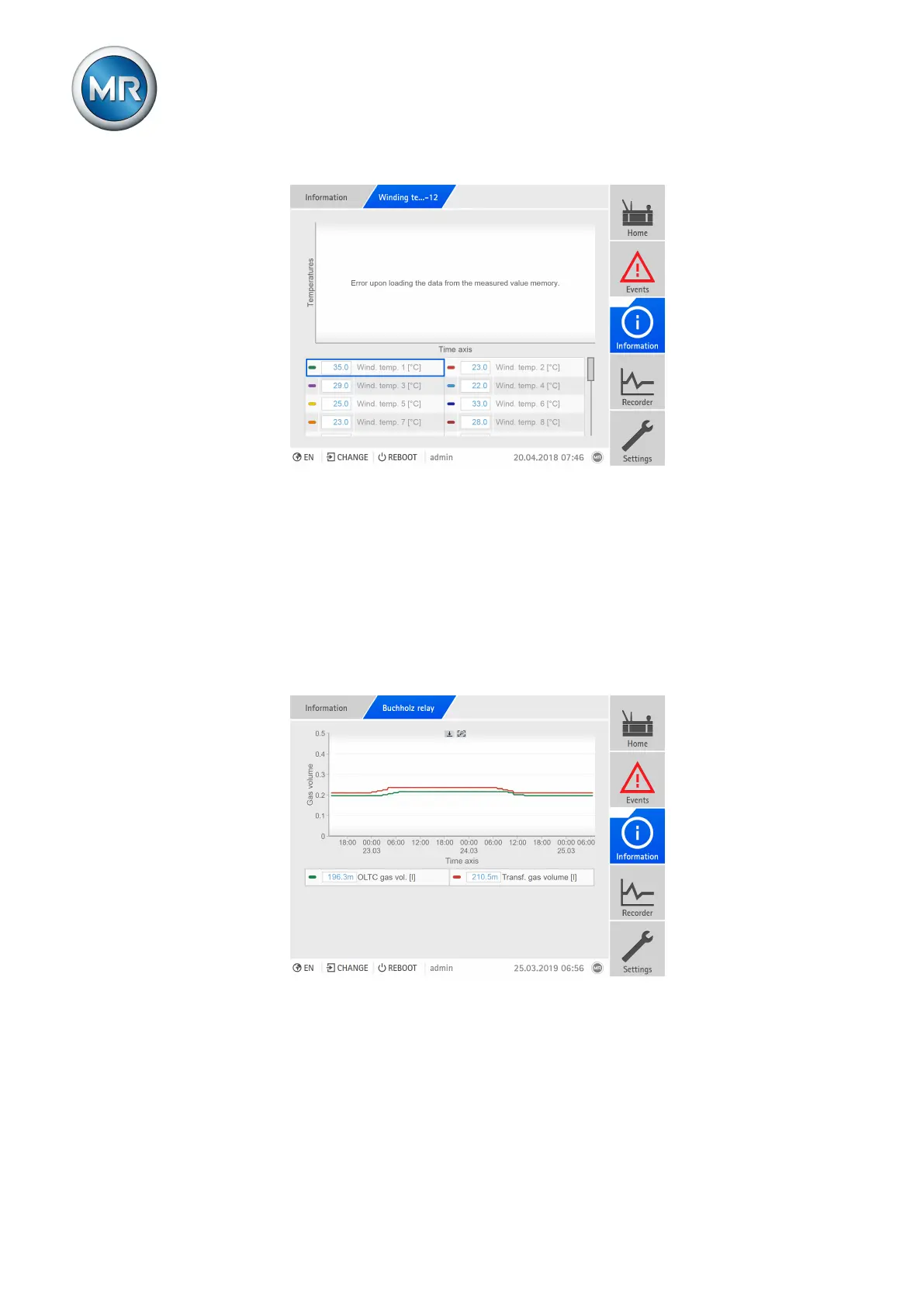

Figure126: Winding temperature
As an option, you can also display the measured value trend over a time pe-
riod that you define (max. the last 10 days). You will find more information on
this in the section "Measured value recorder" [►Section 7.10.2, Page 169].
7.10.6 Displaying the measured values of the Buchholz relay (optional)
You can display the temporal progression of the measured values of the
Buchholz relay over the last 10 days. To do so, proceed as follows:
► Go to Information > Buchholz relay.
Figure127: Measured value trend of the Buchholz relay
