7.9 Target-tap-position operation
You can use this parameter to define a target tap position. When target-tap-
position operation is activated, the device automatically switches to this tar-
get tap position.

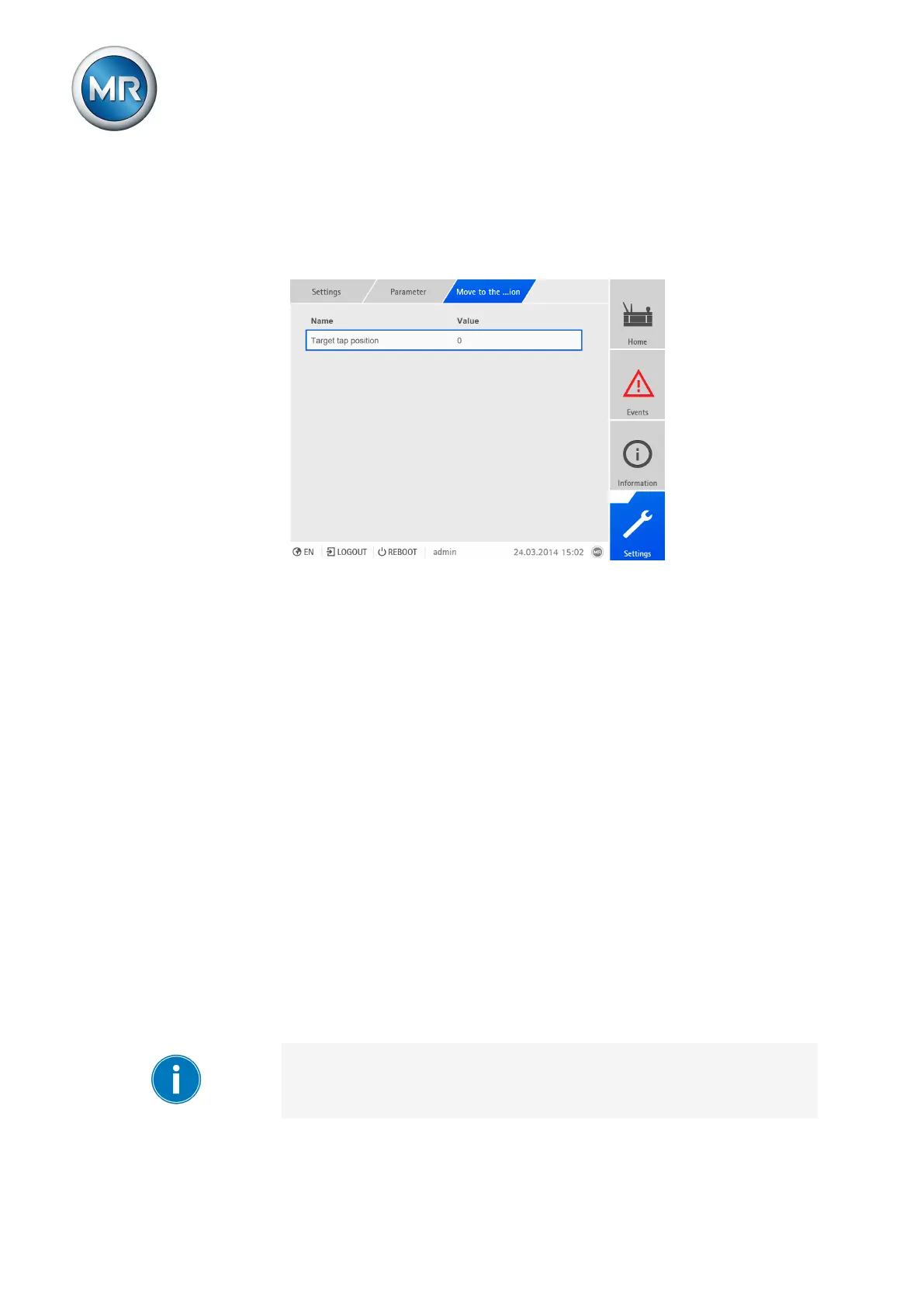

Figure118: Setting target-tap-position operation
To set the target tap position, proceed as follows:
1. Go to Settings > Parameters > Move to the defined target tap posi-
tion.
2. Enter target tap position.
3. Press the Accept button to save the modified parameter.
7.10 Measured values
You can display the measured values for the device.
7.10.1 Displaying current measured values
The current measured values can be displayed in the measured value
screen. Note that the displayed measured values may differ from the raw
values displayed in the information display of the UI assembly. The mea-
sured values are prepared for the measured value display by the device as
follows:
▪ The circuit set for the current transformer and voltage transformer is taken
into account, as is a corresponding phase displacement.
▪ The UI assemblies use the generator sign convention. The device dis-
plays the measured values using the load sign convention.
You can change the measured value display to the generator sign conven-
tion by activating the Retrofit TAPCON® 2xx [►Section 7.7.3, Page 147]
parameter.
