MR ETOS IM - Voltage Measurement; Bus Extension Module

4 Product description
Maschinenfabrik Reinhausen GmbH 201936 5163667/06 ENETOS
®
IM
4.4.9 Voltage measurement
The UI5-3 assembly is used for measuring 3-phase voltage.

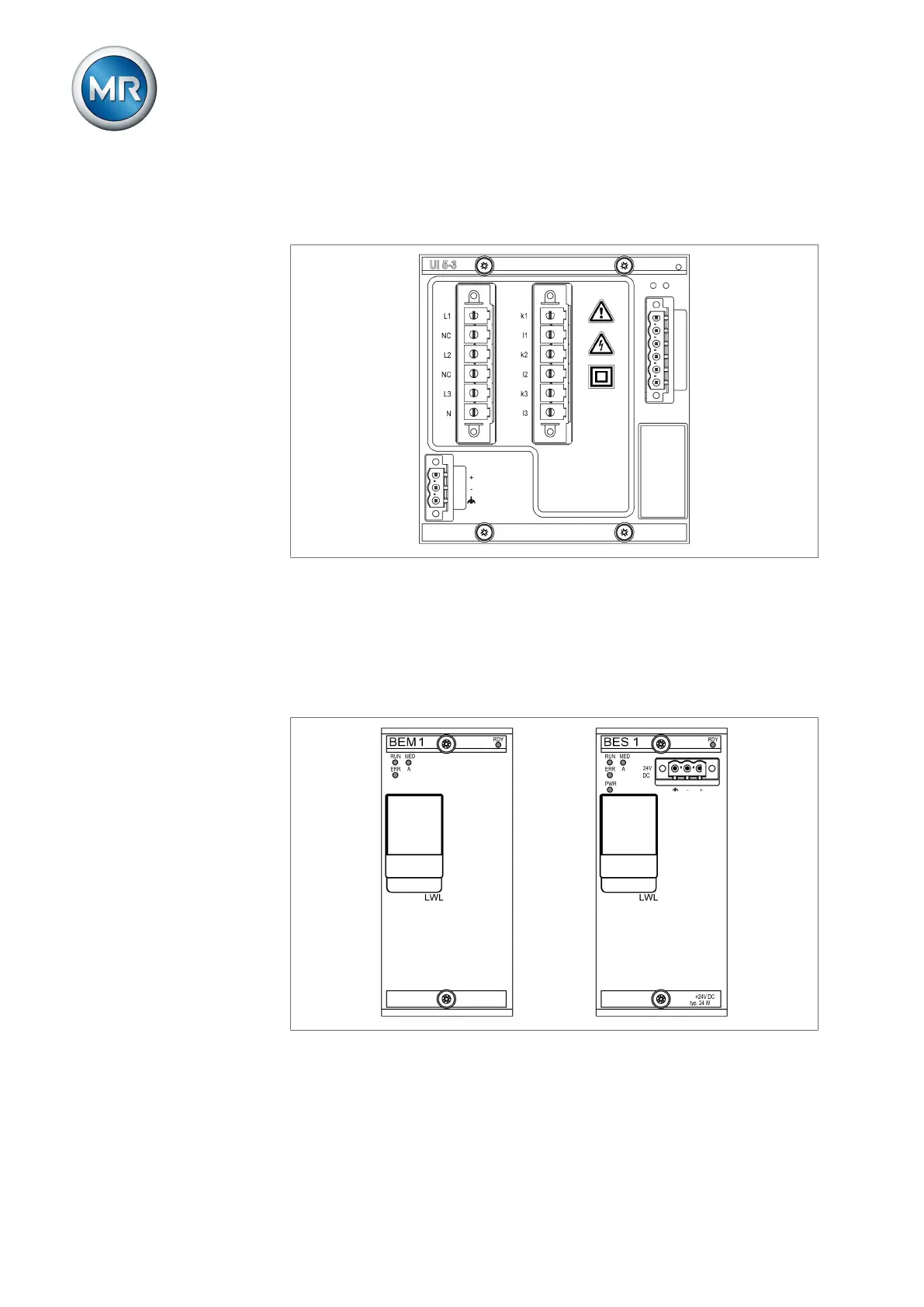

Figure15: UI 5-3 assembly
4.4.10 Bus extension module
The assemblies BEM 1 (master) and BES 1 (slave) are bus extension mod-
ules which are used to extend the system by one additional busbar with ad-
ditional assemblies. Data is transmitted via fiber-optic cable. The assembly
BES 1 has a connection for supplying voltage to the additional busbar.
Figure16: Assemblies BEM 1 and BES 1
