4 Product description
Maschinenfabrik Reinhausen GmbH 201930 5163667/06 ENETOS
®
IM

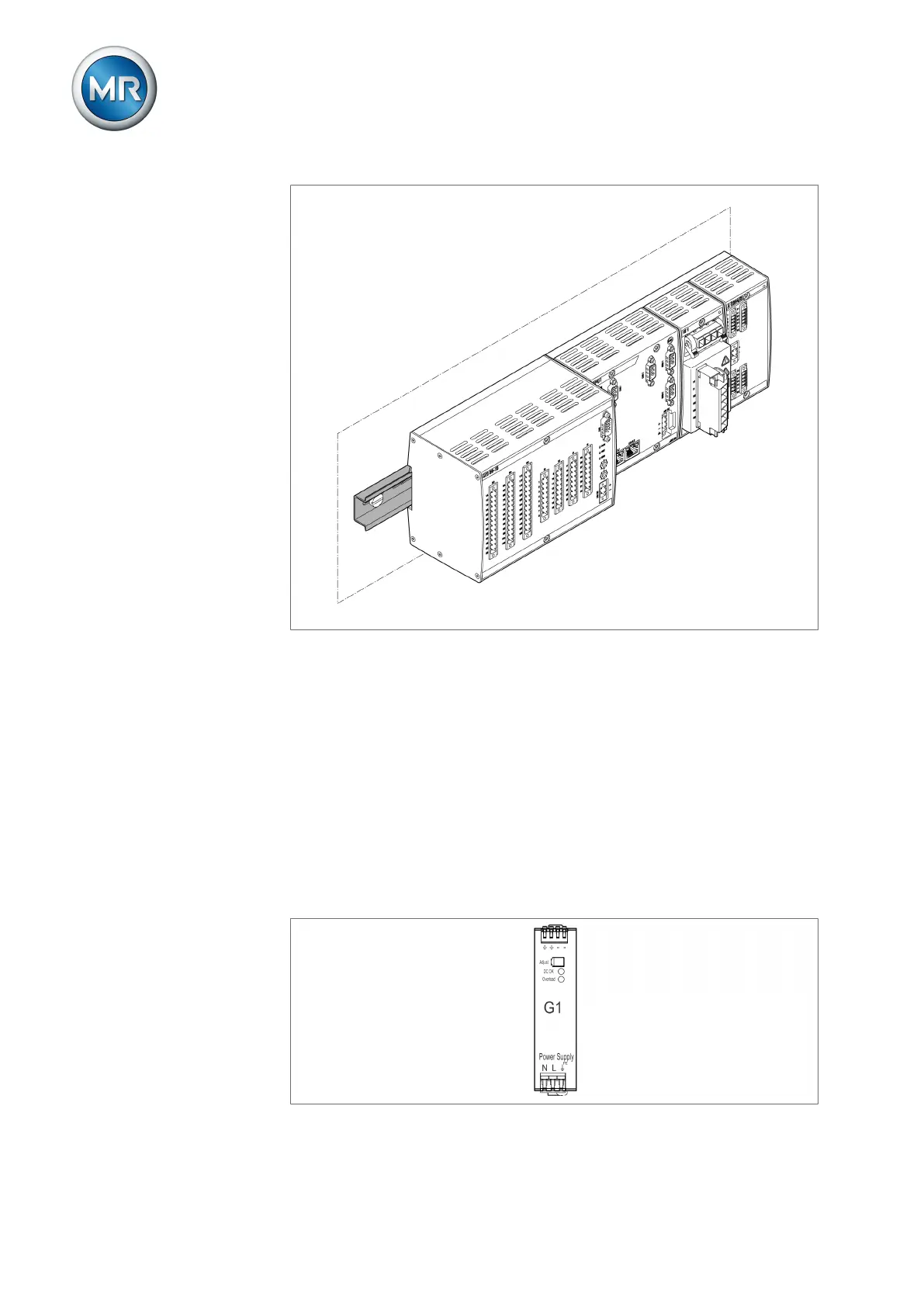

Figure6: Individual components for assembly on a cap rail
4.4.1 Power supply
The OT1205 assembly contains the power supply unit for powering the de-
vice. Depending on configuration, the device is equipped with one of the fol-
lowing power supply unit variants:
▪ Multi-voltage mains unit 85...265 VAC/VDC
▪ DC voltage power supply unit 20...70 VDC
4.4.2 Power supply
The G1 PULS DIMENSION QS3.241 assembly supplies power to the de-
vice.
Figure7: G1 PULS DIMENSION QS3.241 assembly
