MR ETOS IM User Manual

12 Technical data
Maschinenfabrik Reinhausen GmbH 2019390 5163667/06 ENETOS
®
IM

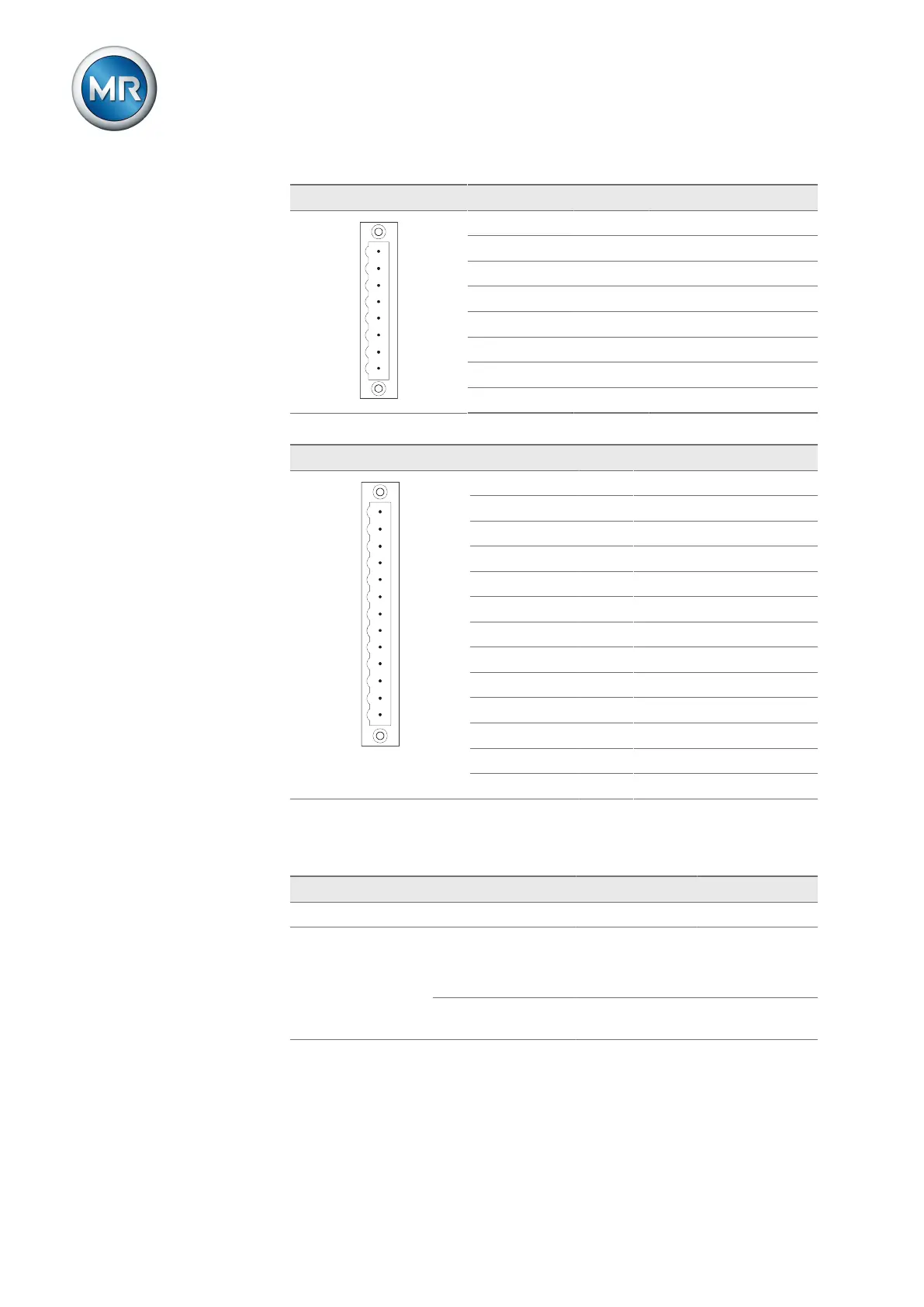

Interface Pin Description
1 9 17 25 33 41 Input
2 10 18 26 34 42 Input
3 11 19 27 35 43 Input
4 12 20 28 36 44 Input
5 13 21 29 37 45 Input
6 14 22 30 38 46 Input
7 15 23 31 39 47 Input
8 16 24 32 40 48 Common
Table133: Digital inputs
Interface Pin Description
1A 6A 11A 16A Break contact
1C 6C 11C 16C Source contact
1B 6B 11B 16B Make contact
2A 7A 12A 17A Break contact
2C 7C 12C 17C Source contact
2B 7B 12B 17B Make contact
3A 8A 13A 18A Break contact
3C 8C 13C 18C Source contact
3B 8B 13B 18B Make contact
4C 9C 14C 19C Source contact
4B 9B 14B 19B Make contact
5C 10C 15C 20C Source contact
5B 10B 15B 20B Make contact
Table134: Digital outputs
12.6 Analog inputs and outputs
AIO 2 AIO 4
Channels (input or output) 2 4
Inputs Measuring range 0...10 V
0...20 mA
4...20 mA
Load resistance
(0/4...20 mA)
max. 300 Ω
