To display the measured value recorder, proceed as follows:
1. Go to Recorder.

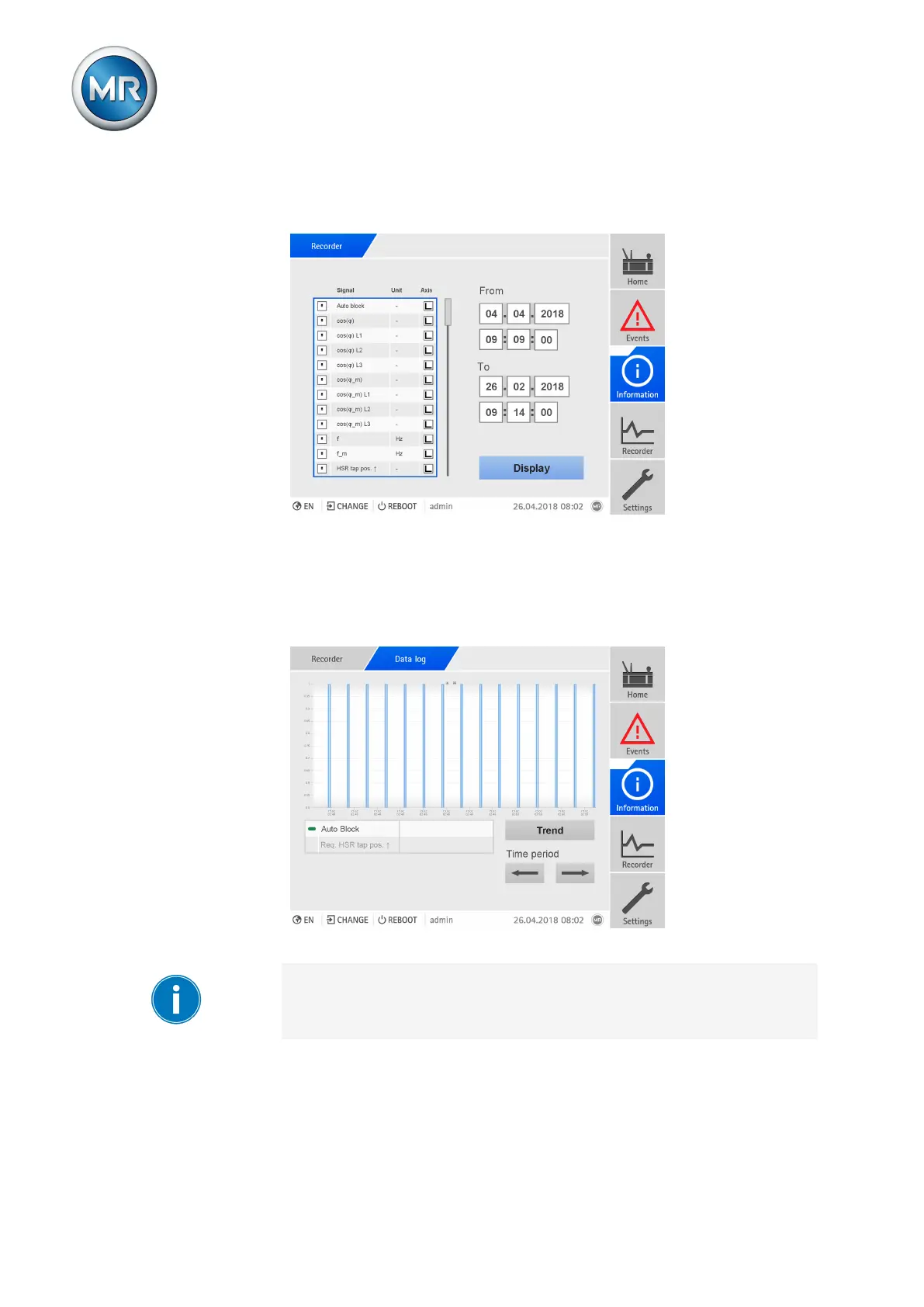

Figure120: Recorder
2. Select the signals to be displayed in the list.
3. If necessary, set the desired axis for each signal.
4. Enter the start time and end time for the measured value display.
5. Press Display to call up the measured value display (data log).
Figure121: Data log
The operation described below is only possible if you access the visualiza-
tion using a computer.
6. Move the mouse pointer to a measurement point for more information.
