7 Operation
Maschinenfabrik Reinhausen GmbH 2019 2275163667/06 EN ETOS
®
IM

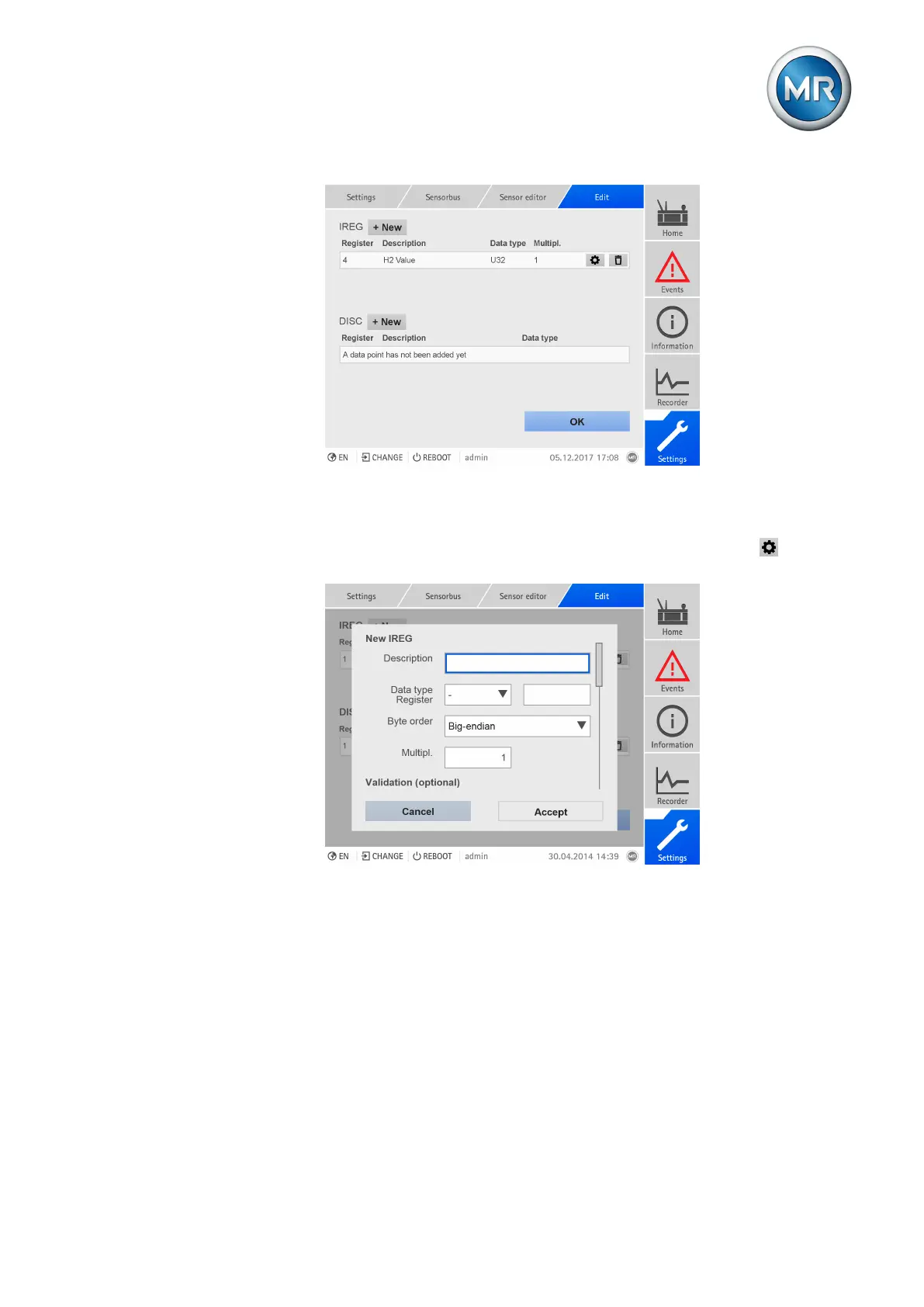

Figure171: Configuring data points
To configure a data point, proceed as follows:
1. Press the + new button to add a new data point or press the button to
edit a data point.
Figure172: Adding a data point
2. Enter a description.
3. Select a data type and register.
4. Select the byte order of the sensor.
5. Only with IREG: Enter the multiplier.
6. Optional (only with IREG): Enter the register of the DISC for validation
and select the value for validity (High-active: 1 = valid; Low-active: 0 =
valid).
7. Optional (only with IREG): Enter the minimum and maximum value for
the validation. If the raw value is not within the set range, the value is in-
terpreted as being invalid.
