You can only use data points with bType BOOLEAN (true | false) and Dbpos
(intermediate-state | off | on | bad-state). The functional constraint must be of
type ST.
Value Description
true | on Is used as logical value 1
false | off Is used as logical value 0
intermediate-state Last value received is retained
bad-state Error status, value is identified as invalid
Table77: Description of values
The device automatically assesses the quality. If the device receives a qual-
ity not equal to 0, the value is also interpreted as invalid. The device then
generates the IEC61850 GOOSE communication defective event message.

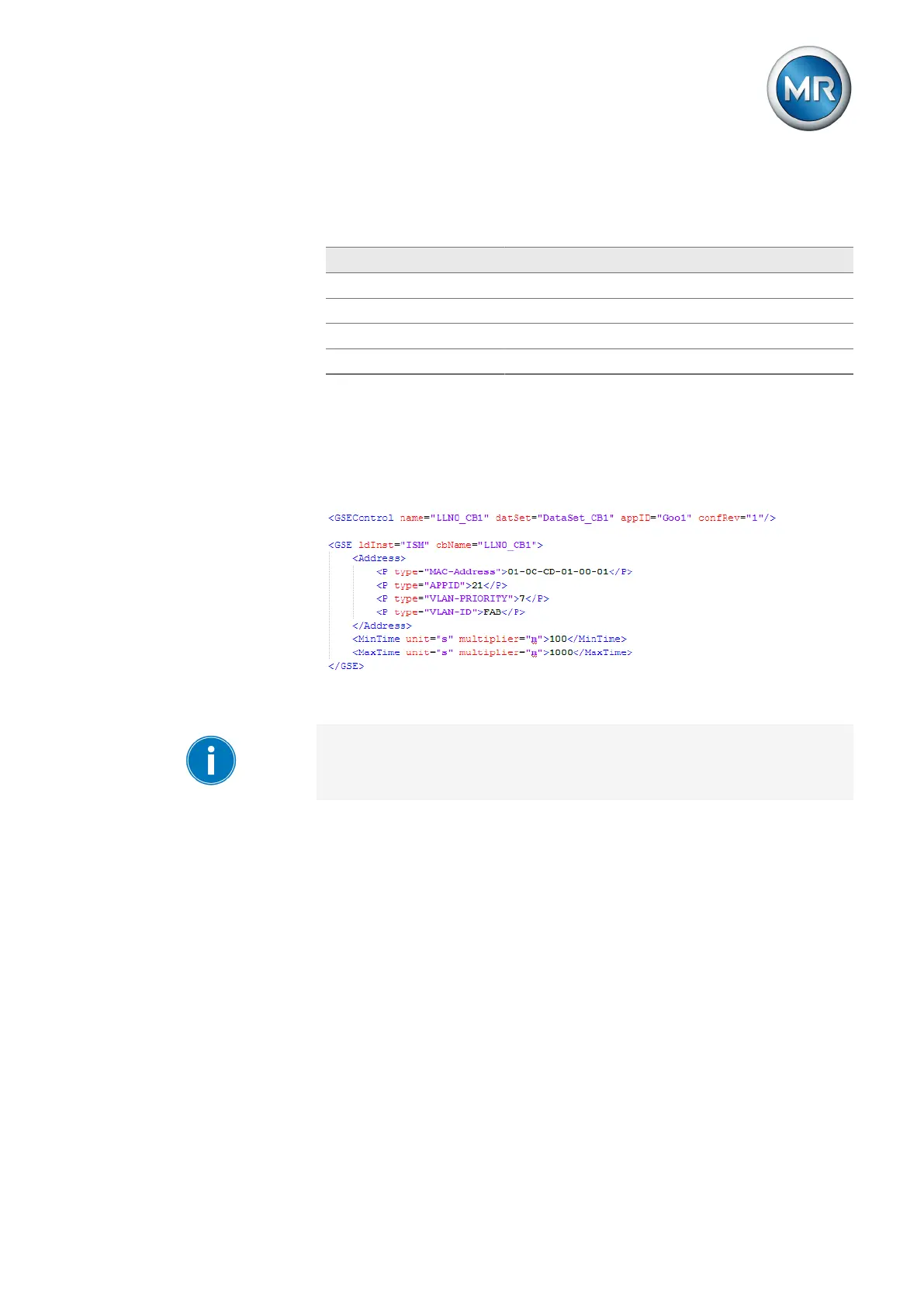

Example:
Configuration
To configure the device as a GOOSE subscriber, you have to call up the vi-
sualization via a PC. You must have a parameter configurator or administra-
tor user role.
