4 Product description
Maschinenfabrik Reinhausen GmbH 2019 395163667/06 EN ETOS
®
IM
Main screen
The most important measured values of the transformer are displayed on the
main screen. The individual status displays of the transformer shown can be
selected directly when accessing via the web browser. They act as links to
the corresponding menu items. If you are operating the device via the front
panel, you are only able to call up the elements via the Information menu.

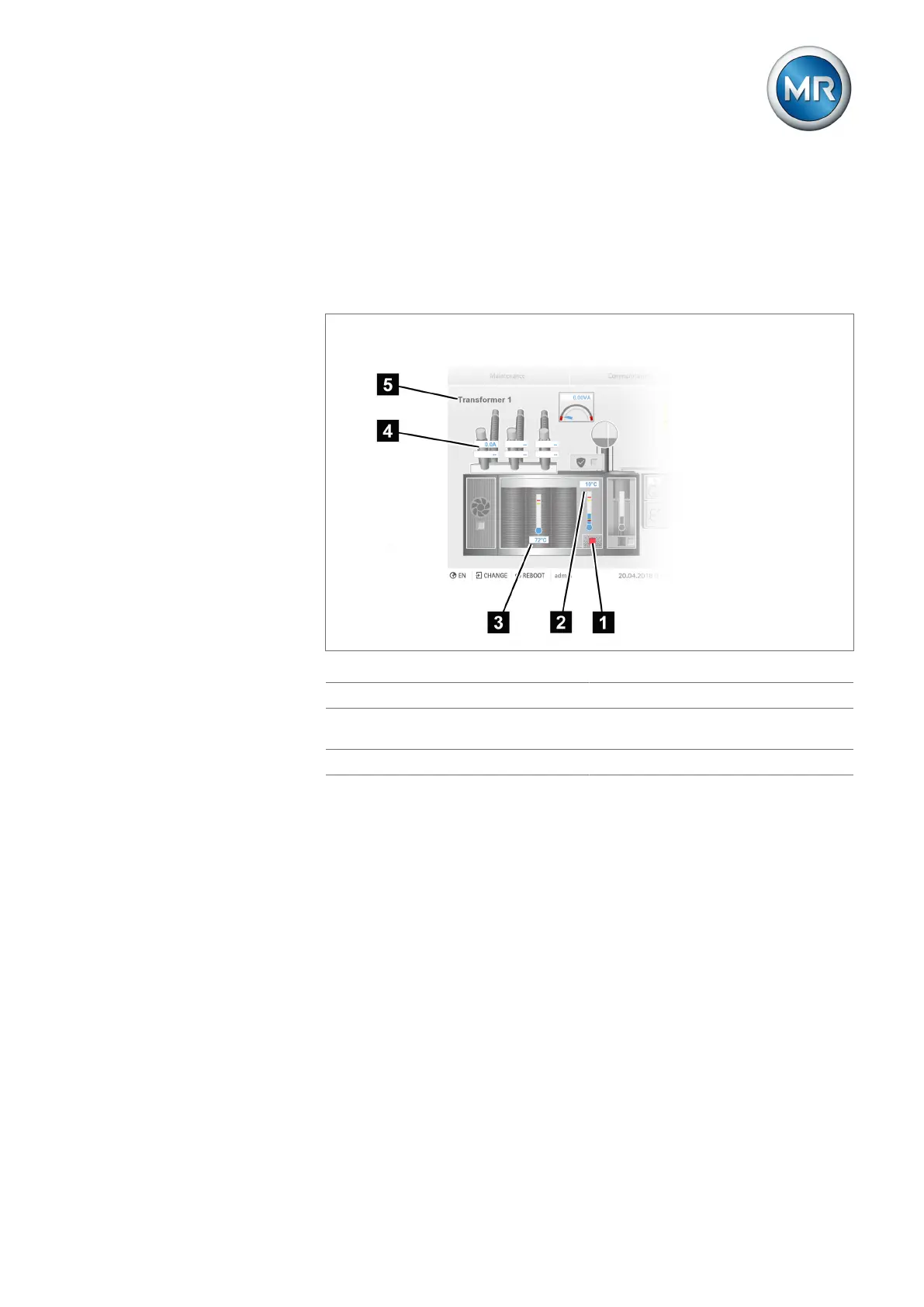

Figure18: Transformer data
1 DGA (status) 2 Temperature of top-oil
3 Hot-spot temperature 4 Load current and load voltage of
phases L1, L2, L3
5 Transformer name
