12 Technical data
Maschinenfabrik Reinhausen GmbH 2019392 5163667/06 ENETOS
®
IM
Interfaces

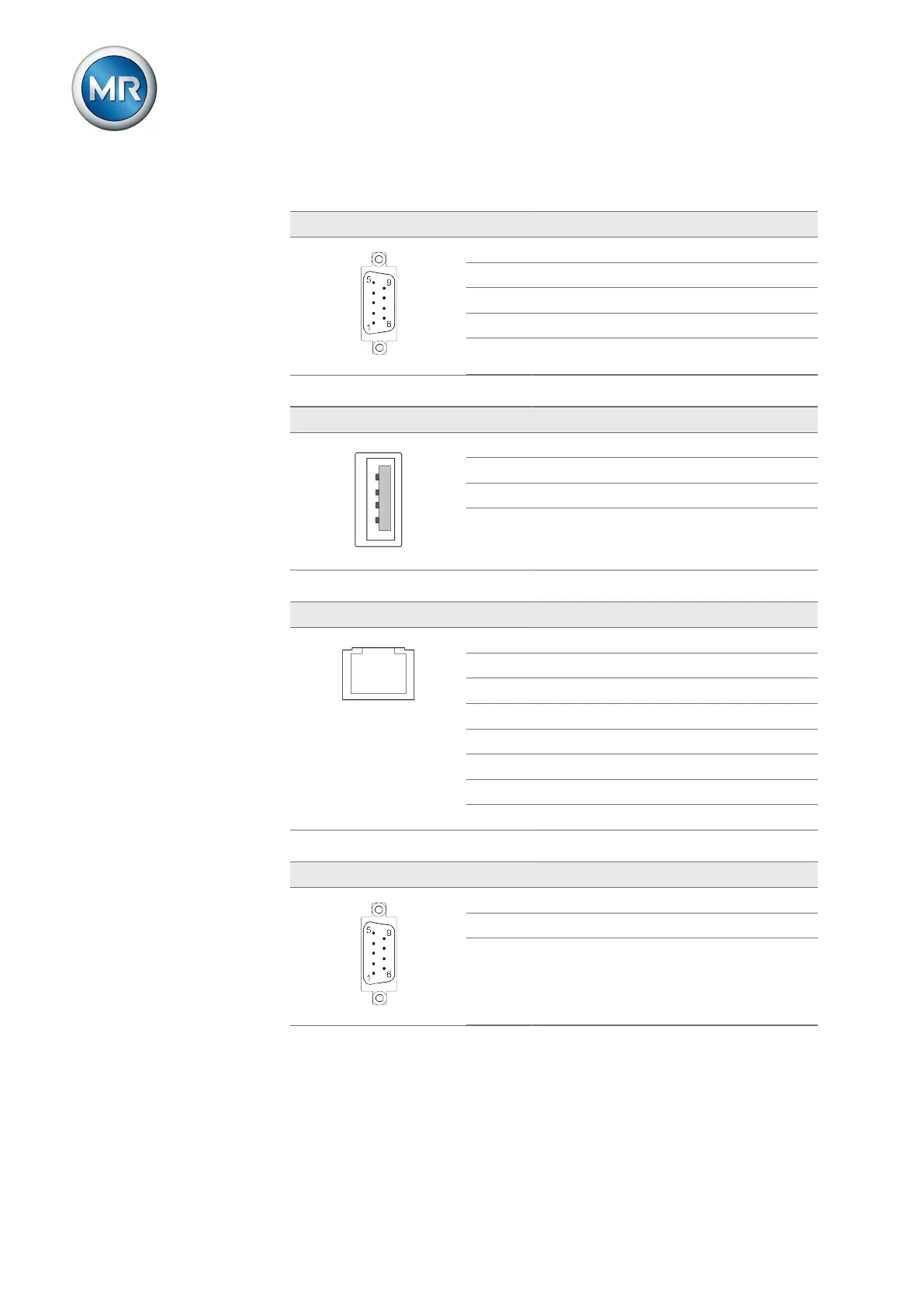

Interface Pin Description
2 RXD (RS232)
3 TXD (RS232)
5 GND (RS232, RS485)
6 RXD+/TXD+ (RS485)
9 RXD-/TXD- (RS485)
Table138: COM2 (RS232, RS485)
Interface Pin Description
1 VCC
2 D-
3 D+
4 GND
Table139: USB 2.0
Interface Pin Description
1 TxD+
2 TxD-
3 RxD+
4 NC
5 NC
6 RxD-
7 NC
8 NC-
Table140: ETH1, ETH 2.1, ETH 2.2 (RJ45)
Interface Pin Description
2 CAN-L
3 CAN-GND
7 CAN-H
Table141: CAN1, CAN2
