5 Mounting
Maschinenfabrik Reinhausen GmbH 201970 5163667/06 ENETOS
®
IM
In order to correctly record the analog signals, you must place the cable
shielding on the grounding bar. The cable shielding should only be removed
just prior to connecting, to ensure that the section with unshielded cables is
kept as short as possible. The shielding must be connected with shielding
clips.

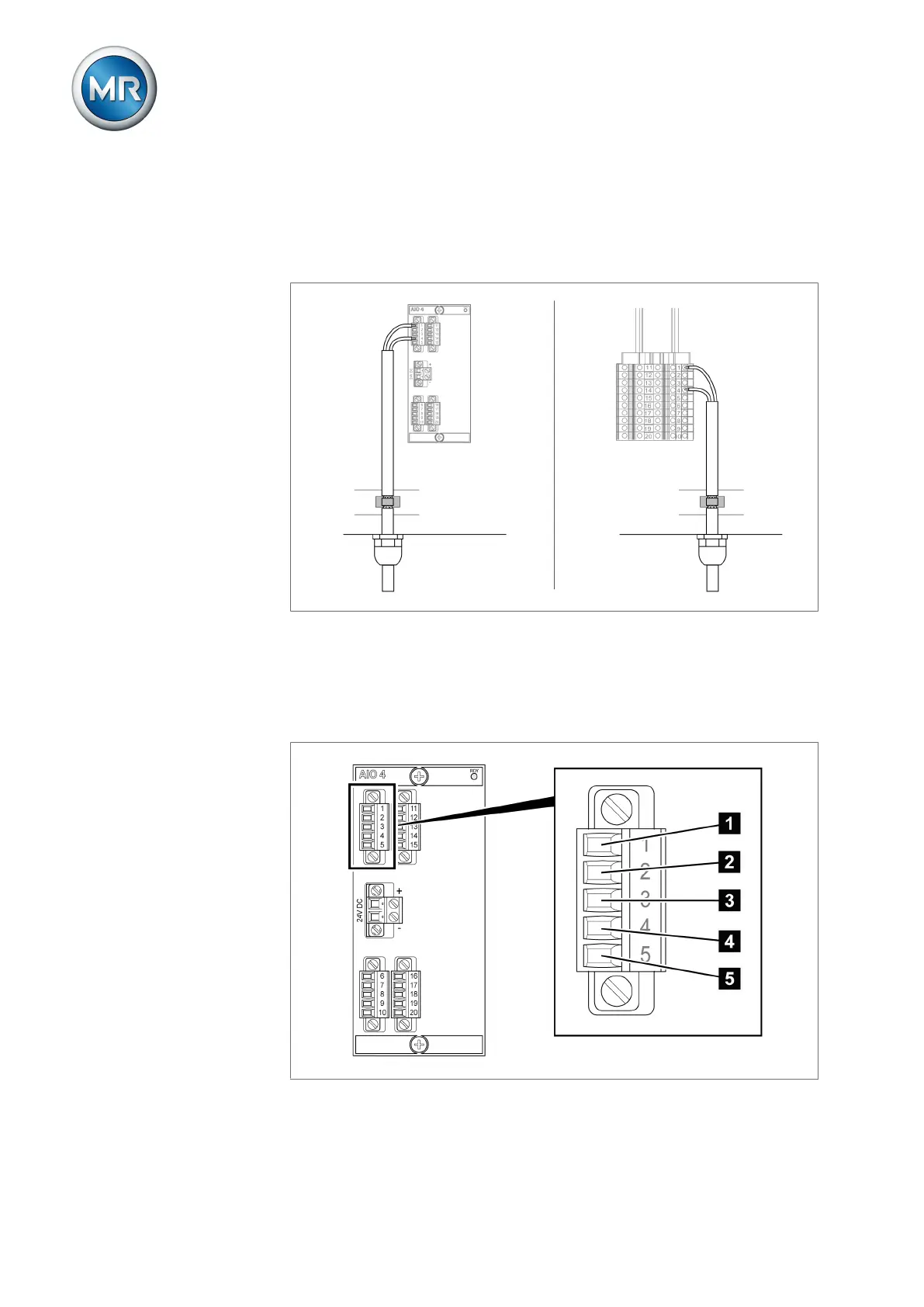

Figure56: Examples of supporting shielding on ground bar (on left: Direct connection to AIO as-
sembly, on right: Connection using line-up terminal)
Plug assignment
The AIO 2, AIO 4 and AIO 8 assemblies have a separate plug connector for
each channel (input or output). The plugs are assigned as follows:
Figure57: Plug assignment of AIO 2 and AIO 4 assemblies
