5 Mounting
Maschinenfabrik Reinhausen GmbH 201980 5163667/06 ENETOS
®
IM

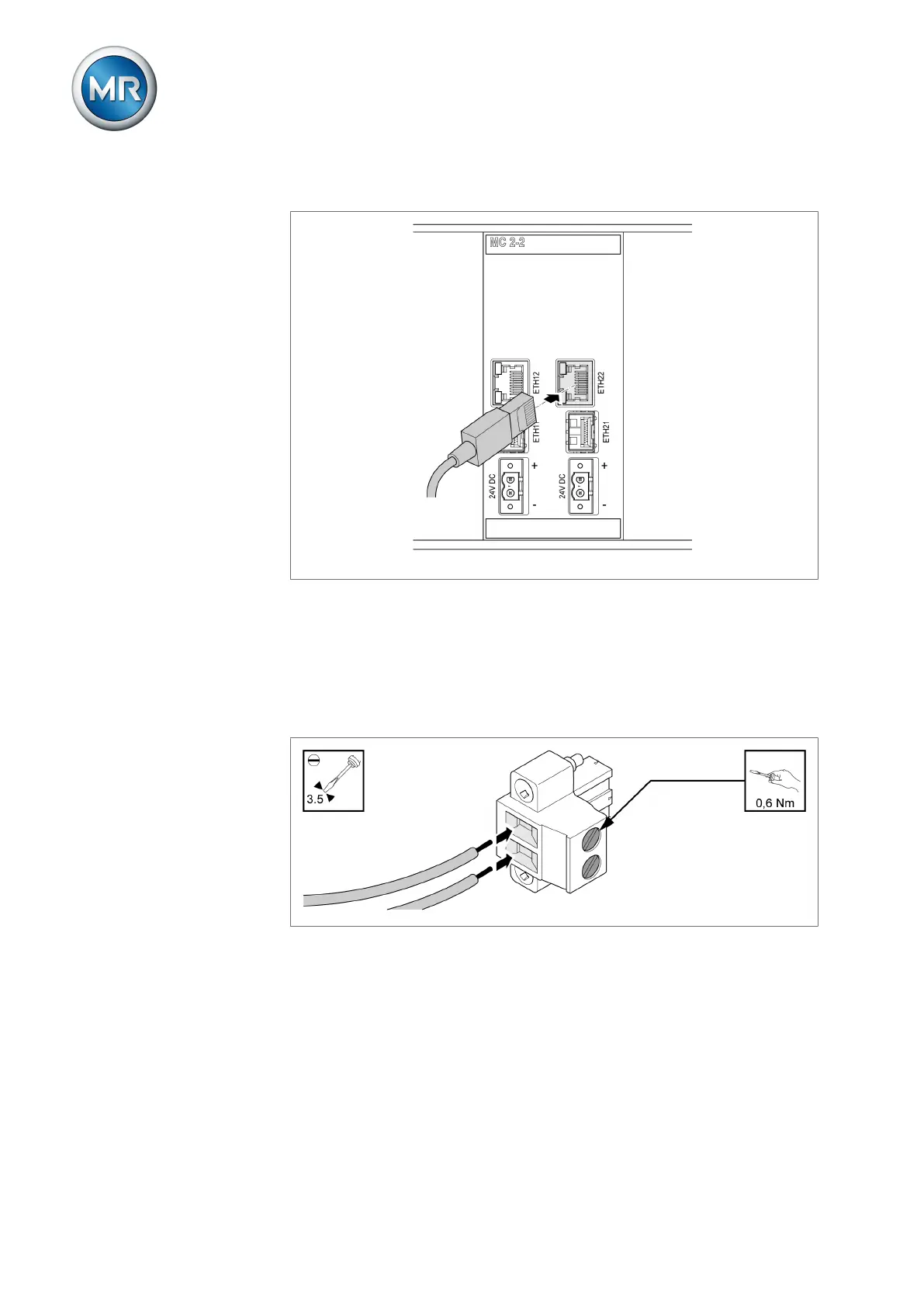

4. Insert the network cable.
Figure73: Inserting the network cable
Voltage supply
Connect the MC2-2/SW3-3 assembly to the voltage supply of the voltage
supply unit:
1. Guide the leads into the respective plug terminals for the voltage supply
and fasten them using a screwdriver.
Figure74: Inserting the leads
