6 Commissioning
Maschinenfabrik Reinhausen GmbH 201988 5163667/06 ENETOS
®
IM
Assembly Interfaces Test parameters
Max. test voltage Max. test dura-
tion
Ramp Breaking current
threshold
DIO28-15
DIO42-20
DIO42-20HL
any DI, DO 2.2kVAC 2s 5s >1mA
G1 (PULS) N, L 2.2kVAC 2s 5s >4mA
Table13: Permitted interfaces and test parameters for the dielectric test
1)
only the version with 85...265 VAC/VDC wide-range power supply, other-
wise the device may be damaged. Note the nameplate.
Sample dielectric test set-up

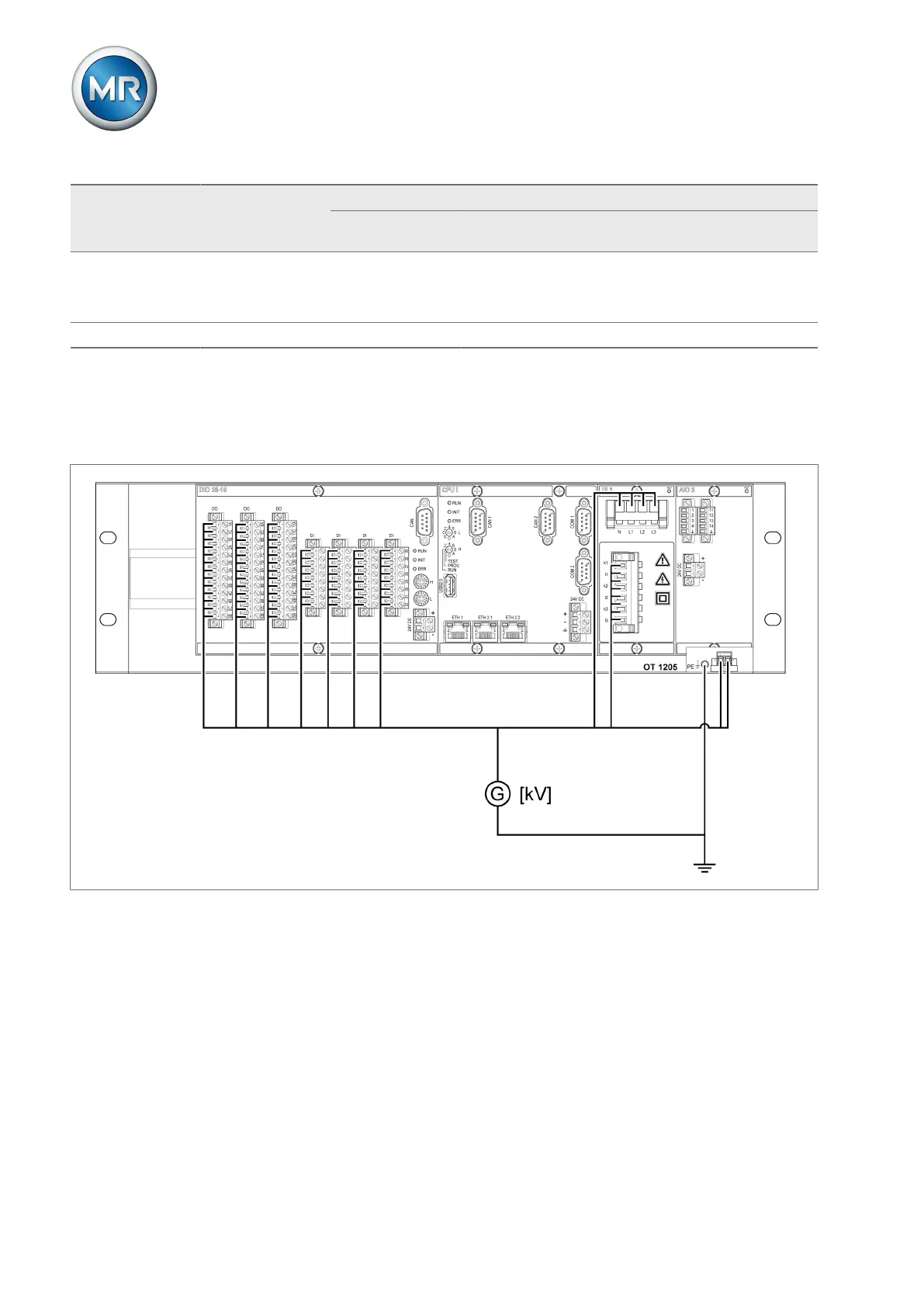

Figure80: Sample set-up of the dielectric test for a device designed with the OT 1205 wide-range power supply
