PTS 400.3 PLUS Operation Manual_R02 Page 220/306

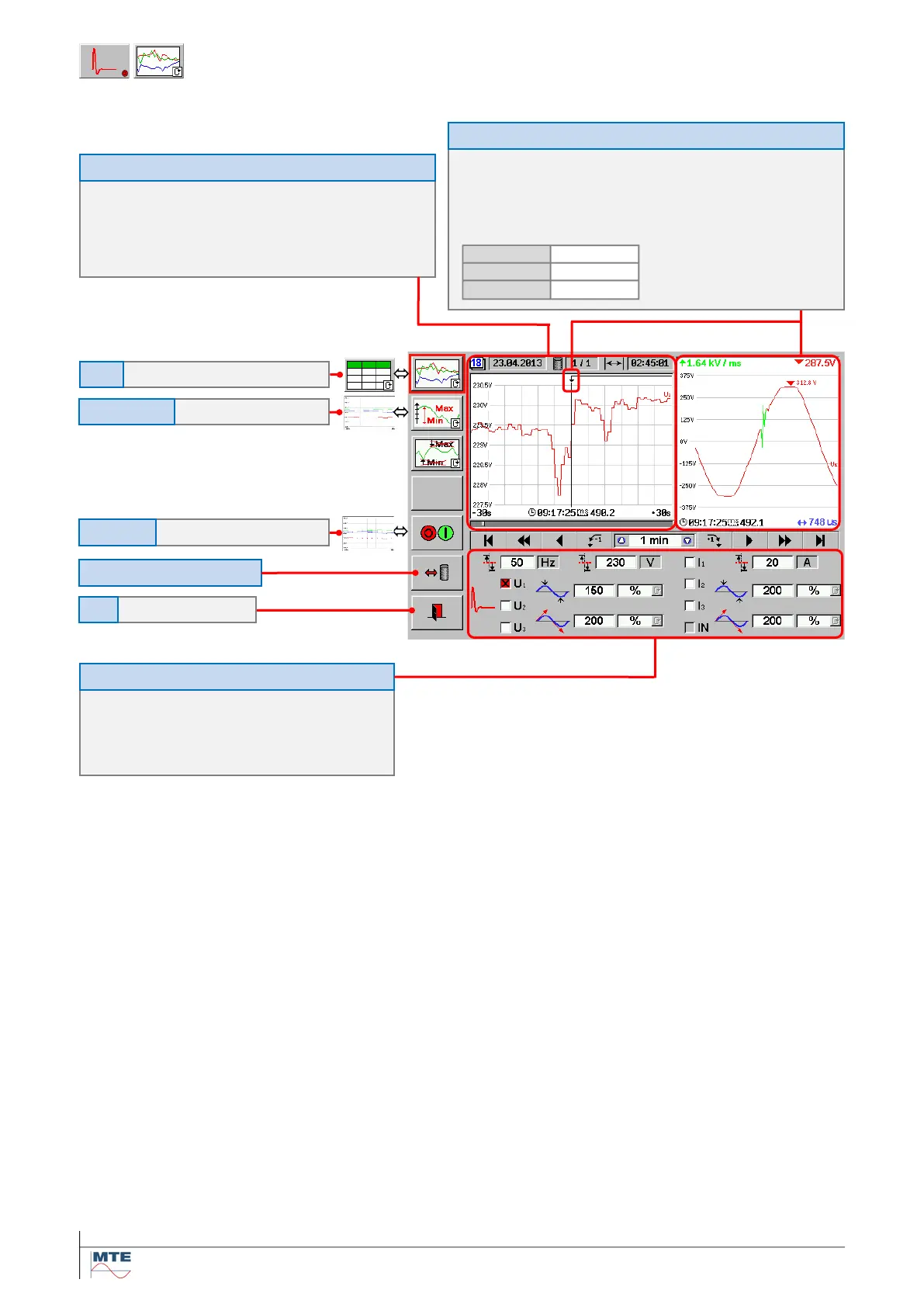

Transients graph view
The window shows details of the transient event marked with the
black line in the magnitude window.
One period of the fundamental is shown. The transient part of the
wave form is
marked green and the peak value 287.5 V and the
wave form amplitude peak value
312.8 V are indicated.
Event parameters
Slope
1.64 kV/ms
Peak value
287.5 V
Length
748 s
Indication of events on phase voltage U1 is selected
only.
Note: The input of the parameters (reference values of
f, U and I, threshold, gradient) is only available at PQ
online.
Table  Graph
View
0/Max  Min/Max
Vertical scale
ON  OFF
Recording
Back to calling menu
Exit
Definition of event values and parameters
The magnitude or rms values of voltages and currents with se-
lected check boxes are shown as trend graph.
All detected transients are marked with black arrows at the
top.
Recording interval:
1s
Magnitude window
Wave form window
Load/Save Settings
