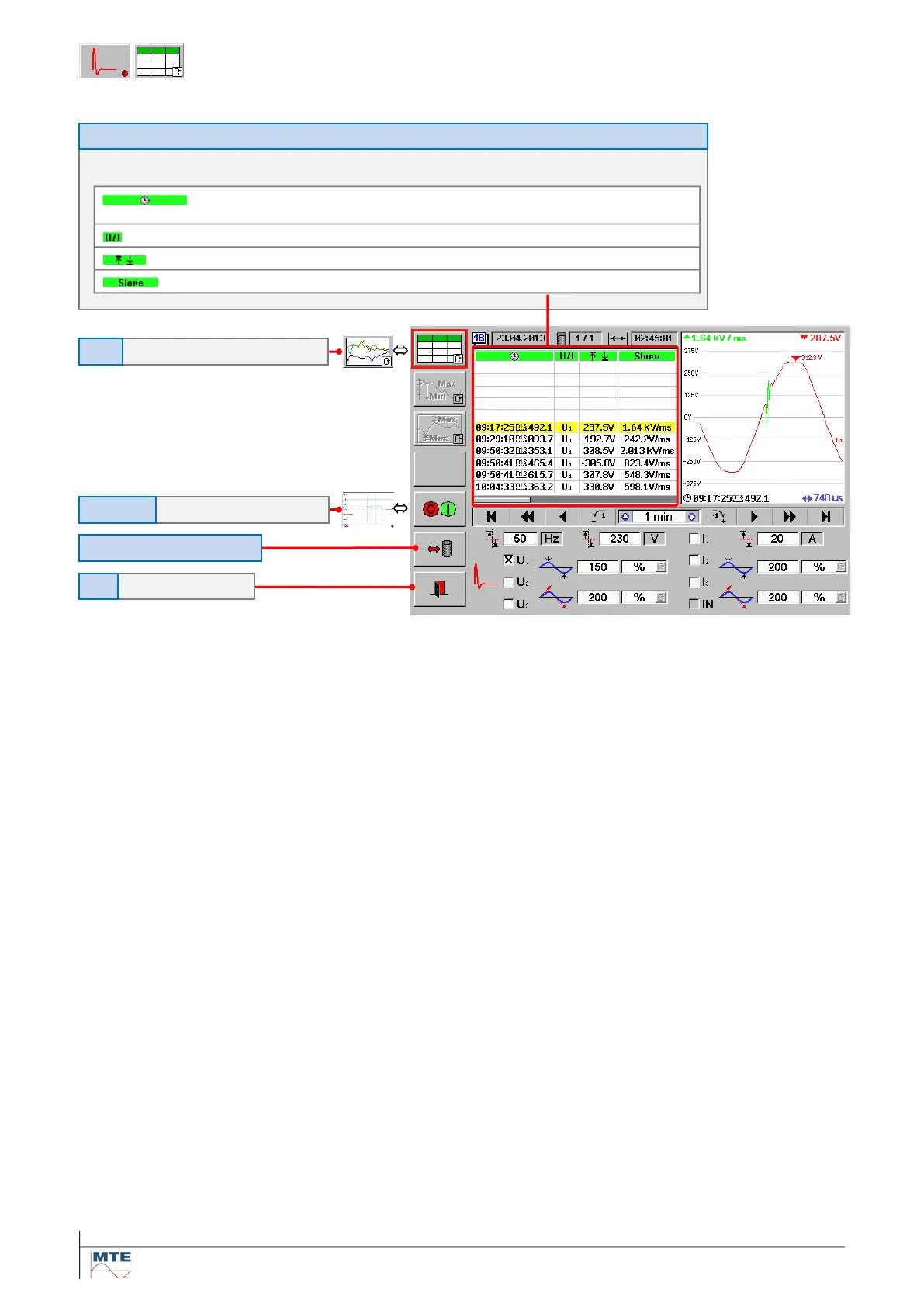

Transients table view
A list of all recorded events is shown. The selected event is marked yellow.
Event Parameters
Event time stamp: Start time stamp at crossing of threshold in format HH:MM:SSmXXX.X
with:HH: Hours, MM: Minutes, SS: Seconds, XXX.X: Milliseconds.
Quantity: Voltage U1, U2, U3 or current I1, I2, I3, IN
Positive / negative peak value: Highest positive or negative value reached during the event.
Slope of the green marked transient part of the wave form.
Graph  Table
View
ON  OFF
Recording
Back to calling menu
Exit
Event Table
Load/Save Settings
