PTS 400.3 PLUS Operation Manual_R02 Page 74/306
6.5.1.2
Measure system dataset
Call edit actual object or load object file or create new object at the file
selection menu [6.1] to call the actual object menu.

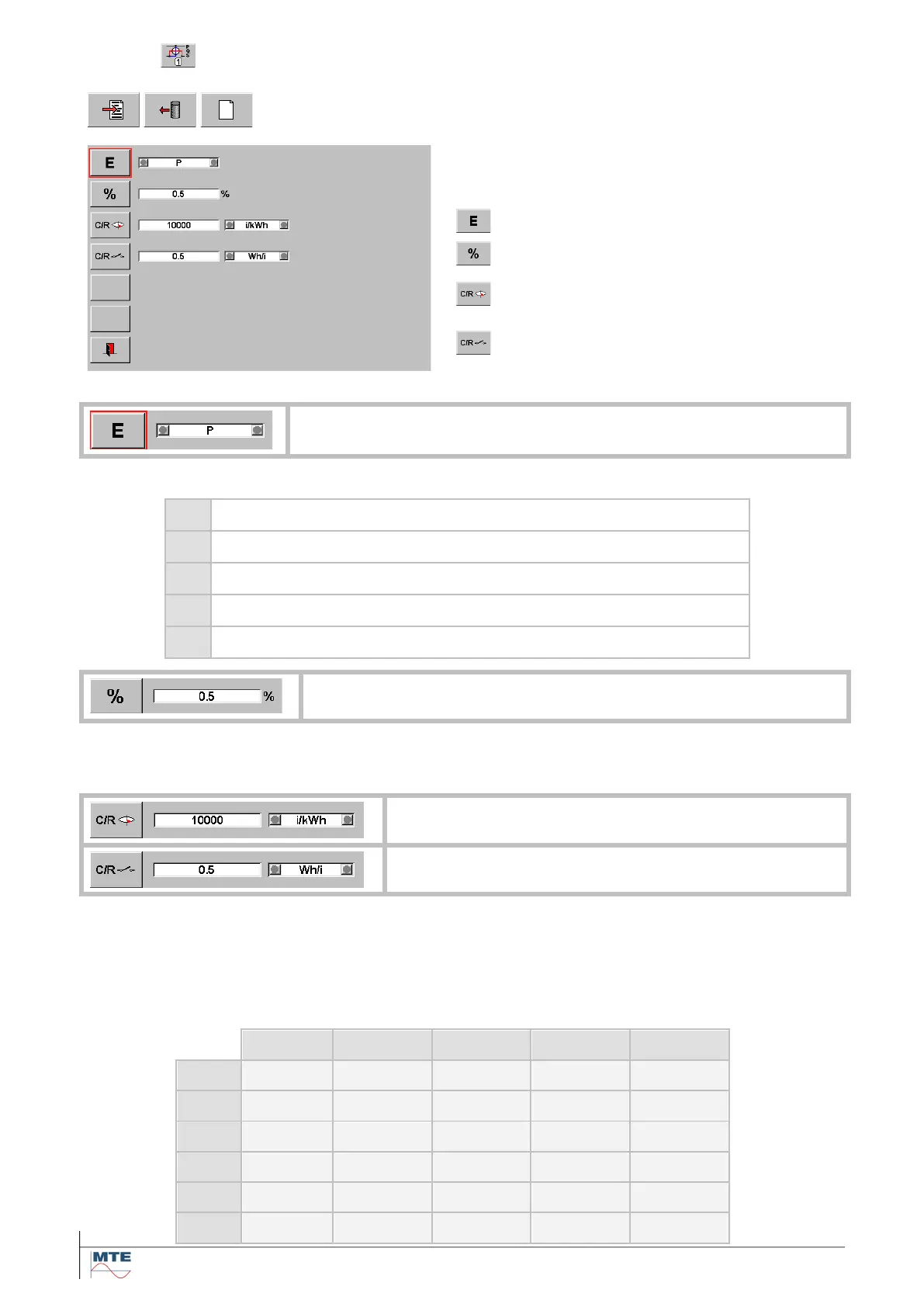

Actual measure system dataset
Enter or modify directly with virtual or external key-
board:
Meter constant and unit of disc mark /
LED
Meter constant and unit of electrical out-
put
Select energy type with up/down cursor keys (cyclical mode):
Active energy import / export
Reactive energy import / export
Apparent energy import / export
I
2
-hours (used at transformer loss meters, copper and leakage loss)
U
2
-hours (used at transformer loss meters, iron and core loss)
Enter accuracy class of measuring system in percentage (%) as indicated on meter or
specifications.
Meter constant of disc mark /LED impulse output
Meter constant of electrical impulse output
Constant value
Enter constant value for disc mark (1 revolution (r) = 1 impulse (i) ) or LED impulse out-
put or electrical impulse output as indicated on the meter or specifications.
Unit
Available units depending on selected energy type
