MultiSmart Installation & Operation Manual
5.4.3.4 Pump Information
Under this screen, the Runtime, Start, Reverse and Fault statistics as well as IRT information can be
accessed. These options are illustrated in this section.
(a) Runtime Statistics
Navigate to:

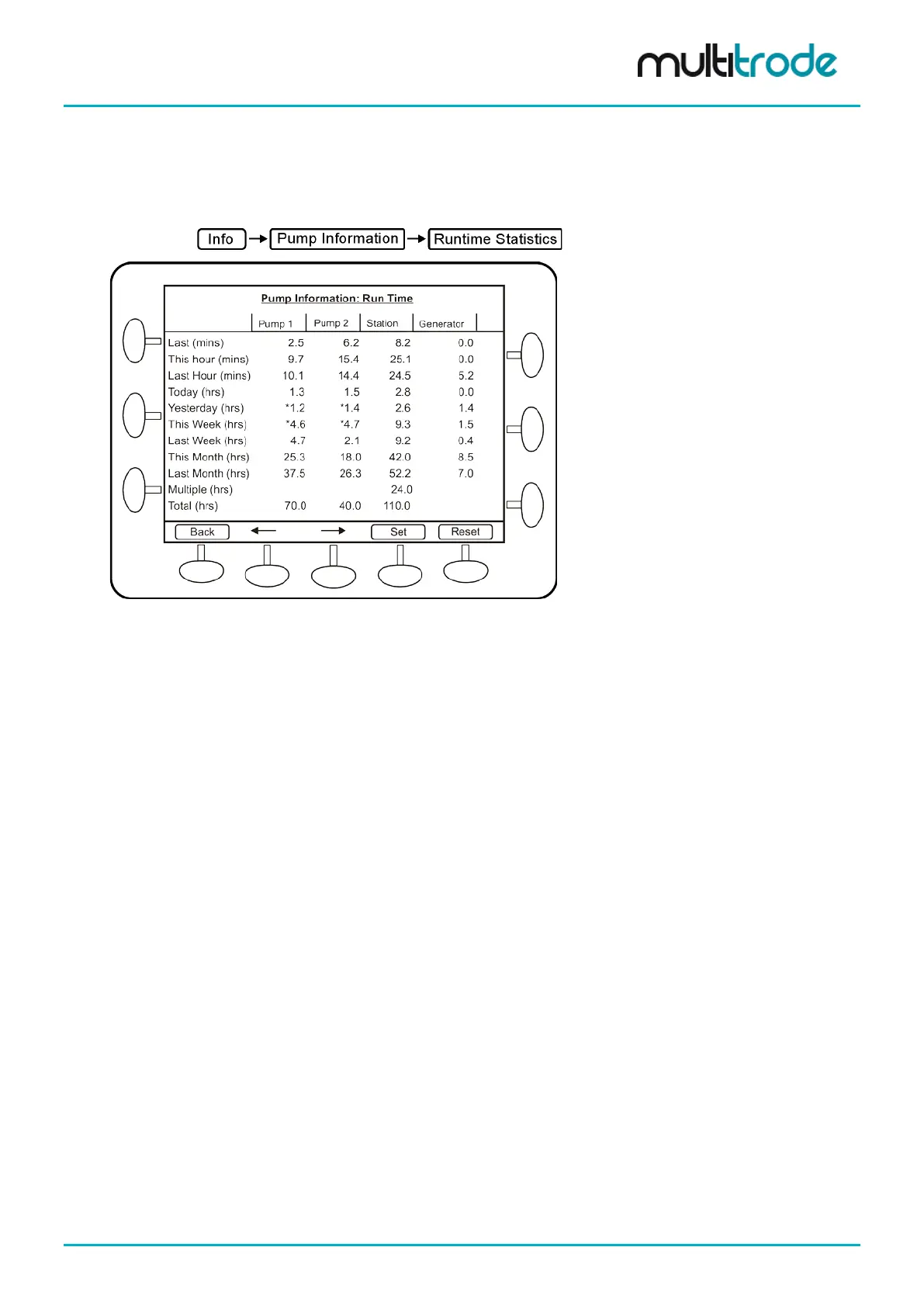

Figure 15 – Pump Run Time Statistics
Runtime is calculated based on when the pump is considered running via the contactor auxiliary status. This
includes when the pump is externally run (determined via the contactor auxiliary status). If no contactor
auxiliary is wired in, the runtime is calculated from when the pump is called for by MultiSmart, and external
pump runs (e.g. via external switch) will not be included. This is also the case for Starts (below).
In the case of the runtime statistics, the station runtime may not equal the sum of the pump runtimes. For
example, if Pump 1 is running for 1 hour by itself, followed by Pump 2 running for 1 hour by itself, then both
pumps run for 1 hour together. The Pump 1 and Pump 2 runtimes will be 2 hours each whereas the Station
runtime will be 3 hours since both the pumps were running together for an hour.
For the Generator Run Time statistics to be calculated, a digital input must be wired into the MultiSmart and
configured as the Generator Running fault.
MultiSmart_IO_Manual_R20 Page 25 of 260
