MultiSmart Installation & Operation Manual
(d) Insulation Resistance
Navigate to:

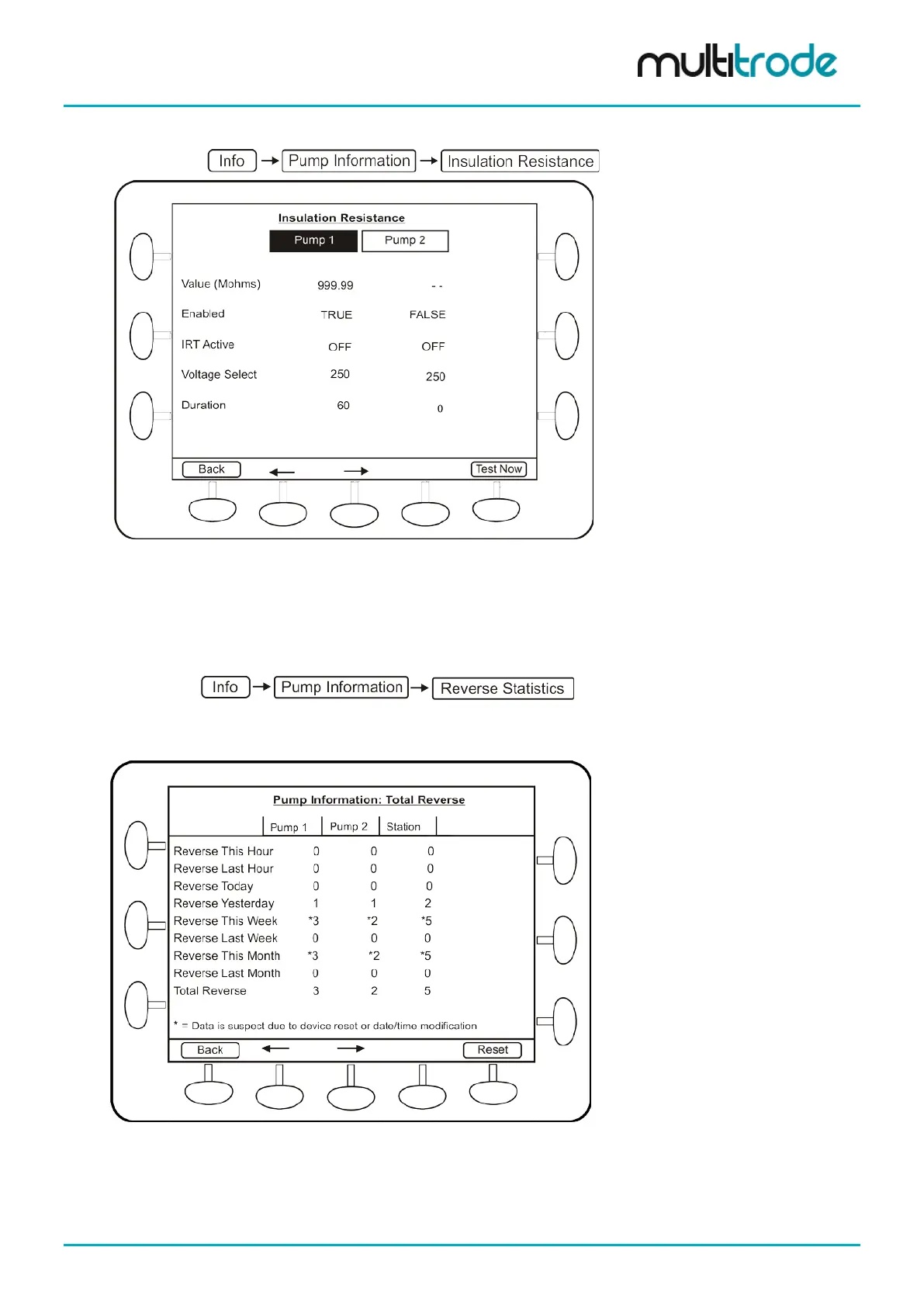

Figure 18 – Insulation Resistance
The insulation resistance test can be activated from this screen. The result of the test and related values are
displayed in this screen. This test can only be performed when the pump is not running. (IRT can also be
accessed from the I/O information screen).
(e) Reverse Statistics
Navigate to:
Pump reverse information can be viewed here. Three different Reverse Statistics can be viewed.
(i) Total Reversals
Figure 19 – Pump Total Reversal Statistics
This gives the total reversal statistics for the pumps as well as the station.
MultiSmart_IO_Manual_R20 Page 27 of 260
