NETGEAR S3300 User Manual

Configure System Information
103
S3300 Smart Managed Pro Switch

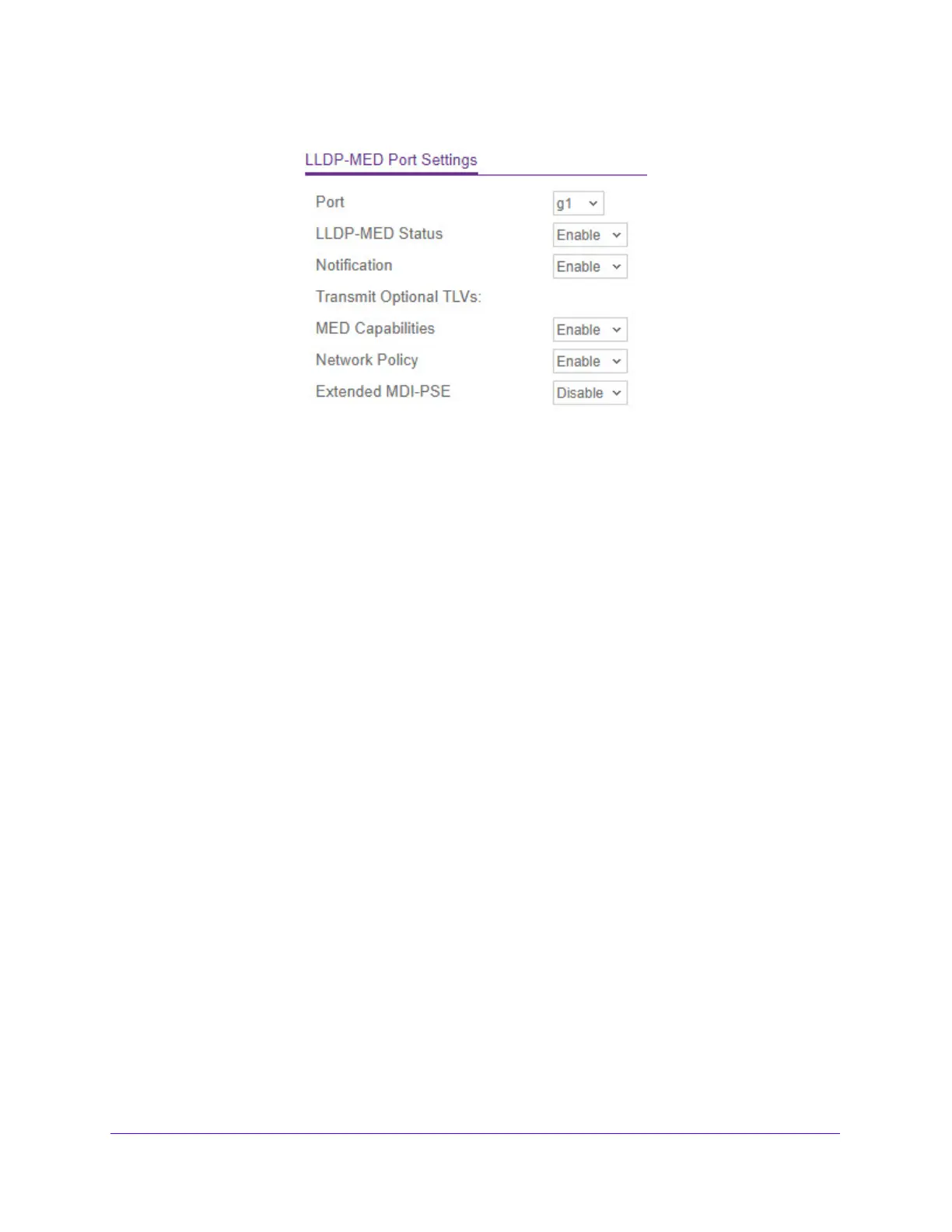

Figure 59. LLDP-MED Port Settings
2. From the Port list, select the port to configure.
3. Use the list
s to enable or disable the following LLDP-MED settings for the selected port:
• L
LDP-MED Status. The administrative status of LLDP-MED on the interface. When
LLDP-MED is enabled, the transmit and receive function of LLDP is effectively
enabled on the interface.
• Notification. Wh
en enabled, the port sends a topology change notification if a device
is connected or removed.
• T
ransmit Optional TLVs. When enabled, the port transmits the following optional
type length values (TLVs) in the LLDP PDU frames:
- MED Ca
pabilities
- Networ
k Policy
- L
ocation Identification
- Extende
d Power via MDI: PSE
- Extende
d Power via MDI: PD
- In
ventory
4. Click the Ap
ply button.
LLDP-MED Neighbors Information
Use this screen to display the LLDP-MED Neighbors/Remote Device information.
 To display the LLDP-MED Neighbors Information:
1. Select System > LL
DP > Advanced > LLDP-MED Neighbors Information.

NETGEAR S3300 Specifications

General

Model	NETGEAR S3300
Category	Switch
VLAN Support	Yes
Quality of Service (QoS)	Yes
MAC Address Table Size	16K
Uplink Ports	4 x 10G SFP+
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer	Layer 2+/Layer 3 Lite
Management	Web-based GUI, SNMP
Dimensions	440 x 257 x 43 mm (17.32 x 10.12 x 1.69 in)
Jumbo Frame Support	Yes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	90% maximum relative humidity, noncondensing
Power Supply	Internal power supply
Power Consumption	Varies by model
Ports	24 or 48 x 10/100/1000BASE-T
Weight	3.60 kg (7.94 lb)
