Getting Started
17
S3300 Smart Managed Pro Switch

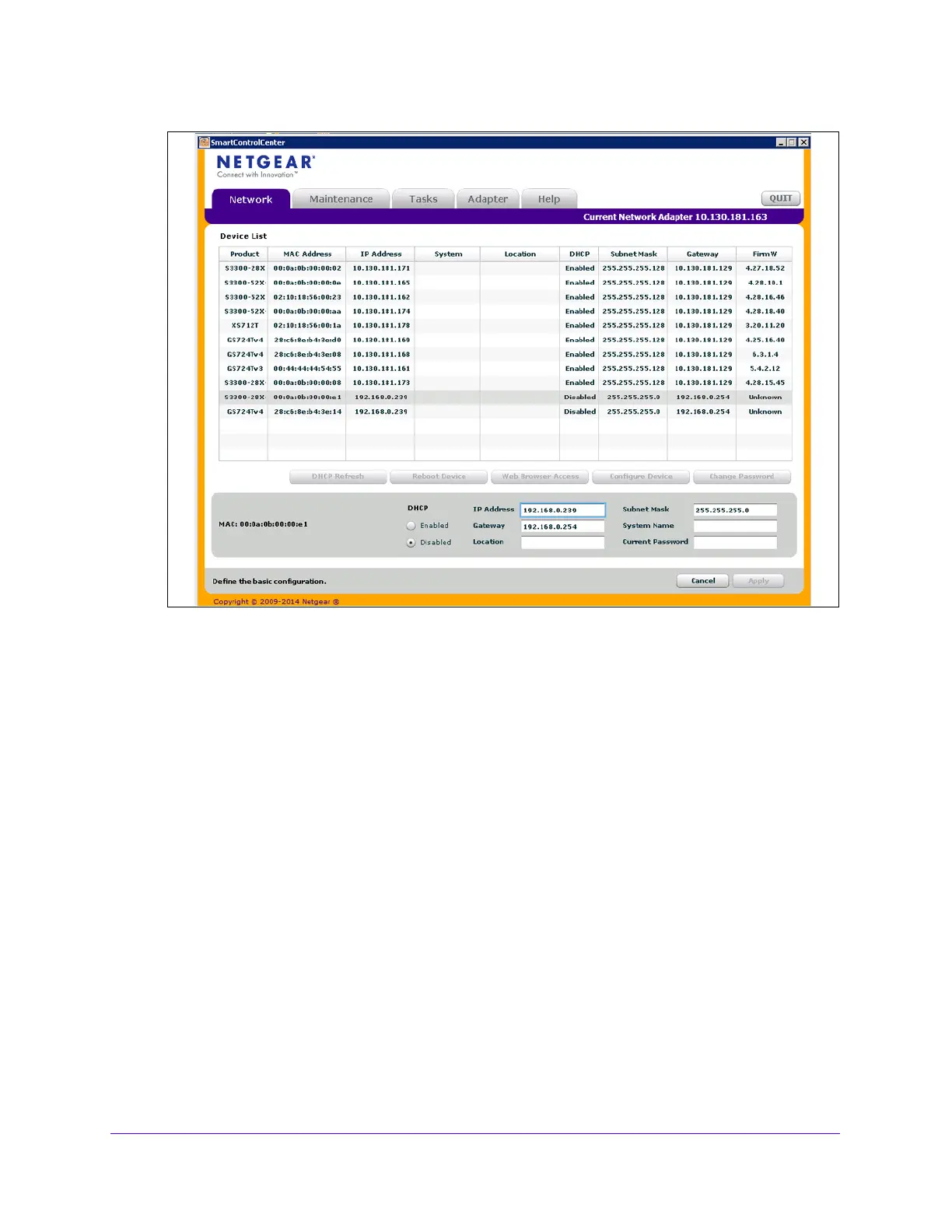

Figure 3. Smart Control Center - Configure Device
9. Type your password to continue with the configuration change.
Tip: Y
ou must enter the current password every time you use the Smart
Control Center to update the switch setting. The default password is
password.
10. Click the Ap
ply button to configure the switch with the network settings.
Ensure that your computer and the switch are in the same subnet. Make a note of these
settings
for later use.
Configure the Network Settings on the Administrative
System
If you choose not to use the Smart Control Center to configure the network information on the
switch, you can connect directly to the switch from an administrative system, such as a
computer or laptop. The IP address of the administrative system must be in the same subnet
as the default IP address on the switch. For most networks, this means you must change the
IP address of the administrative system to be on the same subnet as the default IP address
of the switch (192.168.0.239).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR S3300 and is the answer not in the manual?

NETGEAR S3300 Specifications

General IconGeneral
ModelNETGEAR S3300
CategorySwitch
VLAN SupportYes
Quality of Service (QoS)Yes
MAC Address Table Size16K
Uplink Ports4 x 10G SFP+
Switching Capacity128 Gbps
Forwarding Rate95.2 Mpps
LayerLayer 2+/Layer 3 Lite
ManagementWeb-based GUI, SNMP
Dimensions440 x 257 x 43 mm (17.32 x 10.12 x 1.69 in)
Jumbo Frame SupportYes
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-20°C to 70°C (-4°F to 158°F)
Humidity90% maximum relative humidity, noncondensing
Power SupplyInternal power supply
Power ConsumptionVaries by model
Ports24 or 48 x 10/100/1000BASE-T
Weight3.60 kg (7.94 lb)
