NETGEAR S3300 User Manual

Configuring Switching
146
S3300 Smart Managed Pro Switch
VLAN Membership Configuration
Use this screen to configure VLAN port membership for a particular VLAN. You can select the
Group operation through this screen.
 To configure VLAN membership for individual ports and LAGs:
1. Select Sw
itching> VLAN > Advanced > VLAN Membership.
2. From
the VLAN ID list, select the VLAN to which you want to add ports.
3. Click th
e Unit number icon below the VLAN Type field to display the physical ports on the
switch.
4. Click
the Unit number icon to display the LAGs on the switch.
5. T
o select the ports or LAGs to add to the VLAN, click the square below each port or LAG.
You can add each interface as a tagged (T) or untagged (U) VLAN member. A blank
squ
are means that the port is not a member of the VLAN.
• T
agged. Frames transmitted from this port are tagged with the port VLAN ID.
• Unt
agged. Frames transmitted from this port are untagged. Each port can be an
untagged member of only one VLAN. By default, all ports are an untagged member of
VLAN 1.
In the following figure, ports 8, 10, and 12 and LAG 1 are being added as tagged
members to VLAN 1.

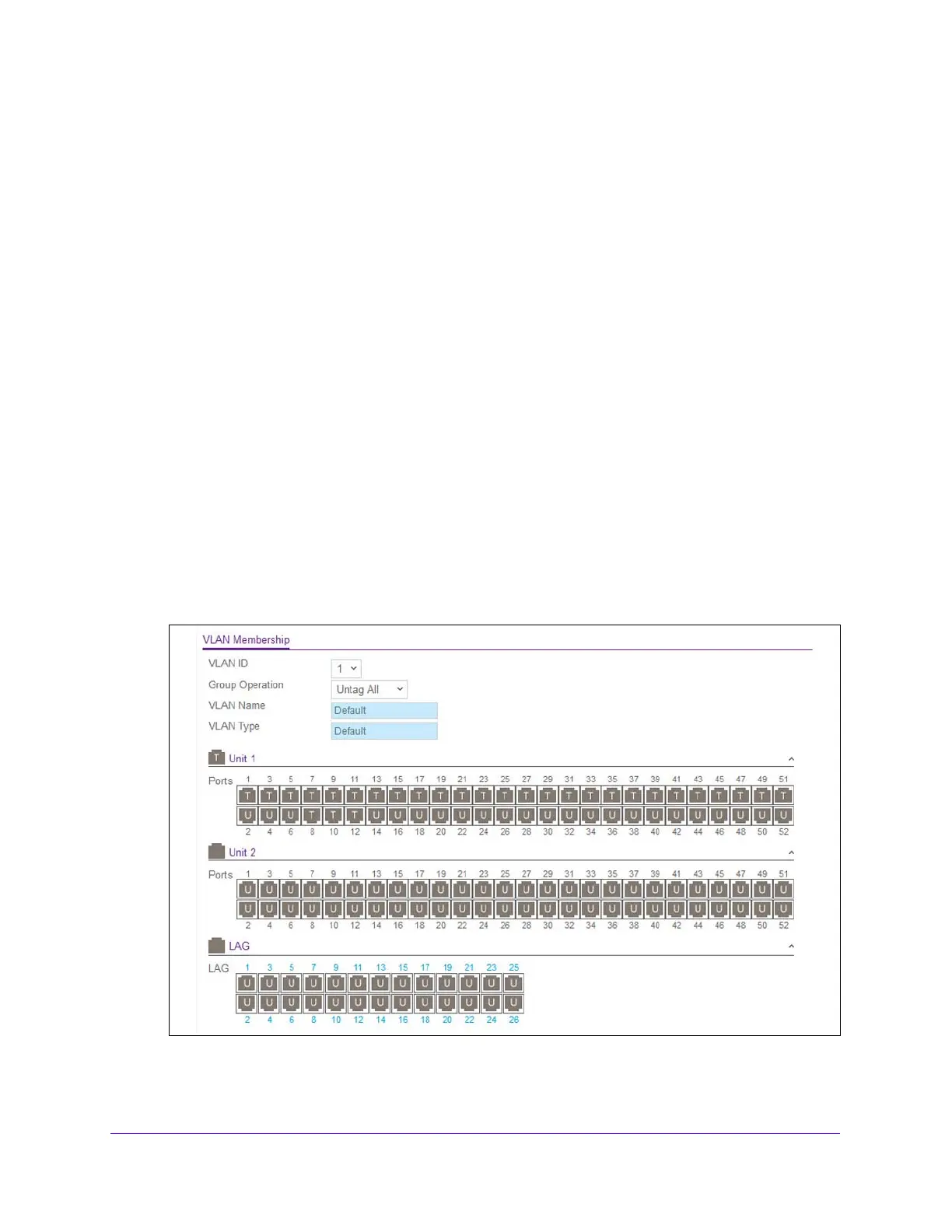

Figure 85. VLAN Membership
6. Click the Apply button.

NETGEAR S3300 Specifications

General

Model	NETGEAR S3300
Category	Switch
VLAN Support	Yes
Quality of Service (QoS)	Yes
MAC Address Table Size	16K
Uplink Ports	4 x 10G SFP+
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer	Layer 2+/Layer 3 Lite
Management	Web-based GUI, SNMP
Dimensions	440 x 257 x 43 mm (17.32 x 10.12 x 1.69 in)
Jumbo Frame Support	Yes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	90% maximum relative humidity, noncondensing
Power Supply	Internal power supply
Power Consumption	Varies by model
Ports	24 or 48 x 10/100/1000BASE-T
Weight	3.60 kg (7.94 lb)
