NETGEAR S3300 User Manual

Getting Started
14
S3300 Smart Managed Pro Switch
Discover a Switch in a Network with a DHCP Server
This section describes how to set up your switch in a network that has a DHCP server. The
DHCP client on the switch is enabled by default. When you connect it to your network, the
DHCP server will automatically assign an IP address to your switch. Use the Smart Control
Center to discover the IP address automatically assigned to the switch.
 To install the switch in a network with a DHCP server:
1. Connect the switch
to a network with a DHCP server.
2. Power
on the switch by connecting its power cord.
3. In
stall the Smart Control Center on your computer.
4. S
tart the Smart Control Center.
5. Click the Disco
ver button for the Smart Control Center to find your switch.
A screen similar to the one shown in
the following figure displays.

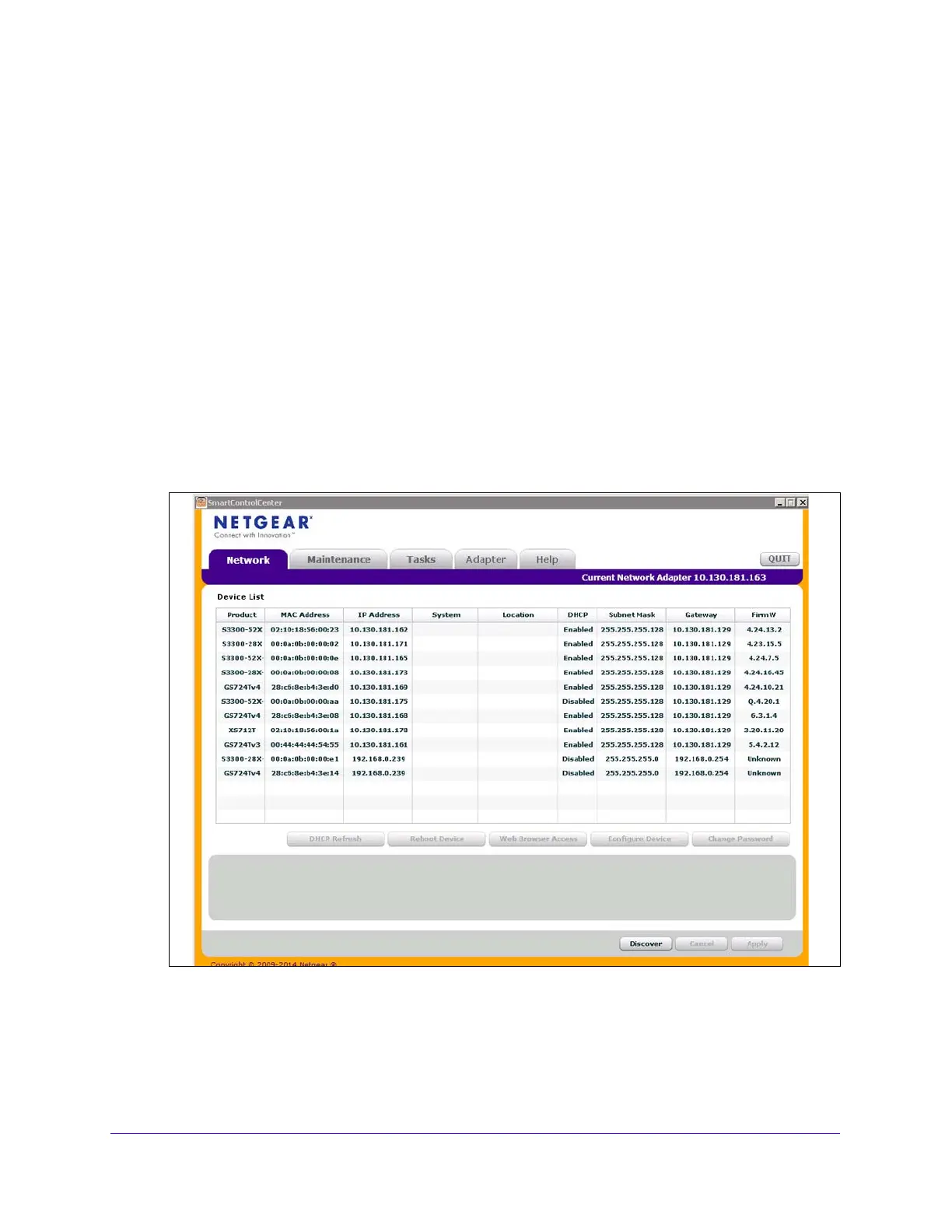

Figure 1. Smart Control Center - Discover
6. Make a note of the displayed IP address assigned by the DHCP server.
You will need this value to access the switch directly fro
m a web browser (without using
the Smart Control Center).

NETGEAR S3300 Specifications

General

Model	NETGEAR S3300
Category	Switch
VLAN Support	Yes
Quality of Service (QoS)	Yes
MAC Address Table Size	16K
Uplink Ports	4 x 10G SFP+
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer	Layer 2+/Layer 3 Lite
Management	Web-based GUI, SNMP
Dimensions	440 x 257 x 43 mm (17.32 x 10.12 x 1.69 in)
Jumbo Frame Support	Yes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	90% maximum relative humidity, noncondensing
Power Supply	Internal power supply
Power Consumption	Varies by model
Ports	24 or 48 x 10/100/1000BASE-T
Weight	3.60 kg (7.94 lb)
