NETGEAR S3300 User Manual

Configuration Examples
341
S3300 Smart Managed Pro Switch
• CoS. 0
• Des
tination MAC. 01:02:1A:BC:DE:EF
• Des
tination MAC Mask. 00:00:00:00:FF:FF
• Source MAC. 02:0
2:1A:BC:DE:EF
• Sou
rce MAC Mask. 00:00:00:00:FF:FF
• VLAN ID. 2

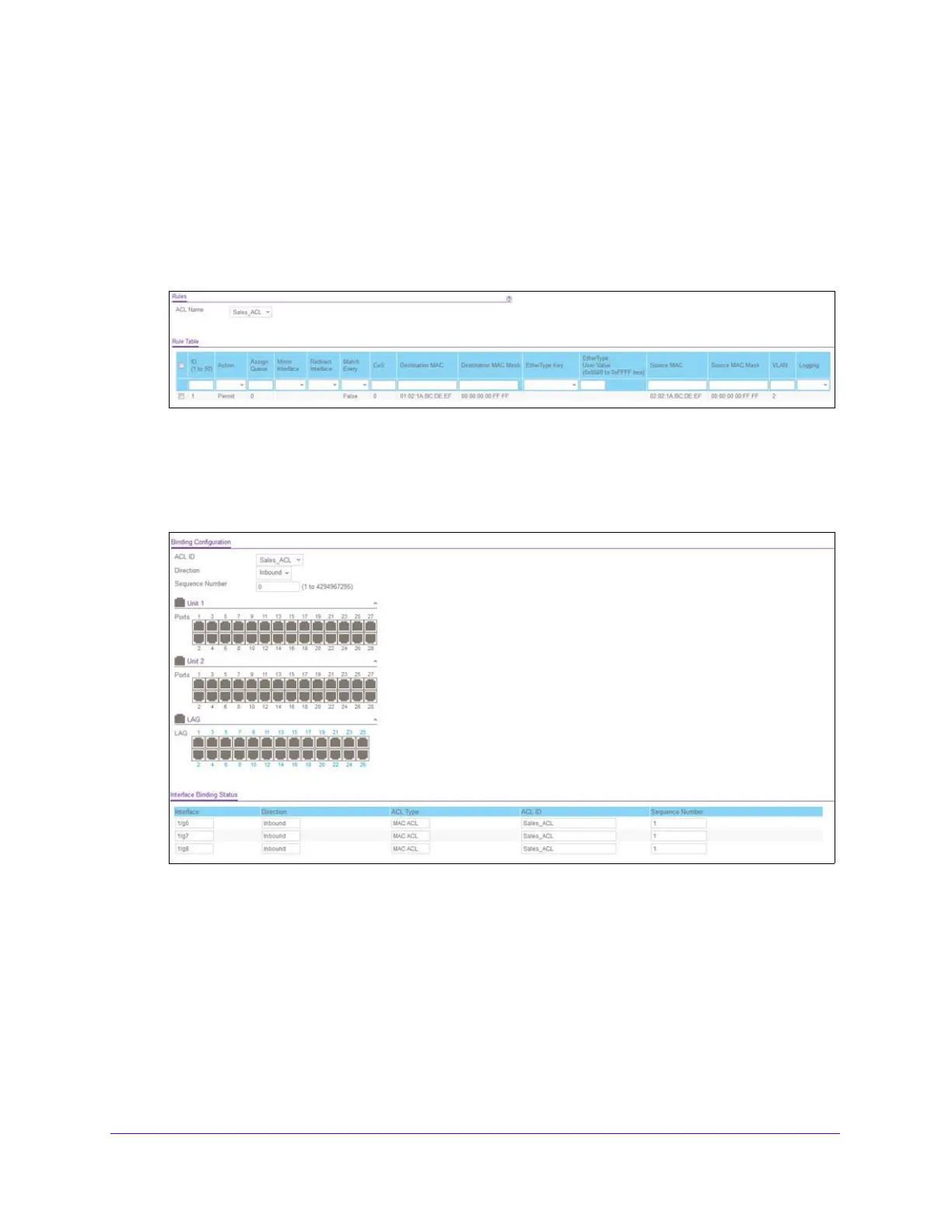

Figure 120. MAC ACL
For more information about how to perform this step, see MAC Rules on page 274.
4. From the MAC Binding
Configuration screen, assign the Sales_ACL to Ethernet ports 6, 7,
and 8.
Figure 121. MAC Binding Configuration
For more information about how to perform this step, see MAC Binding Configuration on
page 277
The ACL named Sales_ACL looks for Ethernet frames with
destination and source MAC
addresses and MAC masks defined in the rule. Also, the frame must be tagged with VLAN ID
2, which is the Sales department VLAN. The CoS value of the frame must be 0, which is the
default value for Ethernet frames. Frames that match this criteria are permitted on interfaces
6, 7, and 8 and are assigned to the hardware egress queue 0, which is the default queue. All
other traffic is explicitly denied on these interfaces. To allow additional traffic to enter these
