2-1 Features and Word Allocations
2-1-1 Features
• The PID with advanced feed-forward circuitry (2 degrees of freedom) of
the CQM1-TC20@/TC30@ assures stable temperature control. The Units
can also be set to ON/OFF control.
• Temperature Control Units are available for either 4-loop temperature con-
trol or 2-loop temperature control, and Units with 2-loop temperature con-
trol provide a heater burnout alarm. You can also select between
thermocouples or platinum resistance thermometers as the input sensors.
Temperature Control Units
Temperature Ranges
Note K (CA) = Chromel/alumel, J (IC) = Iron/constantan, T (CC) = Copper/constan-
tan, L = Iron/constantan, R = Platinum/platinum rhodium 13%, S = Platinum/
platinum rhodium 10%, B = Platinum rhodium 30%/platinum rhodium 6%
2-1-2 Word Allocations
• One word each is allocated to the Temperature Control Unit for inputs and
outputs.
• Commands are used to set and read data.
Inputs Output type
NPN outputs PNP outputs
4 loops Thermocouples CQM1-TC201 CQM1-TC202
Platinum resistance
thermometers
CQM1-TC301 CQM1-TC302
2 loops with heater
burnout alarm
Thermocouples CQM1-TC203 CQM1-TC204
Platinum resistance
thermometers
CQM1-TC303 CQM1-TC304
Thermocouples (See note.) Platinum resistance
thermometers

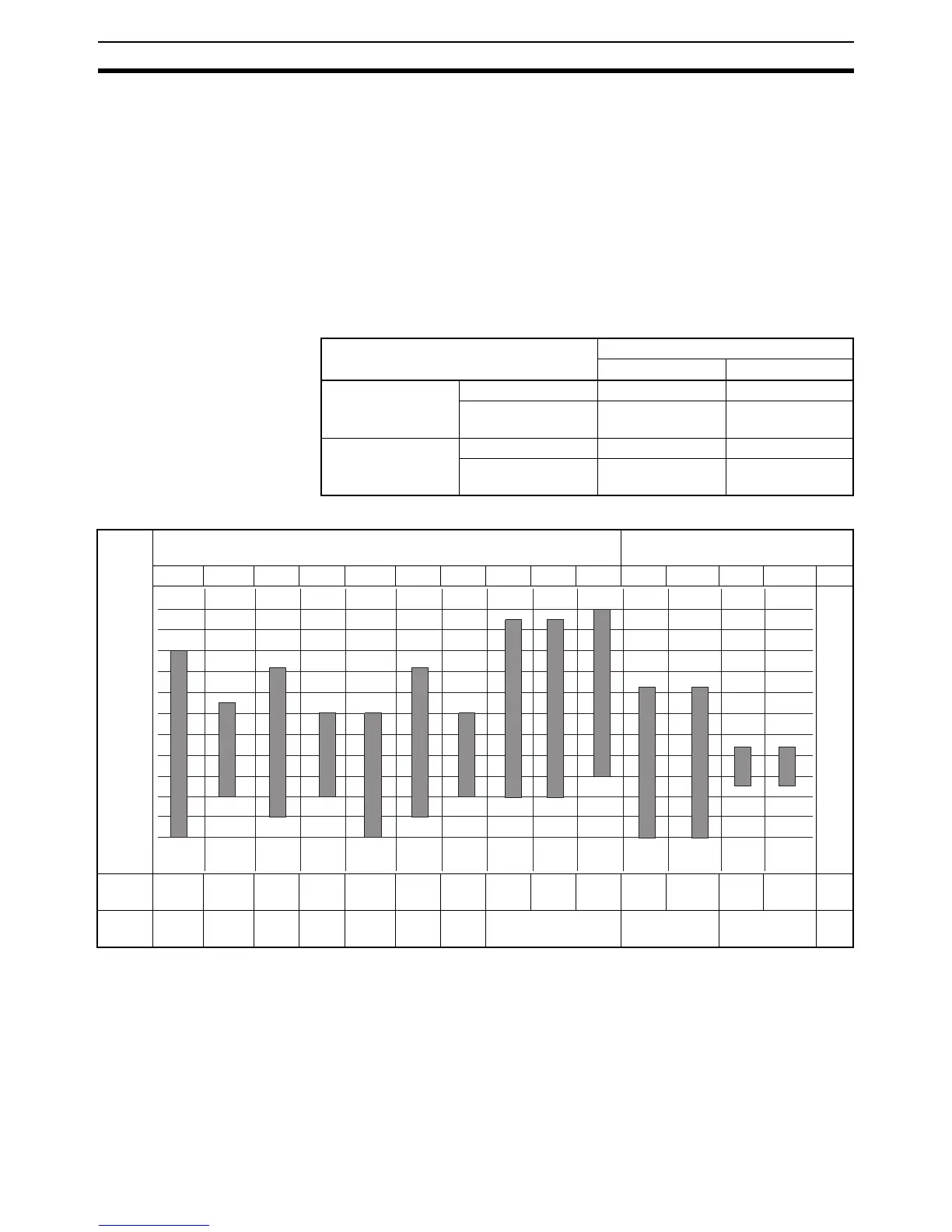

K (CA) K (CA) J (IC) J (IC) T (CC) L L R S B Pt100 JPt100 Pt100 JPt100 ---
Code
No.
0 1 234 5678901 23 4 to
9
Min.
unit
1°C0.1°C1°C0.1°C0.1°C1°C0.1°C1°C0.1°C0.01°C ---
Termperature range (degrees C)
1800
1600
1300
800
600
400
300
200
100
0
−100
−200
1300
−200
500.0
0.0
850
−100
400.0
0.0
400.0
0.0
400.0
−200.0
850
−100
1700
0
1700
0
1800
100
650.0
−200.0
650.0
−200.0
250.0
−20.0
250.0
−20.0
Do not set.
