Omron CQM1 User Manual

67
Word Allocation Section 1-4
1-3-2 Remote I/O Master
The CQM1-LK501 I/O Link Unit connects to the following SYSMAC BUS Mas-
ter Units.

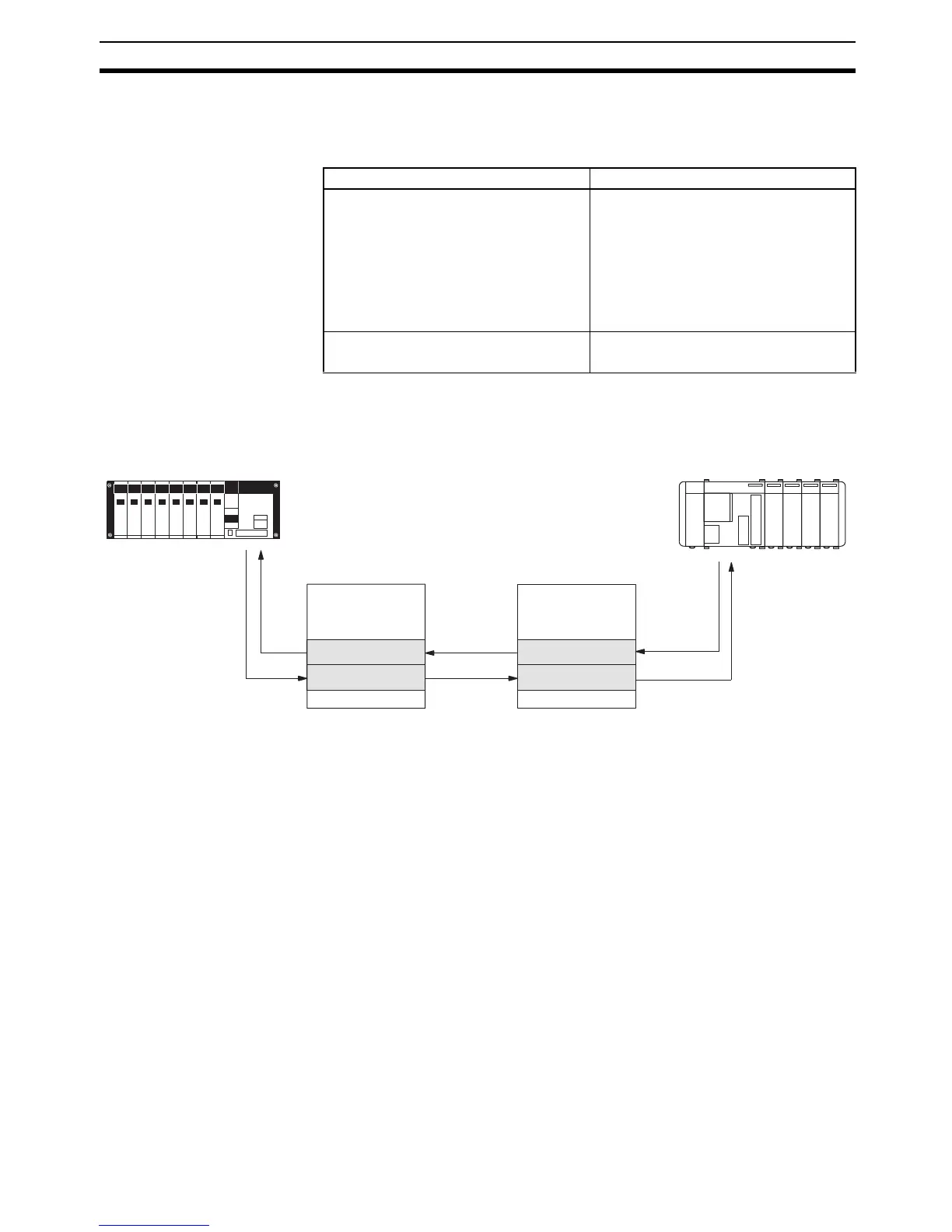

1-4 Word Allocation
The CQM1-LK501 I/O Link Unit is allocated two output and two input words.
1-4-1 CQM1H/CQM1 Word Allocation
The CQM1H/CQM1 treats the CQM1-LK501 I/O Link Unit as an I/O Unit with
two output and two input words, to which words are allocated from the left for
both input and output. Words from 000 are allocated for input and words from
100 are allocated for output.
Model PC
C500-RM201 C2000H
C1000H (F)
C500 (F)
CV2000
CV1000
CV500
CVM1
C200H-RM201 C200H/C200HS
C200HX/HG/HE
Master
Master's area
For input (reading)
For output (writing)
SYSMAC BUS
communication
For input (reading)
For output (writing)
CQM1H/CQM1's area
CQM1H/CQM1

Omron CQM1 Specifications

General

Model	CQM1
I/O Capacity	Up to 256 I/O points
Programming Language	Ladder Logic
Timer/Counter	128 timers/counters
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	24 VDC or 100-240 VAC
Communication Ports	RS-232C
Memory Capacity	3.2K words
Instruction Set	Basic and advanced instructions
Memory	RAM (battery-backed)
Program Memory	3.2K words
Storage Temperature	-20 to 75°C
