Nomenclature Section 2-1
2-1 Nomenclature

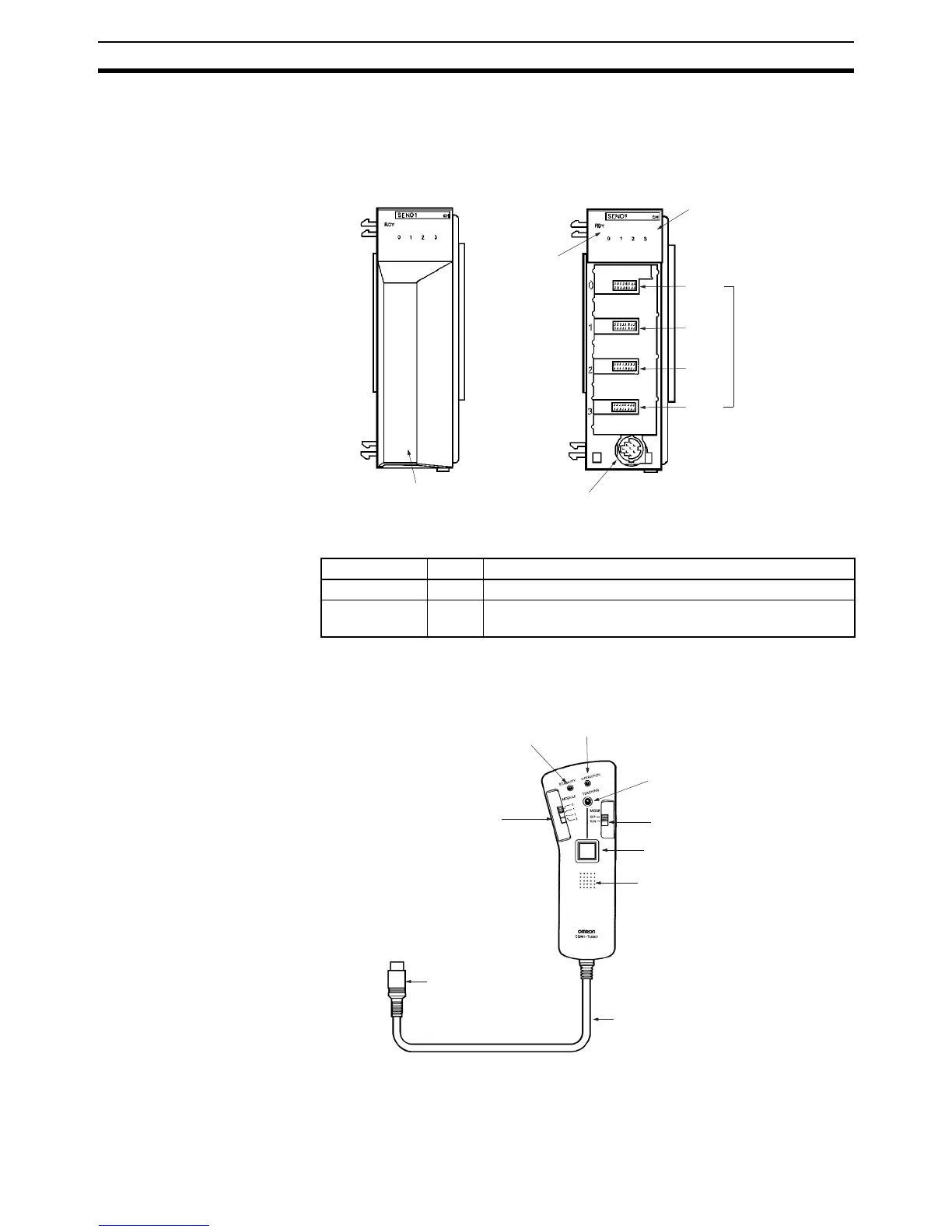

2-1-1 Sensor Unit
Indicators
2-1-2 Remote Console
Note 1. The buzzer beeps intermittently when the flashing function (refer to pages
155 and 157) of the E3X-MA11 or E3C-MA11 connected to the CQM1-
TU001 is working in teaching mode. The buzzer will stop beeping when the
Cover
Ready
indicator
(green)
Console
connector
Output indicators 0,
1, 2, and 3 (orange,
lit during operation)
Slot
0
Slot
1
Slot
2
Slot
3
Module
insertion
slots
CQM1-SEN01
Name Color Function
RDY Green Lit while the CQM1H/CQM1 is turned ON.
0 to 3 (Output) Orange Lit when the control outputs of sensor modules mounted to
the CQM1-SEN01 are ON.
Console
plug
3-m cable
Buzzer (see note 1.)
Teaching button
Mode setting selector
Teaching indicator
(red/green)
Operation indicator
(orange)
Stability operation
indicator (green)
Module selector
CQM1-TU001

Omron CQM1 Specifications

General

Model	CQM1
I/O Capacity	Up to 256 I/O points
Programming Language	Ladder Logic
Timer/Counter	128 timers/counters
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	24 VDC or 100-240 VAC
Communication Ports	RS-232C
Memory Capacity	3.2K words
Instruction Set	Basic and advanced instructions
Memory	RAM (battery-backed)
Program Memory	3.2K words
Storage Temperature	-20 to 75°C
