Connection of a Variety of Sensors Section 3-4
3-4-2 E3C-MA11 Photoelectric Module
Connection
Note 1. Strip the vinyl insulation off all the connection cords 12 mm from the ends
for the receiver and projector terminals and expose each conductor 6 mm
from the end of the conductor. Due to the small terminals, be careful not to
short the wires when wiring.
2. The length of the cable connected to the terminals of the E3C-MA11 must
be 10 m maximum without any extension terminals.

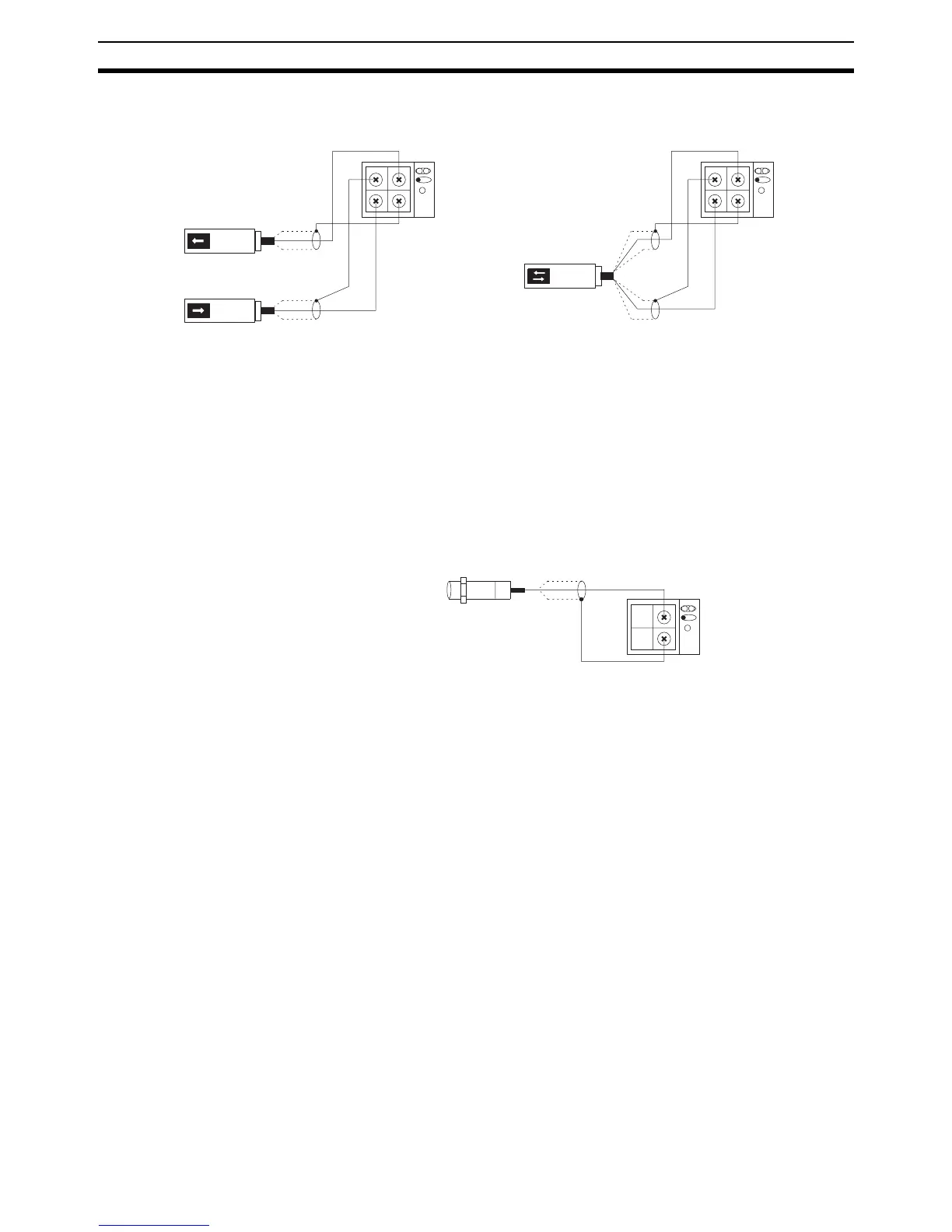

3-4-3 E2C-MA11 Proximity Sensor Module
Connection
1
2
3
4
Red
White
Thru-beam model
Shield
Shield
1
2
3
4
White
Red
Reflective model
Shield
Shield
3
4
Proximity sensor
E2C-MA11 Prox-
imity Module
Shield

Omron CQM1 Specifications

General

Model	CQM1
I/O Capacity	Up to 256 I/O points
Programming Language	Ladder Logic
Timer/Counter	128 timers/counters
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	24 VDC or 100-240 VAC
Communication Ports	RS-232C
Memory Capacity	3.2K words
Instruction Set	Basic and advanced instructions
Memory	RAM (battery-backed)
Program Memory	3.2K words
Storage Temperature	-20 to 75°C
