220
Commands and Responses Section 7-3
Response
If the correct command code is set to the output word, the command code or
parameter is set to the input word as a response.
If the wrong command code is set to the output word, the following error code
will be set to the input word.
E000: This error code will be set to the input word if a nonexisting command
code is used.
7-3-3 Operation Mode B Set
This command is used to set the following.
Input sampling speed
Number of mean value processings
Zero shift value storage area
The above items will be stored in the nonvolatile memory and will not be lost
after the Unit is turned OFF.

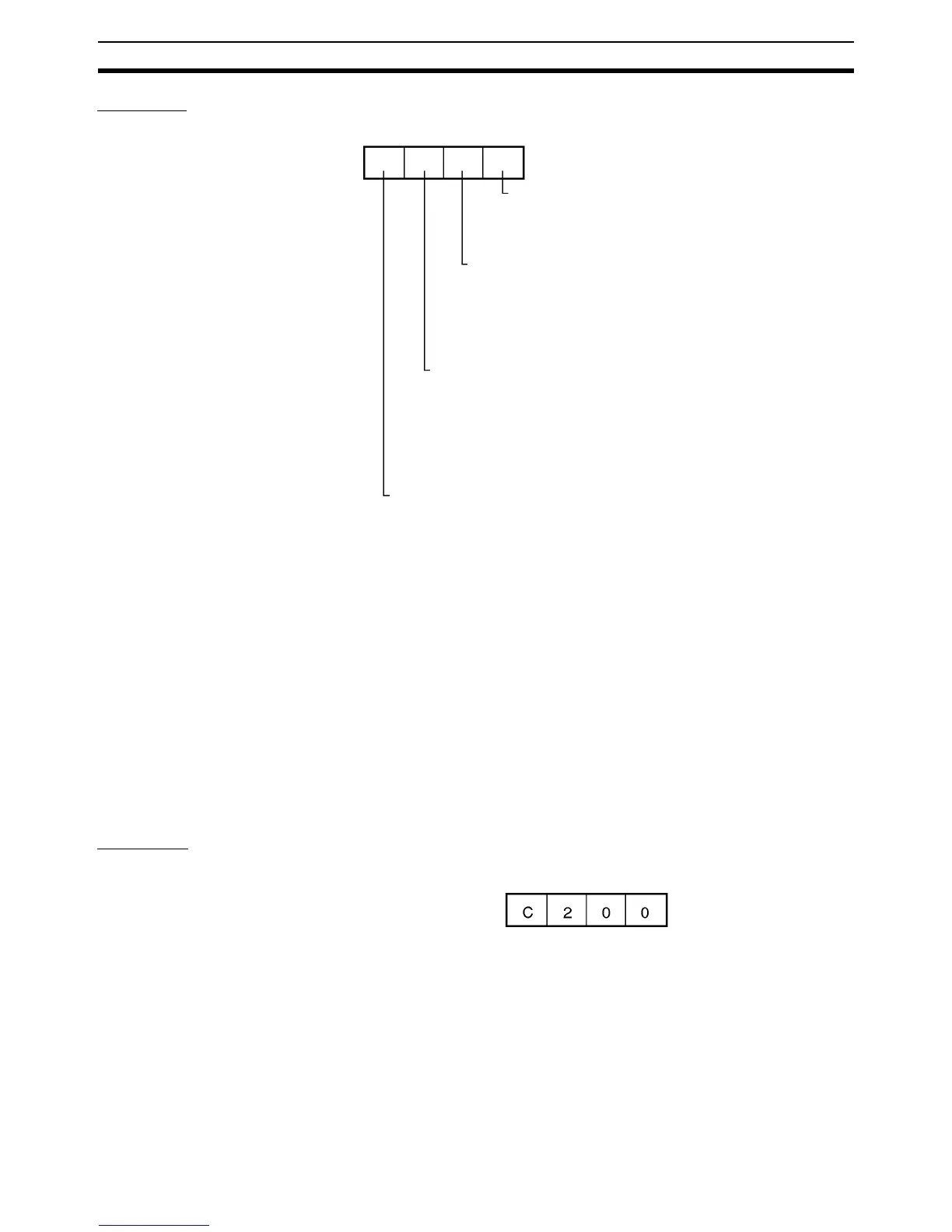

Command
Command Code
Monitor output
1: Scaled conversion data monitor mode (factory-set)
2: Set data D/A output monitor mode
Input type
0: Unchanged
1: ±9.999 V
2: ±5 V
3: 1 to 5 V
4: 4 to 20 mA
Timing hold
0: Unchanged
1: Normal
2: Sampling hold
3: Maximum hold
4: Minimum hold
5: Peak-to-peak hold
Data input
0: Unchanged
1: Measurement mode
2: Comparison mode
