Settings Section 3-1
3-1 Settings

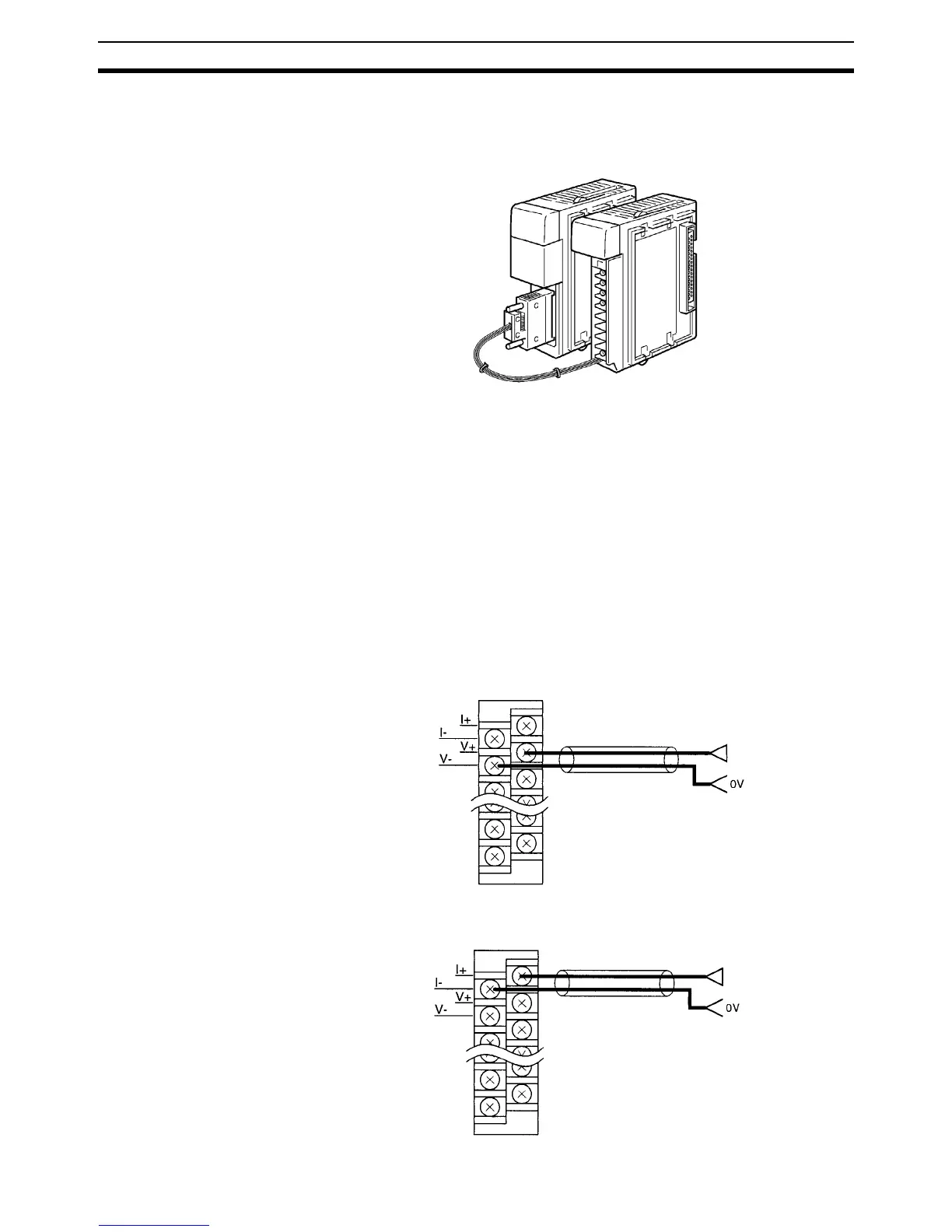

3-1-1 Cable Connections
• Connect the power supply cable of the Analog Output Unit to the power
supply connector of the Analog Power Supply Unit and secure the power
supply cable connector with screws.
• The CQM1-IPS02 incorporates two power supply connectors. The power
supply cable of the Analog Output Unit can be connected to either one of
the power supply connectors.
• Refer to the CQM1H Operation Manual (W363) or the CQM1 Operation
Manual (W226) for details on connecting an Analog Output Unit and Ana-
log Power Supply Unit.
Note Do not pull the power supply cable, or the power supply cable may be broken
or connector may be disconnected.
3-1-2 Wiring
Voltage Output
Current Output
Analog Output Unit Terminals
Analog Output Unit Terminals
