Appendix C
Data Processing Timing
Sampling
The Unit processes input data in the following two blocks.
A: Input sampling time = Sampling period x No. of mean value processings
B: Operation process and data set to the data input word
The Unit has the following two sampling periods.
Fast: 1 ms (with 0.3-ms sampling time)
Slow: 2 ms (with 0.6-ms sampling time)
The necessity of the sampling hold process depends on the timing hold.
Sampling Example

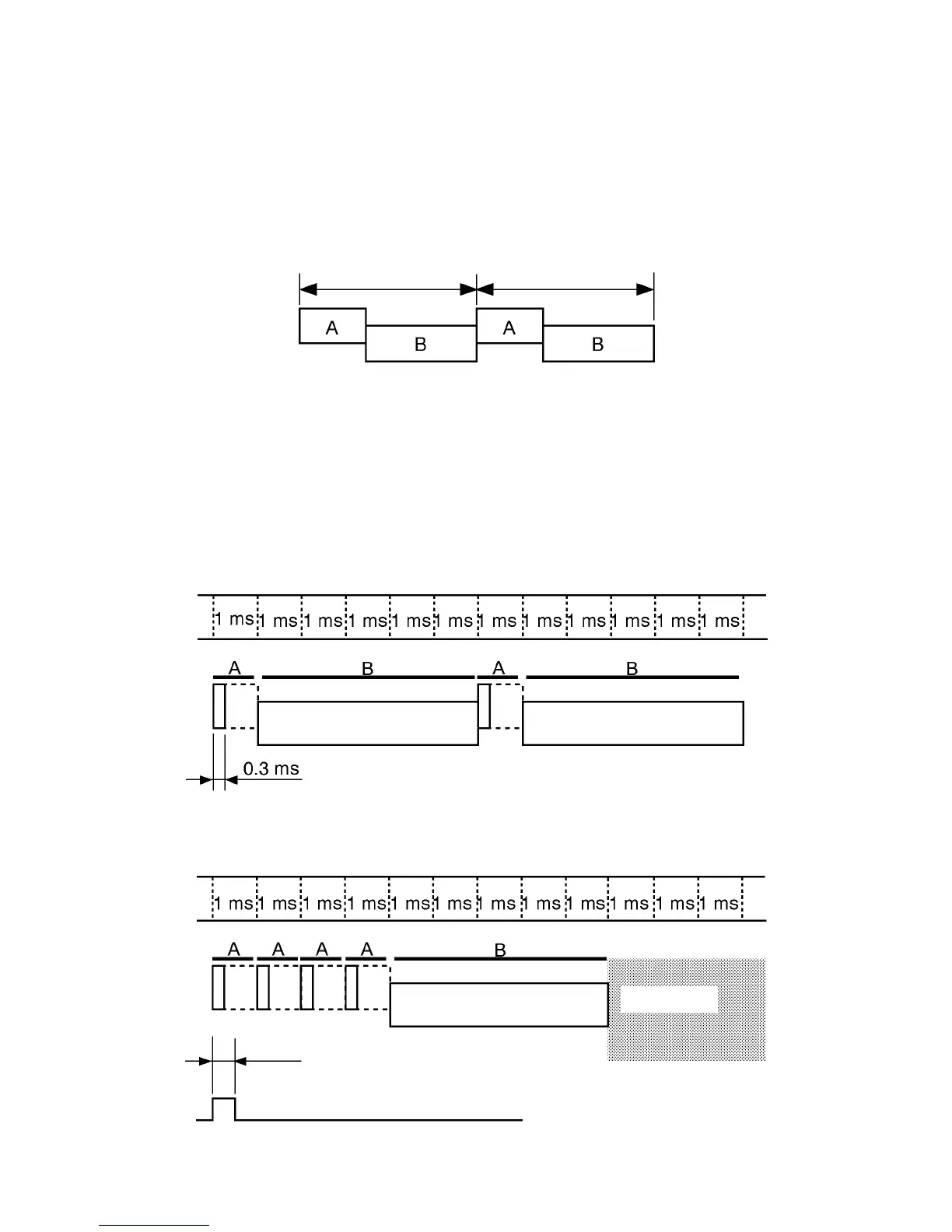

The following are typical sampling timing examples.
Example 1 Timing Hold: Normal
No. of Mean Value Processings: 1
Input Sampling Speed: Fast
Example 2 Timing Hold: Sampling hold
No. of Mean Value Processings: 4
Input Sampling Speed: Fast
Data processing Next data processing
Timing input
0.05 ms min.
Waiting for next
timing input
